Apach SQ SA20s [35/39] Hydraulic system group
![Apach SE SA37 [35/39] Hydraulic system group](/views2/1897349/page35/bg23.png)
38

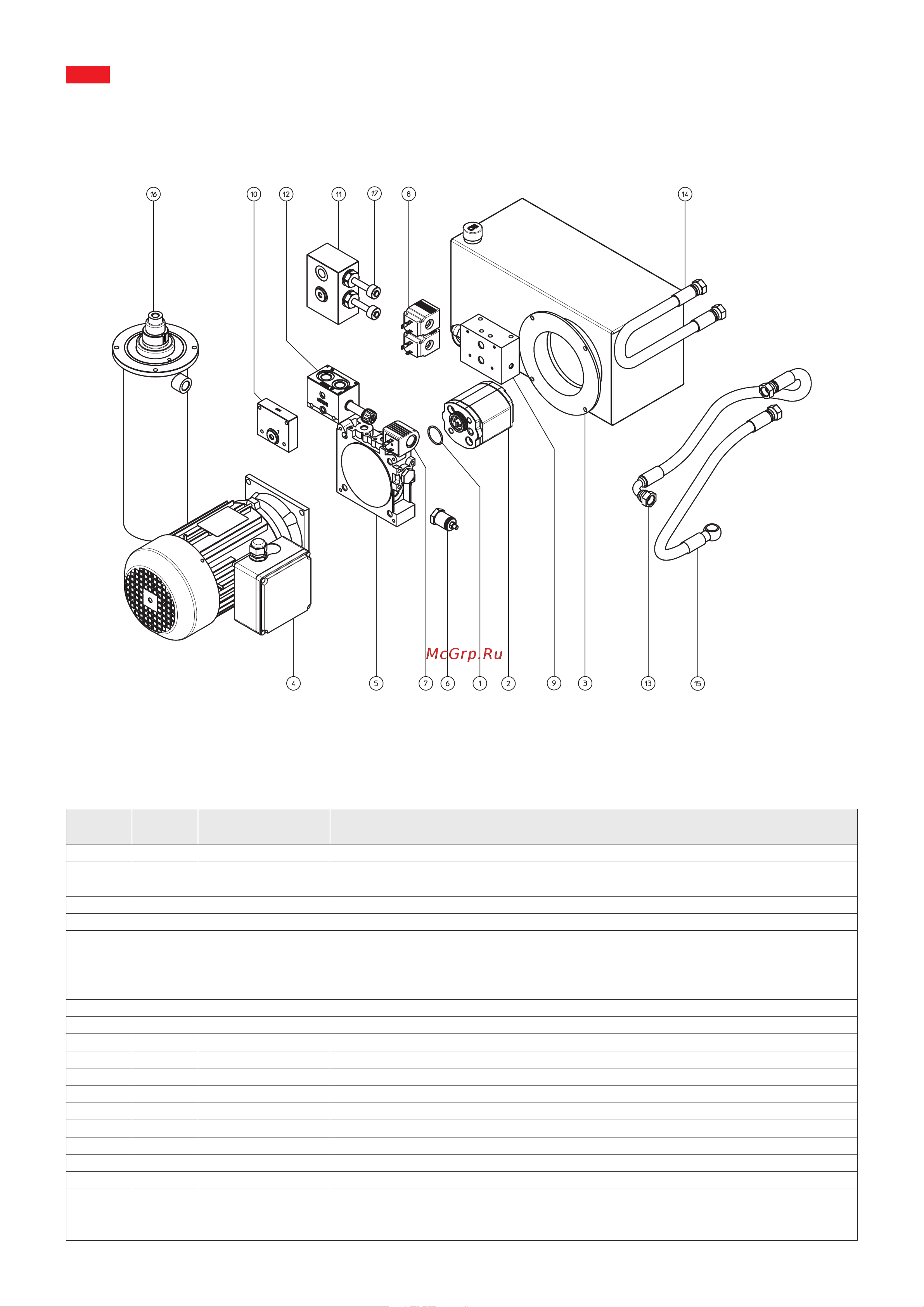

HYDRAULIC SYSTEM GROUP
POSITION QUANTITY CODE DESCRIPTION
1 1 38693106 OR SEAL 3106
2 1 50970002 PUMP MOD. K1P D 15 G P199
2 1 50970003 PUMP MOD. “T” PHC 1—6,0 X MC (MOTOR MONOPHASE)
3 1 60060004 OIL TANK
4 1 45200002 MOTOR THREE PHASES 230-400/3/50-60 STANDARD
4 1 45220002 MOTOR THREE PHASES UL 230/3/60
4 1 45120002 MOTOR MONOPHASE UL 230/1/60
4 1 45150002 MOTOR MONOPHASE UL 110/1/60
5 1 28320006 HYDRAULIC BODY
6 1 30900001 VALVLE
7 1 17500001 COIL A0924DDC STANDARD
7 1 17500004 COIL A0924VDC-27W M UL
8 2 17500003 COIL 24VDC - 18W STANDARD
8 2 17500005 COIL 24VDC-EC360 22W UL
9 1 28320002 INTERFACE BLOCK
10 1 28320004 BLOCK FU31
11 1 28330001 INTERFACE BLOCK
12 1 31770009 PARALLEL COMPONIBLE DISTRIBUTOR
13 1 66950006 PIPE R1T 3/8”” FD+F90
14 1 66950008 PIPE R1T 3/8”” FD+FD
15 1 66950009 PIPE R1T 3/8”” OC+FD
16 1 23700002 HYDRAULIC CYLINDER
17 1 19800002 CARTRIDGE DOUBLE SEAL
