Apach SQ SA20s [32/39] S div knife group cod tg000037
![Apach SQ SA20s [32/39] S div knife group cod tg000037](/views2/1897349/page32/bg20.png)
35

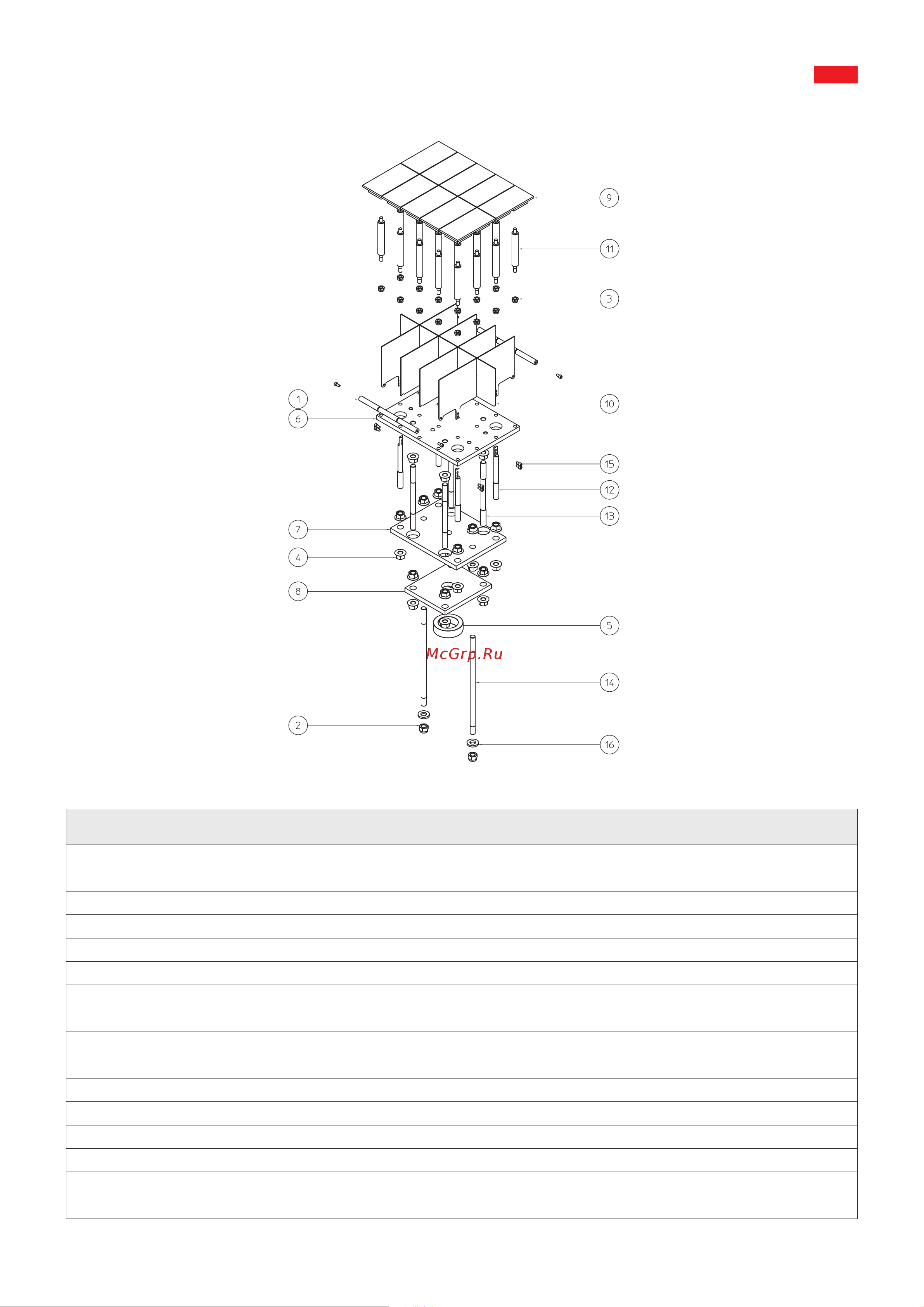

POSITION QUANTITY CODE DESCRIPTION
1 2 14800017 ROD
2 2 30081601 SELFLOCKING NUT M16 ZINC.
3 20 30091001 NUT SELFLOCKING M10 ZINC.
4 24 30191601 NUT M16 ZINC.
5 1 30860007 CYLINDER RACING SPACER
6 1 49420159 PRESS SUPPORT PLATE
7 1 49420160 KNIFE SUPPORT PLATE
8 1 49420161 PRESS SUPPORT GUIDE ROD PLATE
9 10 52600021 PRESS PLATES
10 1 60040164 KNIFE
11 20 62000006 PRESS PLATE SUPPORT
12 4 65810010 CUTTING KNIFE SUPPORT SHAFTS
13 4 65810011 PRESS SUPPORT PLATE GUIDE RODS
14 2 65810012 FIXED LIMIT ROD
15 12 69280612 SCREW TCEI M6X12 INOX
16 2 59091635 WASHER D.16X35 SP. 5 ZINC.
10s DIV. KNIFE GROUP COD. TG000037
