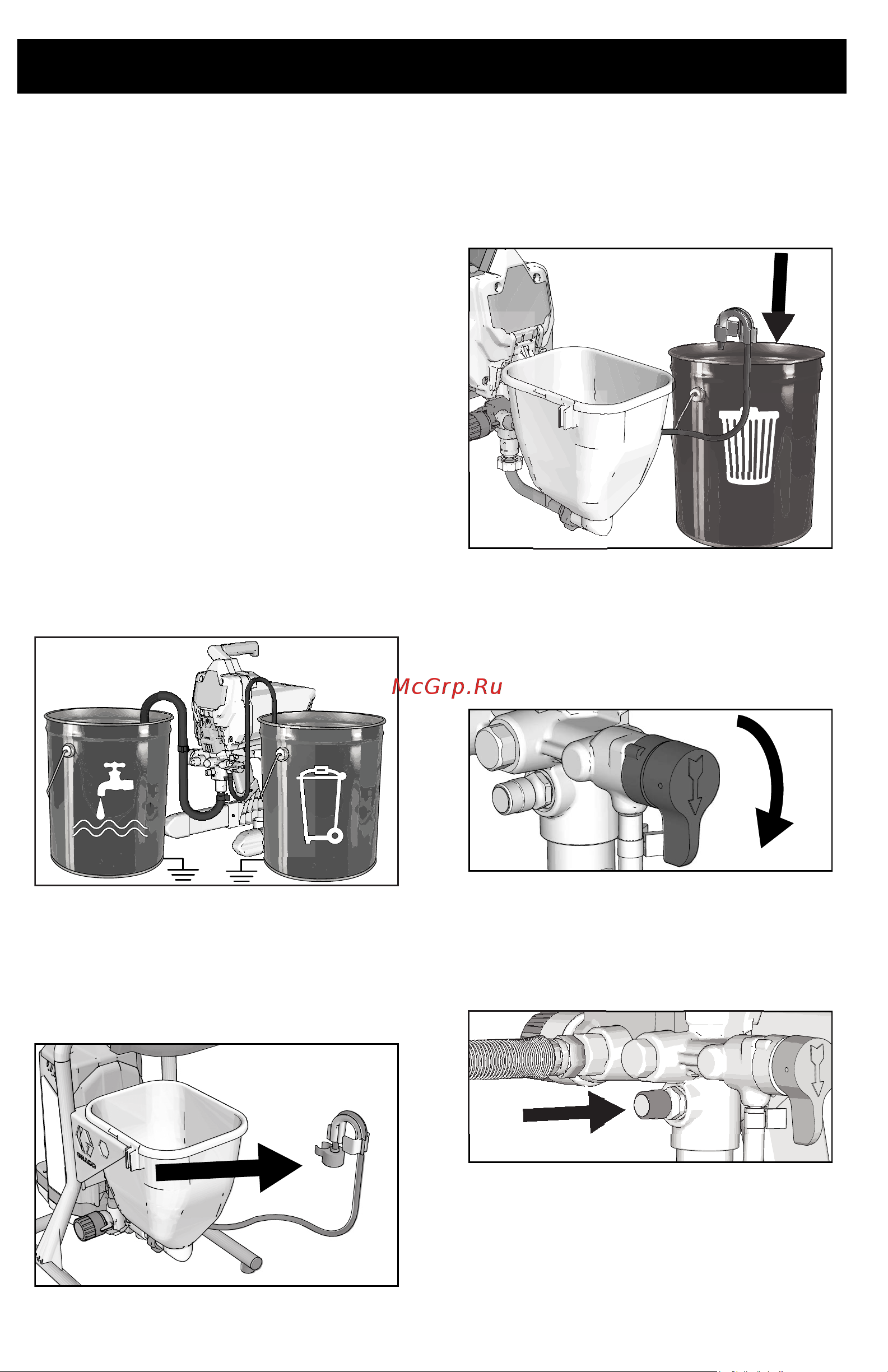

Start Up
12 3A3237D
Flush Storage Fluid
This sprayer arrives from the factory with a
small amount of test material in the system. It
is important that you flush this material
from the sprayer before using it for the first
time. See
Cleaning Fluid Compatibility
,
page 26 and
Static Grounding Instructions
(Oil-Based materials)
, page 26 for additional
information when using oil-based materials.
1. Perform Pressure Relief Procedure,
page 11.
2. Make certain ON/OFF switch is OFF.
3. Separate drain tube (smaller) from suc-
tion tube (larger) or hopper.
Stand Models
4. Place drain tube in a waste pail.
5. Submerge suction tube in a pail par-
tially filled with water or flushing fluid.
Hopper Models
6. Lift drain tube with retainer off the hop-
per.
7. While holding the drain tube retainer
with drain tube parallel to the top of a
grounded waste pail twist retainer over
the lip of the pail. Drain tube should
now be inside the waste pail.
8. Pour approximately two quarts (two
liters) of water or flushing fluid into the
hopper.
9. Turn Prime/Spray valve down to PRIME
position.
10. Plug power supply cord into a properly
grounded electrical outlet.
11. Press PushPrime button twice to
loosen inlet ball.
12. Align setting indicator with Prime/Clean
setting on pressure control knob.
ti27467a
2
65ati27
2
ti27335a
ti27120a
t
i
271
36a
