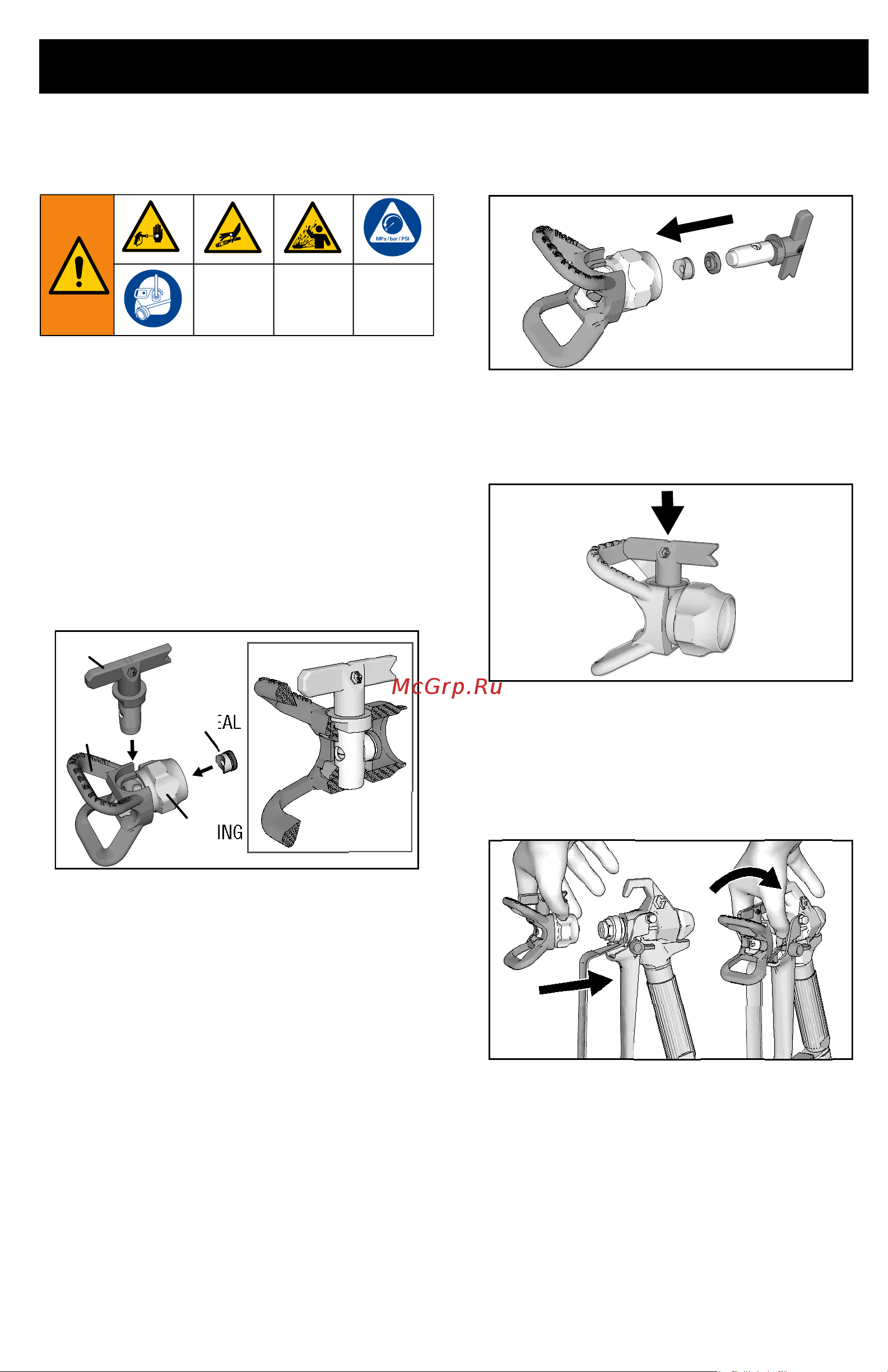

How to Spray
3A3237D 15
How to Spray
Spray Tip Installation
To prevent spray tip leaks make certain spray
tip and tip guard are installed properly.
1. Perform Pressure Relief Procedure,
page 11.
2. Engage trigger lock.
3. Verify spray tip and tip guard parts are
assembled in the order shown.
a. Use spray tip to align gasket and
seal in the tip guard.
b. Spray tip must be pushed all the way
into the tip guard. Turn spray tip to
push down.
c. Turn the arrow shaped handle on
the spray tip forward to the spray
position.
4. Screw spray tip and tip guard assembly
onto the gun and tighten.
TIP
GUARD
RETAINING
NUT
RUBBER
GASKET/
METAL SEAL
SPRAY
TIP
ti2714
0a
ti
2714
3a
ti
2714
5a
ti27480a
