Cleanup
3A3237D 21
19. Turn Prime/Spray valve down to PRIME
position.
20. Turn ON/OFF switch to OFF position.
21. Clean filter see Cleaning InstaClean
™
Fluid Filter, page 23.
22. Fill unit with Pump Armor
™
storage
fluid. See Maintenance, page 29.

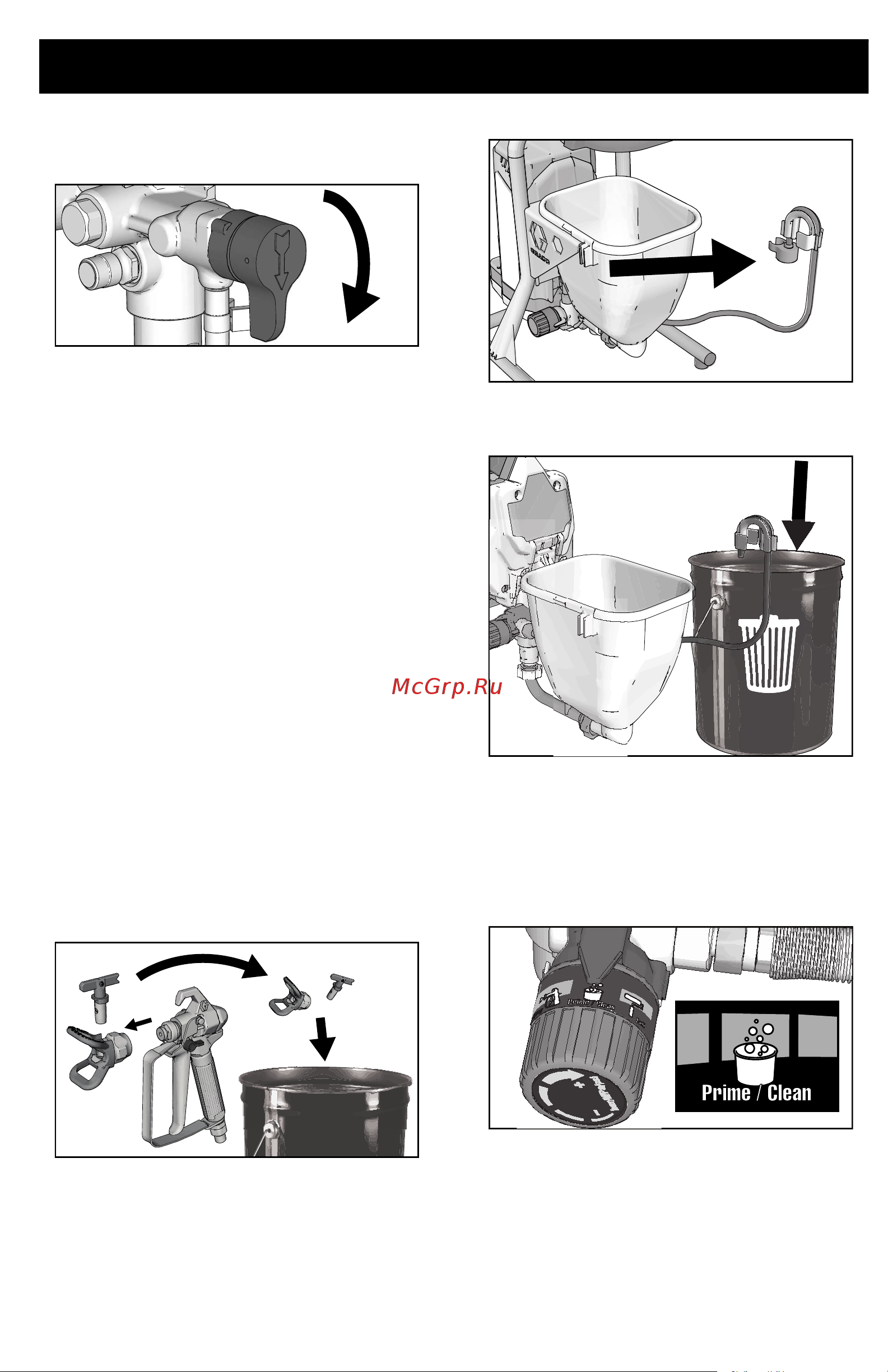

Hopper Flushing
(ProS21 Only)
• For flushing after spraying oil-based
coatings, use compatible oil-based
flushing fluid or mineral spirits. See
Start Up, page 11.
• For flushing after spraying water-based
coatings, use water. See Start Up,
page 11.
1. Perform Pressure Relief Procedure,
page 11.
2. Perform Maintenance, page 29.
3. Remove tip guard and Spray Tip. For
additional information, see separate
gun manual.
4. Remove drain tube from paint hopper,
wipe excess paint off outside.
5. Place drain tube in waste pail.
6. Pour flushing fluid into the hopper. Use
water for water based paint and mineral
spirits for oil-based paint.
7. Turn pressure control knob to the
Prime/Clean setting.
8. Turn ON/OFF switch to ON position.
9. Flush until approximately 1/3 of the
flushing fluid is emptied from the hop-
per.
10. Turn ON/OFF switch to OFF position.
ti27120a
ti27152a
2
65ati27
2
ti27335a
ti27135a
