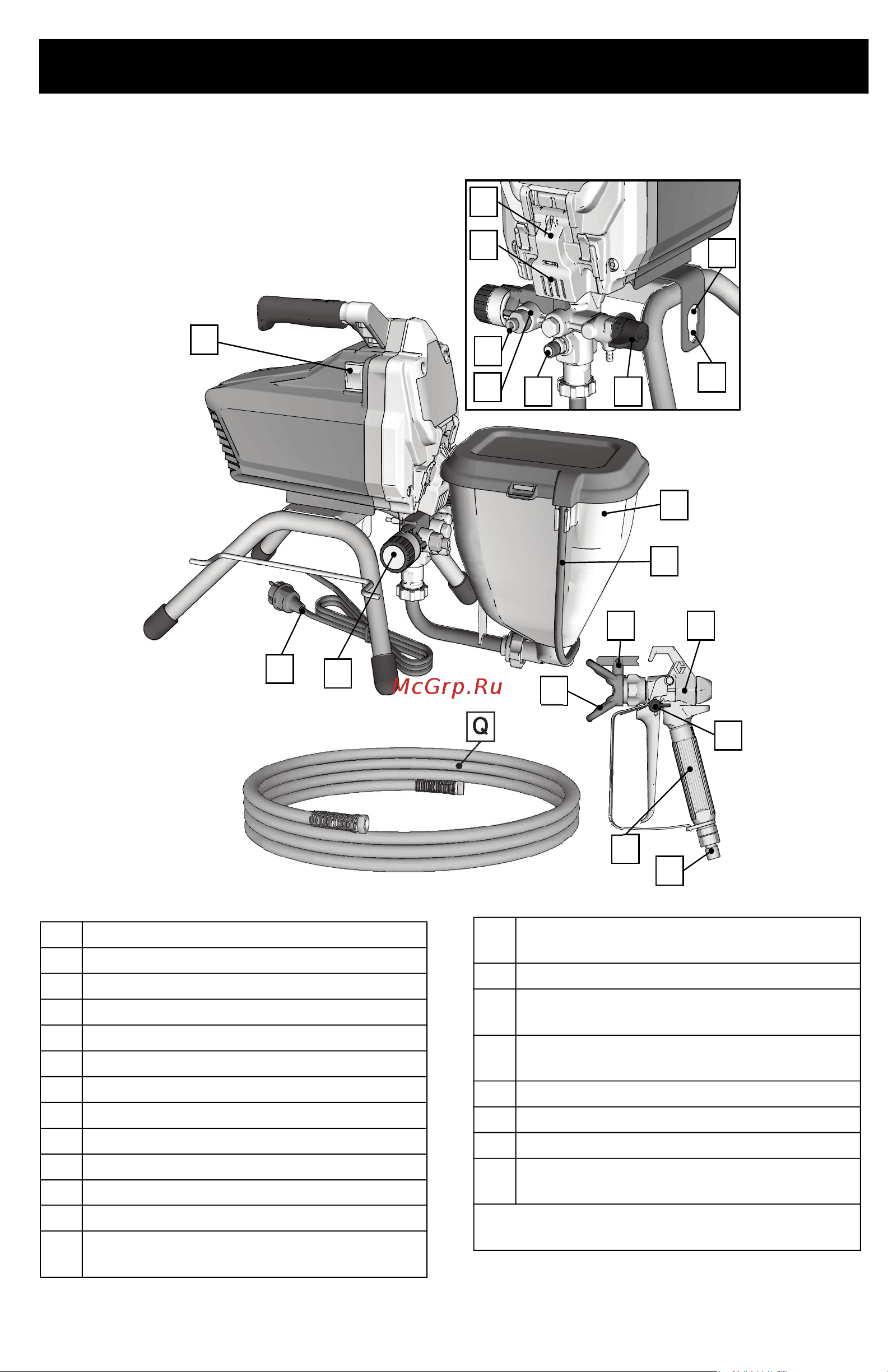

Know Your Sprayer
3A3237D 9
ProS21
D
U
L
M
ti27286a
J
H G
Q
K
A
E
F
X
Z
V
N
B
P
R
C
A Prime/Spray Valve
B PushPrime Button
C Pressure Control Knob
D ON/OFF Switch
E Hopper
F Drain Tube (with diffuser)
G Airless Spray Gun FTX
H Reversible Spray Tip, Fine Finish
J Tip Guard
K Gun Trigger Lock
L Gun Fluid Inlet Fitting
M Gun Fluid Filter (inside handle)
N ProXChange Pump (behind Easy
Access Door)
P Pump Fluid Outlet Fitting (airless
hose connection)
Q Airless Hose
R InstaClean Fluid Filter (inside fluid
outlet)
T Inlet Strainer, inside hopper not
shown
U Power Cord
V Easy Access Door
X/Z Pump & Inlet Valve Removal Tool
Model/Serial Tag (Not shown, located
on bottom of unit.)
See Quick Reference, page 28 for more
information.
