Graco Reactor 2 E-30 FP2011 [57/114] Installation
![Graco Reactor 2 E-30 AP2011 [57/114] Installation](/views2/1900220/page57/bg39.png)
Repair
Installation Installation
Installation
1.Applyheavydutyextremepressuregrease
liberallytowashers(107,108,118),allgears,
andinsidedrivehousing(102).
2.Installonebronzewasher(108)indrivehousing,
theninstallsteelwashers(107,118)asshown.
3.Installsecondbronzewasher(108)ongear
cluster(104)andinsertgearclusterindrive
housing.
Note
Drivehousingcrankshaftmustbeinline
withcrankshaftatotherendofmotor.
4.Pushdrivehousing(102)ontomotor(101).
Installscrews(112)andwashers(114).
Note
Ifbearinghousing(103),connectingrod
(105),orpump(106)wereremoved,
reassemblerodinhousingandinstall
pump,seeInstallPump,page55.
5.Routecyclecounterswitchcable(121)around
themotorfanandreattachtohousing(102)with
screws(122).
6.Installbearinghousing(103),screws(113),and
washers(114).Pumpsmustbeinphase(bothat
samepositioninstroke).
7.Installcover(60)andscrews(21).
8.Installmotorshield(11)andscrews(21).

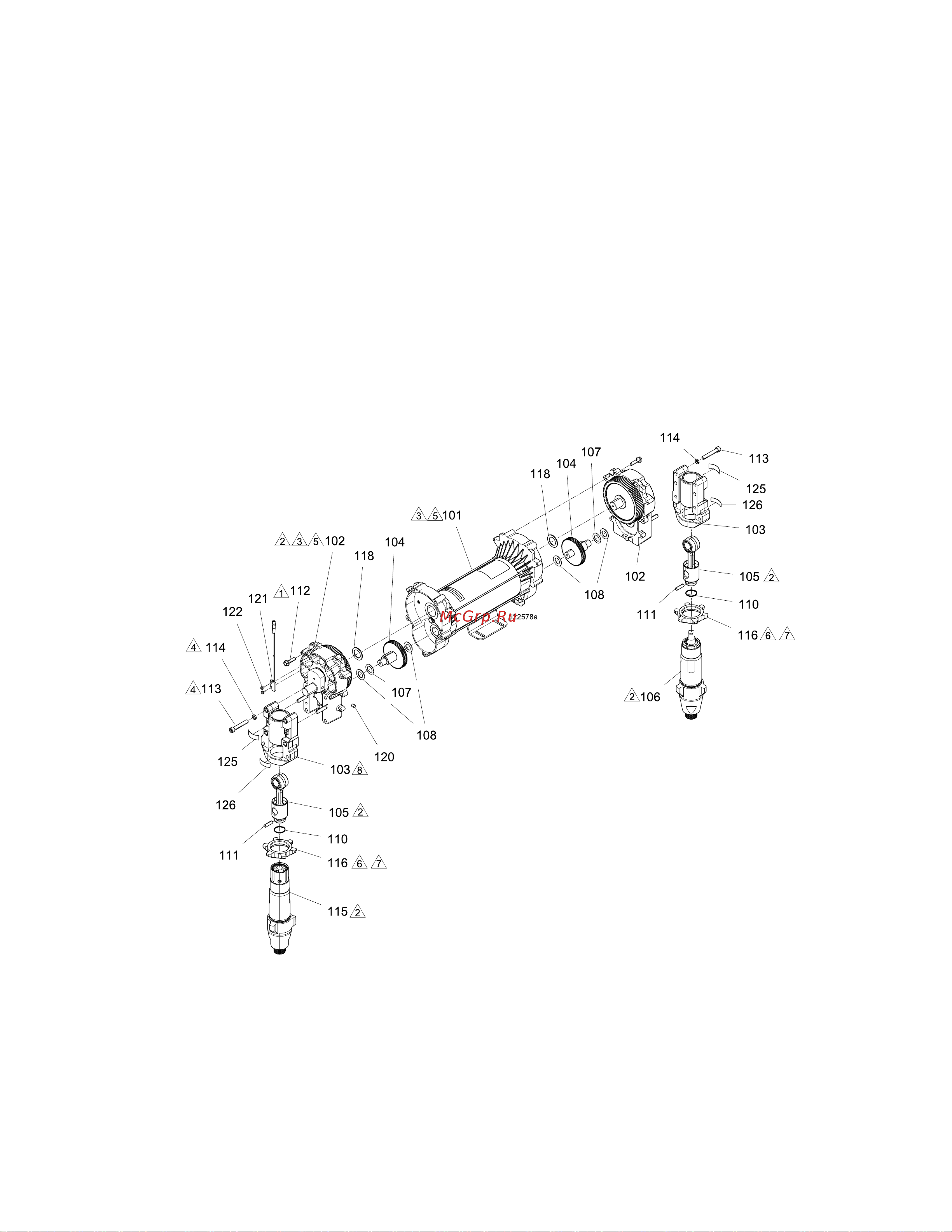

Figure5
333024T 57
