Parts
RefPart
DescriptionQty
501
16U529
HARNESS,breaker
module1
502
16V515
HARNESS,hoseout
1
503
16U522
MODULE,dinrail,term
blk,powersup;see
SystemCircuitBreaker
Module,page100
1
RefPart
DescriptionQty
504
16U526
MODULE,dinrail,
circuitbreakers;see
PowerSupplyand
TerminalBlockModule,
page100
1
505
16U530
MODULE,syssurge
protector
1

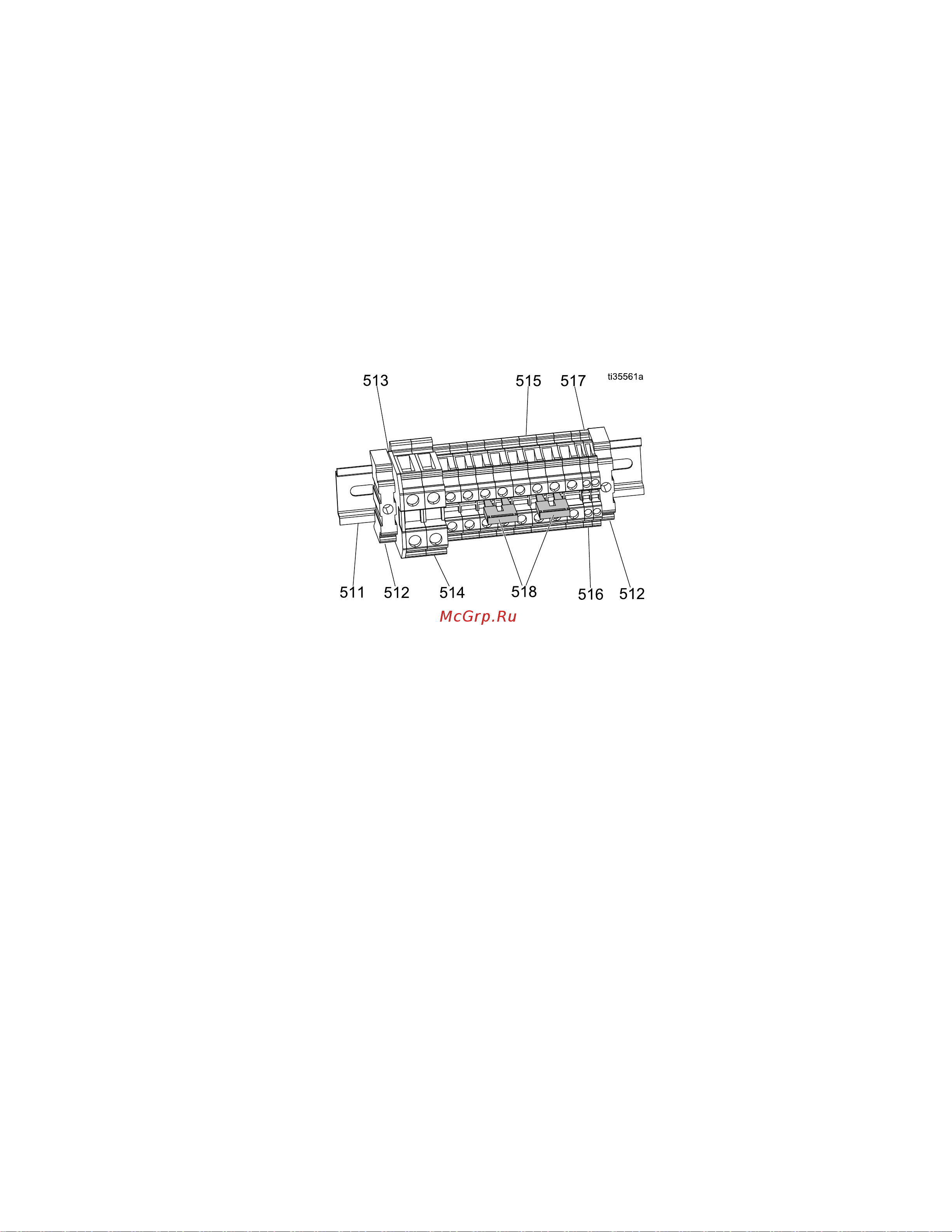

Heater Heater
Heater
and and
and
Transformer Transformer
Transformer
Terminal Terminal
Terminal
Block Block
Block
Module Module
Module
24U849 24U849
24U849
RefPart
DescriptionQty
511
24T315RAIL,DIN;35mmx7.5
mmx7in.
1
512126811
BLOCK,clamp,end
2
513126383
COVER,end
1
514126382
BLOCK,terminal
2
515120570
BLOCK,terminal
6
516
24R758
BLOCK,terminal,
UT-2.5,red
1
517
24R759
BLOCK,terminal,
UT-2.5,black
1
RefPart
DescriptionQty
518*
120573
BRIDGE,jumper
2
*Jumpersareusedtoselectthewattage
oftheelectricheatersusedinyour
proportioningsystem.Whenthe
IntegratedPowerStationaccessoryis
installed,thejumpersareremoved.
333024T 99
