Repair
Replace Replace
Replace
Motor Motor
Motor
Control Control
Control
Module Module
Module
(MCM) (MCM)
(MCM)
1.PerformShutdown,page46.
2.DisconnectconnectorsfromMCM(63).
Disconnecttwopowercables.See
ElectricalSchematics,page103.
3.Removenuts(91)andMCM(63).
4.Setrotaryswitch.2=E–30and3=E-XP2.
5.ReplaceMCMinenclosure.
6.ConnectcablestoMCM.See
ElectricalSchematics,page103.

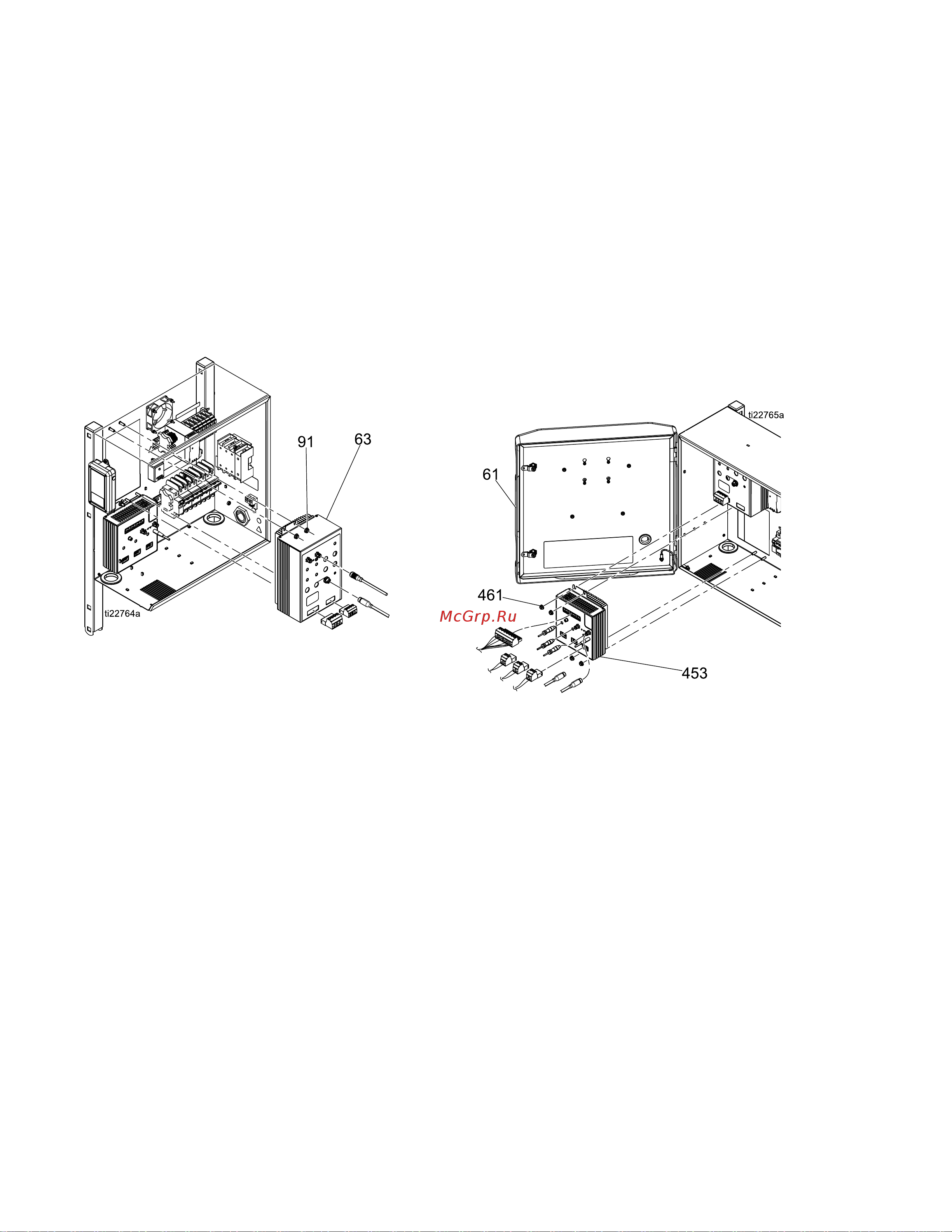

Figure20ReplaceMCM
Replace Replace
Replace
Temperature Temperature
Temperature
Control Control
Control
Module Module
Module
(TCM) (TCM)
(TCM)
1.PerformShutdown,page46.
2.Openelectricalenclosuredoor(61).
3.DisconnectallconnectorsfromtheTCM(453).
4.Removefournuts(461)andTCM(453).
5.InstallnewTCMmodule(453).Reassemble
partsinreverseorder.
6.Updatesoftwarebyinsertinganupgradetoken
intotheADMandcyclingsystempower.Wait
untiltheupdateiscompletebeforeremovingthe
tokenandrestartingthesystem.
Figure21ReplaceTCM
76 333024T
