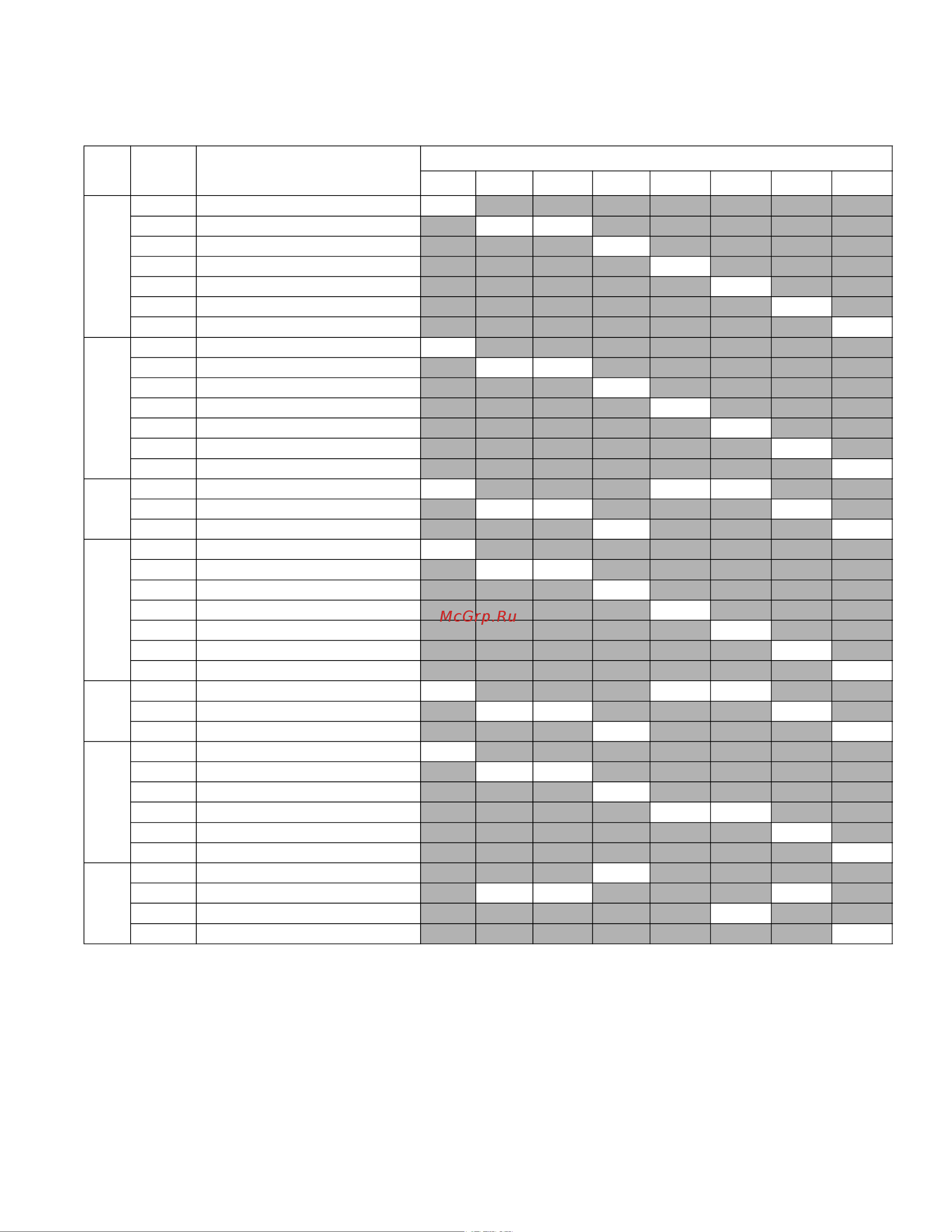

Parts
309577Y 21
Ref. Part Description
Qty.
246830 246831 262647 246832 24Y175 25P857 25P858 25P944
1 240518 ROD, displacement; sst 1
240517 ROD, displacement; sst 1 1
246689 ROD, displacement; sst 1
15H110 ROD, displacement; sst 1
192622 ROD, displacement; sst 1
193021 ROD, displacement; sst 1
15B109 ROD, displacement; sst 1
2 243346 CYLINDER, pump 1
243347 CYLINDER, pump 1 1
245413 CYLINDER, pump 1
17F955 CYLINDER, pump 1
195891 CYLINDER, pump 1
195895 CYLINDER, pump 1
198571 CYLINDER, pump 1
3* 108526 O-RING; PTFE 2 2 2
107098 O-RING; PTFE 2 2 2
108822 O-RING; PTFE 2 2
4 248209 SLEEVE, cylinder; sst 1
248210 SLEEVE, cylinder; sst 1 1
248979 SLEEVE, cylinder; sst 1
15H112 SLEEVE, cylinder; sst 1
192619 SLEEVE, cylinder; sst 1
193019 SLEEVE, cylinder; sst 1
193390 SLEEVE, cylinder; sst 1
5 195892 HOUSING, valve, intake 1
1 1
195894 HOUSING, valve, intake 1 1 1
198219 HOUSING, valve, intake 1 1
7 239932 VALVE, piston 1
24U993 KIT, valve, piston 1 1
240580 VALVE, piston 1
24V125 VALVE, piston 1 1
24U983 VALVE, piston 1
287388 VALVE, piston 1
8* 249770 SPRING, intake ball 1
257842 SPRING, intake 1 1 1
255335 SPRING, intake 1
245256 SPRING, intake 1
