Installation
14 309572ZAT
4. Connect electrical wires.
NOTE: Newer hoses have a pre-crimped ferrule. If
using a newer hose, skip to step 5.
a. Ensure electrical wires ends are 5/8 in.
(15.9 mm) long. If they are not, use a sharp
scissors to strip all four wire ends to the correct
length. See Strip Length Gauge for correct
length.
NOTE: Be careful not to cut or nick copper strands. If
more than five strands are cut or nicked, trim wire and
re-strip.
NOTE: New hoses are pre-stripped at correct length;
remove insulation to expose bare wire.
b. Ensure strip length is correct by fitting ferrule
over exposed wire. Ferrule should be flush with
wire end. See F
IG. 6.
NOTE: On some older heated hoses wire insulation will
not fit inside ferrule insulator. In these cases, use
scissors to split and remove ferrule insulator.
c. If wire is short of ferrule end, adjust strip length
accordingly. If bare wire is protruding from
ferrule, trim flush to ferrule end. See F
IG. 6.
d. Remove ferrule and apply oxide inhibitor to bare
wire. See F
IG. 7.
e. Reinsert wire in ferrule and apply more oxide
inhibitor to ferrule and wire end.

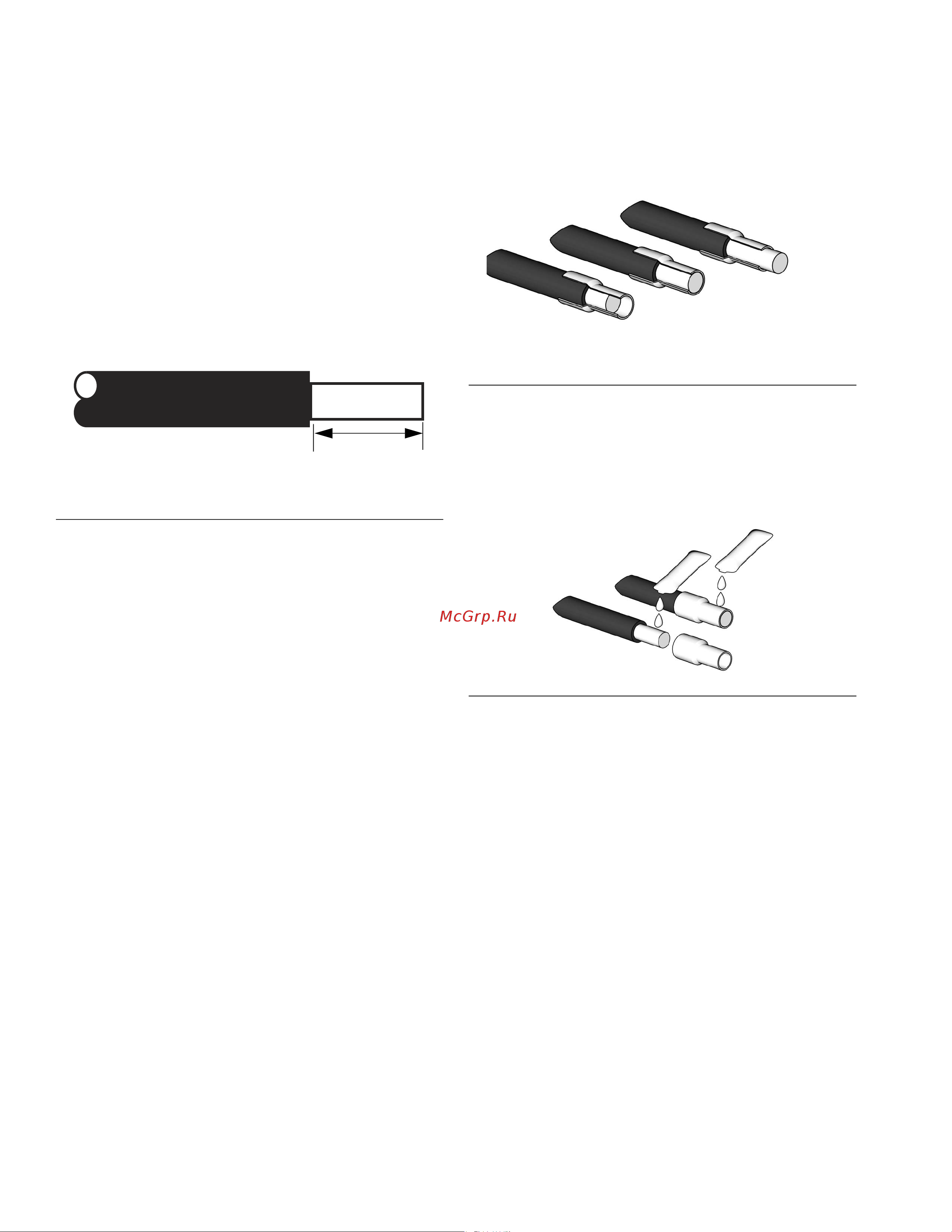

F
IG. 5
Strip Length
5/8 in.
TI9733a
(0.625 mm)
This illustration is not to scale.
F
IG. 6
F
IG. 7
Incorrect
Correct
Incorrect
TI9768a
TI9769A
