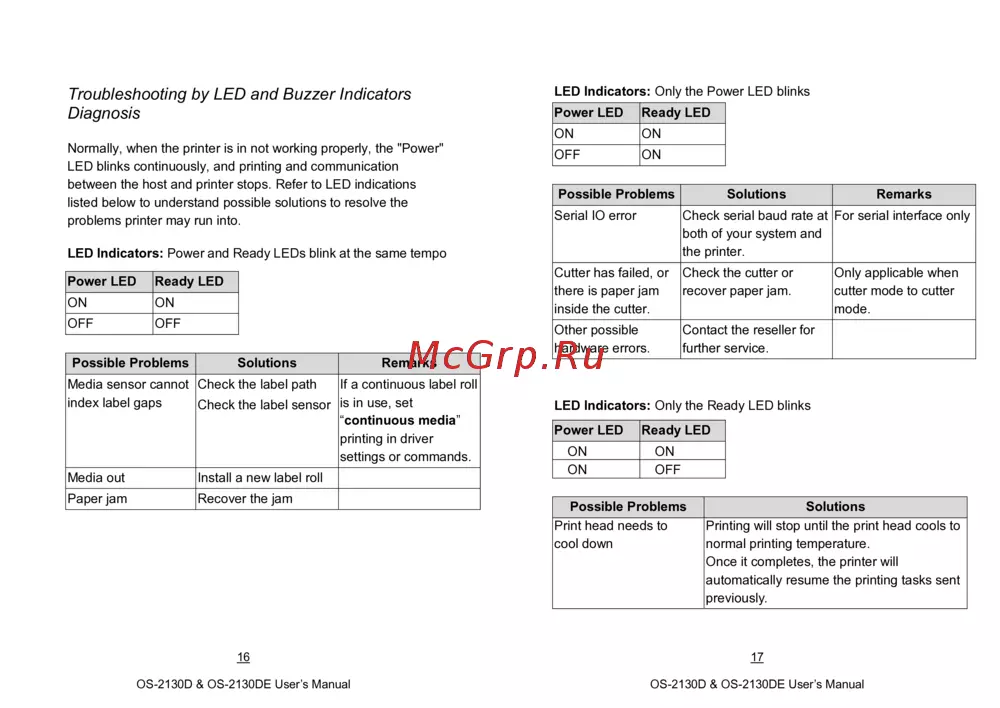

OS-2130D & OS-2130DE User’s Manual
Troubleshooting by LED and Buzzer Indicators
Diagnosis
Normally, when the printer is in not working properly, the "Power"
LED blinks continuously, and printing and communication
between the host and printer stops. Refer to LED indications
listed below to understand possible solutions to resolve the
problems printer may run into.
LED Indicators: Power and Ready LEDs blink at the same tempo
Power LED Ready LED
ON ON
OFF OFF
Possible Problems
Solutions Remarks
Media sensor cannot
index label gaps
Check the label path
Check the label sensor
If a continuous label roll
is in use, set
“continuous media”
printing in driver
settings or commands.
Media out Install a new label roll
Paper jam Recover the jam
17
OS-2130D & OS-2130DE User’s Manual
LED Indicators: Only the Power LED blinks
Power LED Ready LED
ON ON
OFF ON
Possible Problems
Solutions Remarks
Serial IO error Check serial baud rate at
both of your system and
the printer.
For serial interface only
Cutter has failed, or
there is paper jam
inside the cutter.
Check the cutter or
recover paper jam.
Only applicable when
cutter mode to cutter
mode.
Other possible
hardware errors.
Contact the reseller for
further service.
LED Indicators: Only the Ready LED blinks
Power LED Ready LED
ON ON
ON OFF
Possible Problems Solutions
Print head needs to
cool down
Printing will stop until the print head cools to
normal printing temperature.
Once it completes, the printer will
automatically resume the printing tasks sent
previously.
