Argox OS-2130D-SB [33/37] Appendix i thermal print head replacement

OS-2130D & OS-2130DE User’s Manual

Appendix I-Thermal Print Head Replacement

1. Switch off the power and wait for both the LEDs to go off.

2. Open the top cover.

3. Unlatch the print head module and swing it to the opposite.

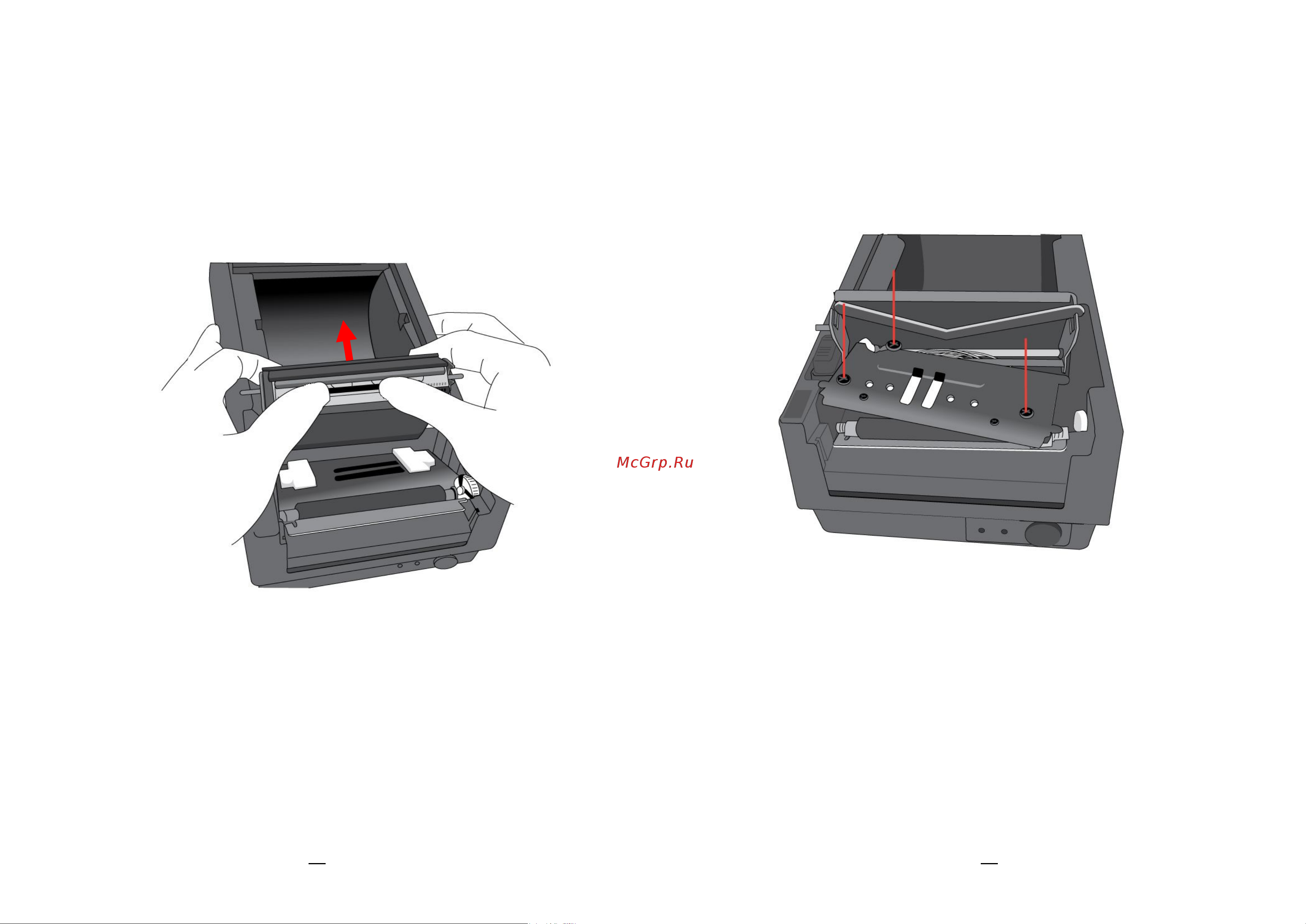

4. Push the TPH firmly into the mounting bracket to release it from

the module.

OS-2130D & OS-2130DE User’s Manual

5. Disassemble the TPH and the metal plate by removing the

screws.

6. Unplug the 2 print head cables from the connectors on the old

TPH-module.

7. Replace the TPH.

8. Plug the 2 print head cable to the new print head.

9. Put the new “Print Head module” onto “Printer Chassis” with the

same way, which you released it from “Printer Chassis”.
