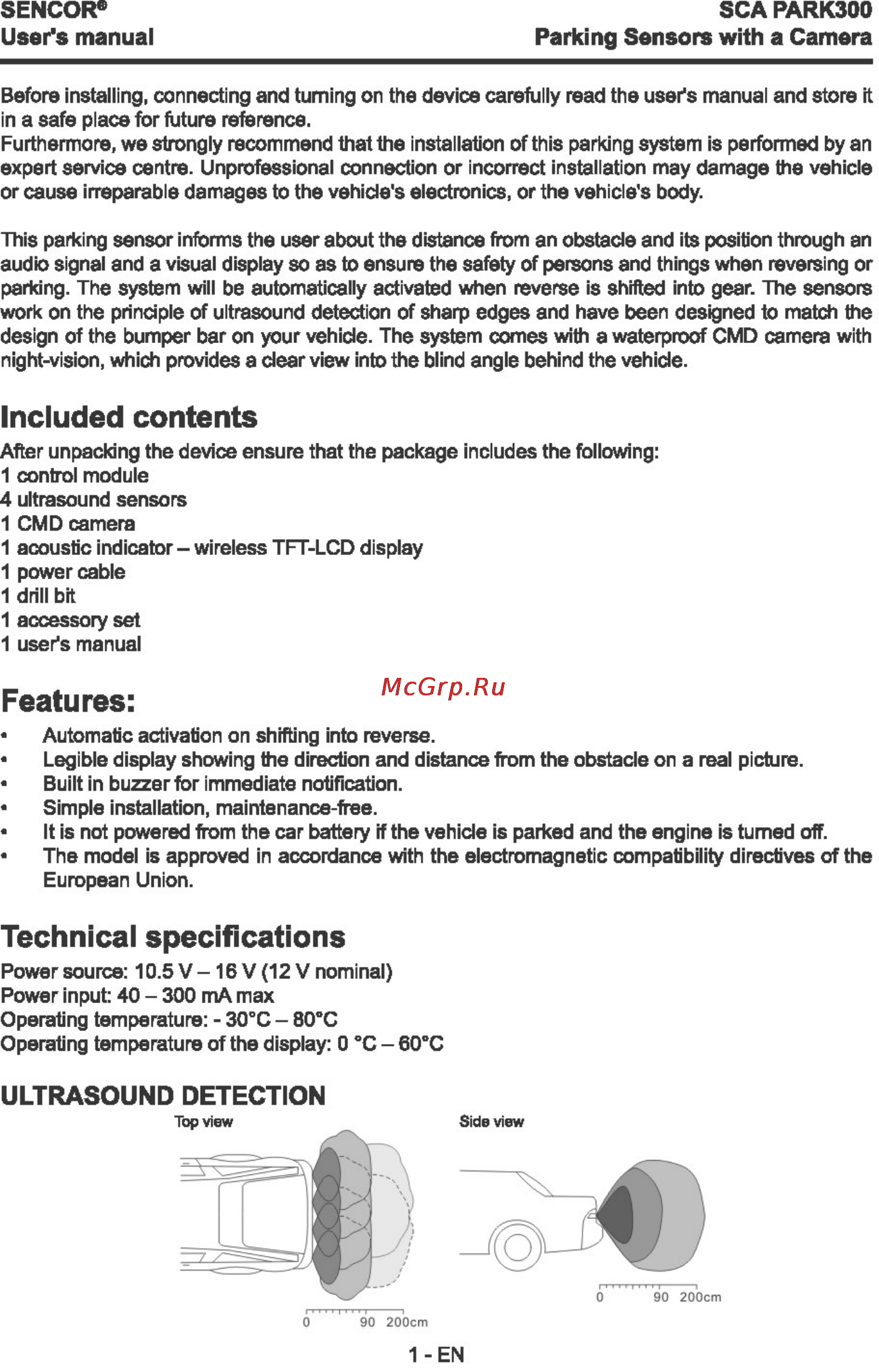

SENCOR User s manual SCA PARK300 Parking Sensors with a Camera Before installing connecting and turning on the device carefully read the user s manual and store it in a safe place for future reference Furthermore we strongly recommend that the installation of this parking system is performed by an expert service centre Unprofessional connection or incorrect installation may damage the vehicle or cause irreparable damages to the vehicle s electronics or the vehicle s body This parking sensor informs the user about the distance from an obstacle and its position through an audio signal and a visual display so as to ensure the safety of persons and things when reversing or parking The system will be automatically activated when reverse is shifted into gear The sensors work on the principle of ultrasound detection of sharp edges and have been designed to match the design of the bumper bar on your vehicle The system comes with a waterproof CMD camera with night vision which provides a dear view into the blind angle behind the vehicle Included contents After unpacking the device ensure that the package includes the following 1 control module 4 ultrasound sensors 1 CMD camera 1 acoustic indicator wireless TFT LCD display 1 power cable 1 drill bit 1 accessory set 1 user s manual Features Automatic activation on shifting into reverse Legible display showing the direction and distance from the obstade on a real picture Built in buzzer for immediate notification Simple installation maintenance free It is not powered from the car battery if the vehide is parked and the engine is turned off The model is approved in accordance with the electromagnetic compatibility directives of the European Union Technical specifications Power source 10 5 V 16 V 12 V nominal Power input 40 300 mA max Operating temperature 30 C 80 C Operating temperature of the display 0 C 60 C ULTRASOUND DETECTION Top view Side view 0 0 90 200cm 1 EN 90 200cm
