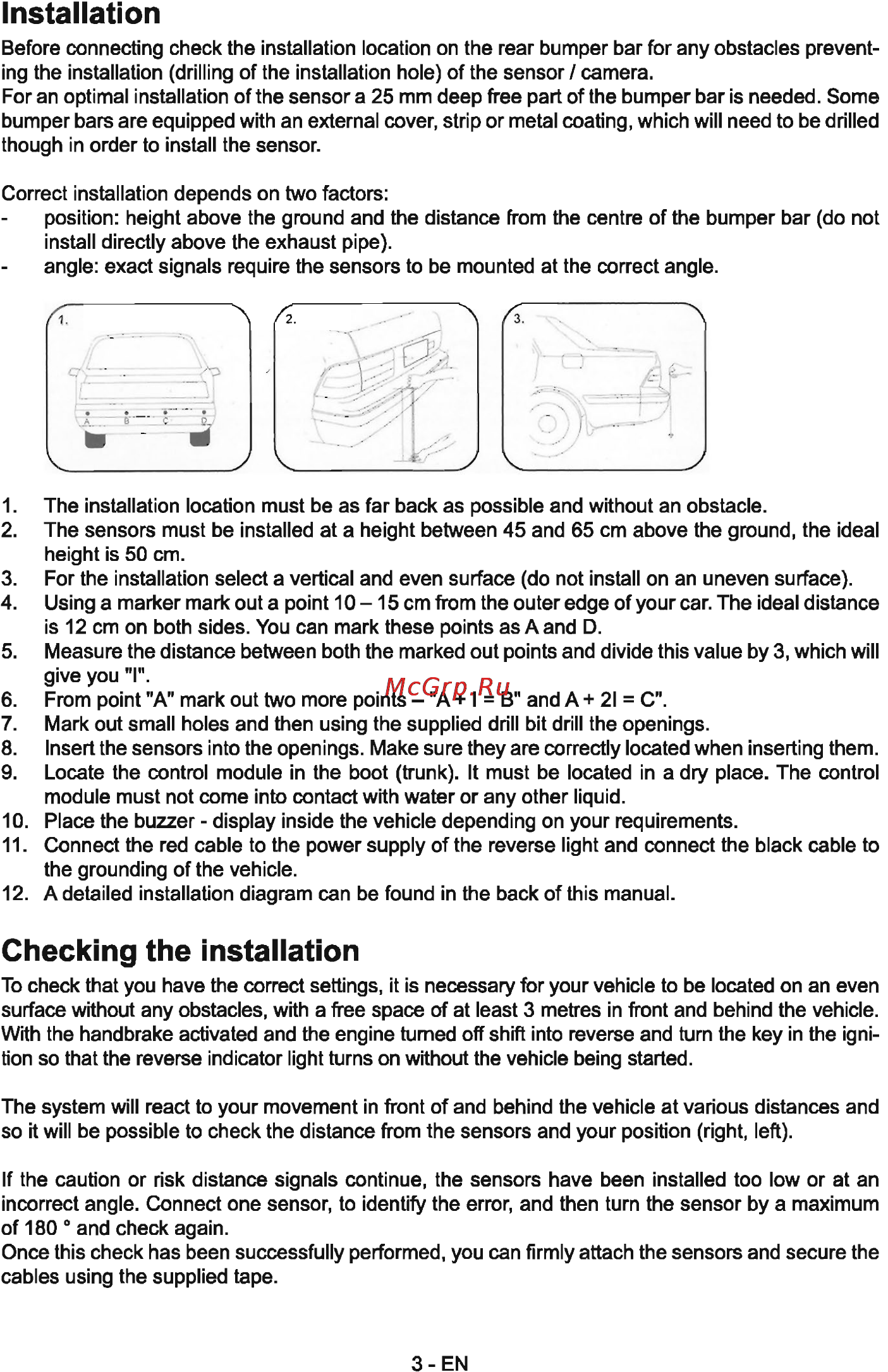

Installation Before connecting check the installation location on the rear bumper bar for any obstacles prevent ing the installation drilling of the installation hole of the sensor camera For an optimal installation of the sensor a 25 mm deep free part of the bumper bar is needed Some bumper bars are equipped with an external cover strip or metal coating which will need to be drilled though in order to install the sensor Correct installation depends on two factors position height above the ground and the distance from the centre of the bumper bar do not install directly above the exhaust pipe angle exact signals require the sensors to be mounted at the correct angle 1 The installation location must be as far back as possible and without an obstacle 2 The sensors must be installed at a height between 45 and 65 cm above the ground the ideal height is 50 cm 3 For the installation select a vertical and even surface do not install on an uneven surface 4 Using a marker mark out a point 10 15 cm from the outer edge of your car The ideal distance is 12 cm on both sides You can mark these points as A and D 5 Measure the distance between both the marked out points and divide this value by 3 which will give you I 6 From point A mark out two more points A I B and A 2I C 7 Mark out small holes and then using the supplied drill bit drill the openings 8 Insert the sensors into the openings Make sure they are correctly located when inserting them 9 Locate the control module in the boot trunk It must be located in a dry place The control module must not come into contact with water or any other liquid 10 Place the buzzer display inside the vehicle depending on your requirements 11 Connect the red cable to the power supply of the reverse light and connect the black cable to the grounding of the vehicle 12 A detailed installation diagram can be found in the back of this manual Checking the installation To check that you have the correct settings it is necessary for your vehicle to be located on an even surface without any obstacles with a free space of at least 3 metres in front and behind the vehicle With the handbrake activated and the engine turned off shift into reverse and turn the key in the igni tion so that the reverse indicator light turns on without the vehicle being started The system will react to your movement in front of and behind the vehicle at various distances and so it will be possible to check the distance from the sensors and your position right left If the caution or risk distance signals continue the sensors have been installed too low or at an incorrect angle Connect one sensor to identify the error and then turn the sensor by a maximum of 180 0 and check again Once this check has been successfully performed you can firmly attach the sensors and secure the cables using the supplied tape 3 EN
