- 21 -

• Be sure to connect fan cables to the fan headers to prevent your CPU and system from

overheating. Overheating may result in damage to the CPU or the system may hang.

• These fan headers are not conguration jumper blocks. Do not place a jumper cap on the headers.

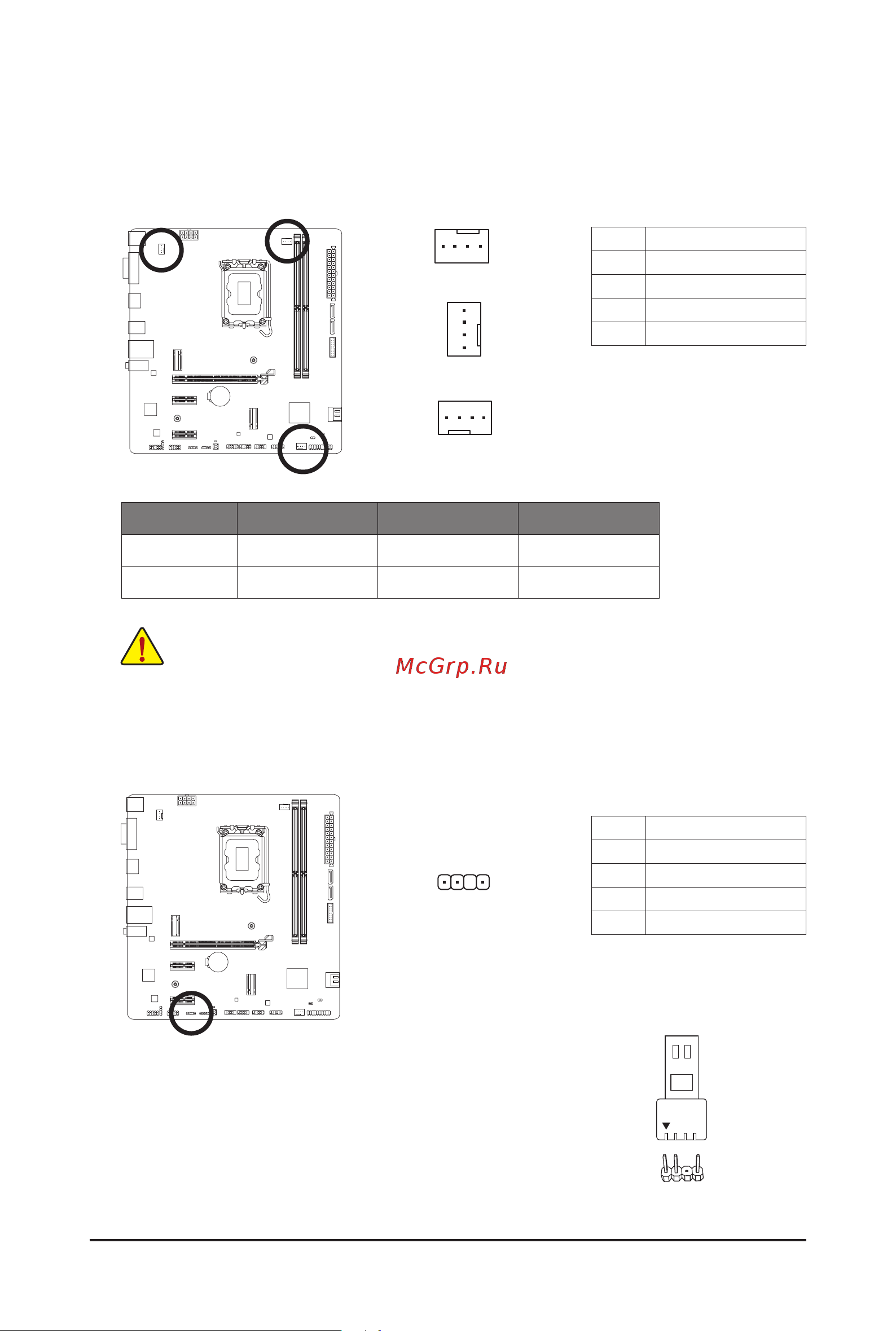

3/4) CPU_FAN/SYS_FAN1/SYS_FAN2 (Fan Headers)

All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.

When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire

is the ground wire). The speed control function requires the use of a fan with fan speed control design.

For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.

5) D_LED (Addressable LED Strip Header)

The header can be used to connect a standard 5050 addressable LED strip, with maximum power rating

of 5A (5V) and maximum number of 1000 LEDs.

Connect your addressable LED strip to the header. The power pin (marked

with a triangle on the plug) of the LED strip must be connected to Pin 1 of

the addressable LED strip header. Incorrect connection may lead to the

damage of the LED strip.

Connector CPU_FAN SYS_FAN1 SYS_FAN2
