- 4 -

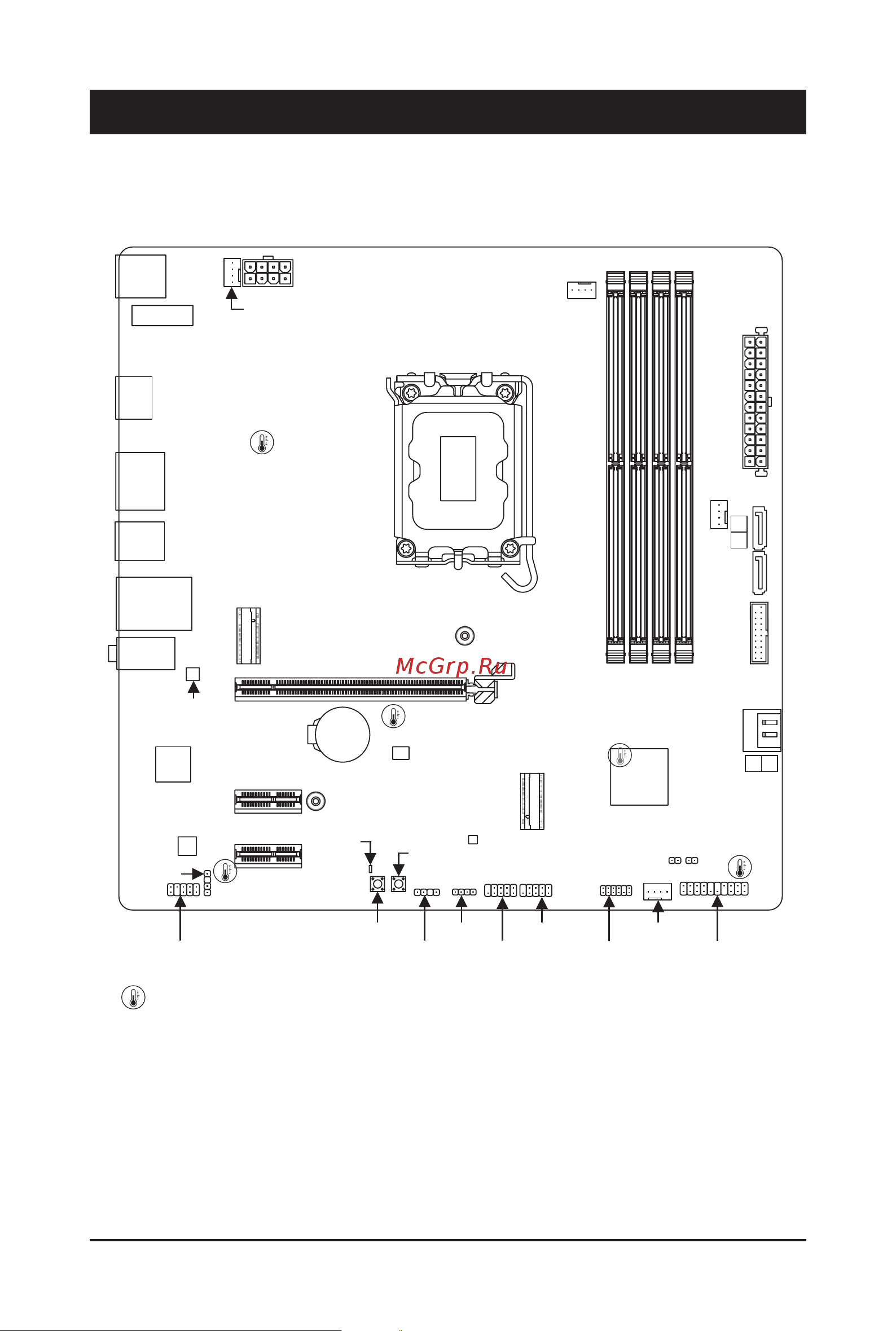

1-1 Motherboard Layout
Chapter 1 Product Introduction
M Only for B760M DS3H AX.
O Only for B760M DS3H AX DDR4.
KB_MS_USB
CPU_FAN
SYS_FAN1
ATX
B760M DS3H AX
B760M DS3H AX DDR4
F_ AUDIO
SPDIF_O
AUDIO
BAT
ATX_12V_2X4
CODEC
CLR_CMOS
RST
U32_LAN
PCIEX16
PCIEX1_1
iTE
®
Super I/O
Realtek
®
2.5GbE LAN
LED_C F_USB2 SYS_FAN3
SPI_TPM F_PA NEL
SATA3 5 4
SATA3
7
6
HDMI
80
80
M_BIOS
QFLASH_PLUS
RST_SW O
F_U32
U32G2C
U32
M2P_ S B
M2A_CPU
DDR5 _A1 M
DDR4_A1 O
DDR5_A2 M
DDR4_A2 O
DDR5_B1 M
DDR4_B1 O
DDR5_B2 M
DDR4_B2 O
D_LED
M2_WIFI
SYS_FAN2
F_USB1
QFLED
PCIEX1_2
DUAL_DP
USB 2.0 Hub
LGA1700
Intel
®
B760
(Note) The temperature sensor is on the back of the motherboard.
Temperature sensor
(Note)
