- 22 -

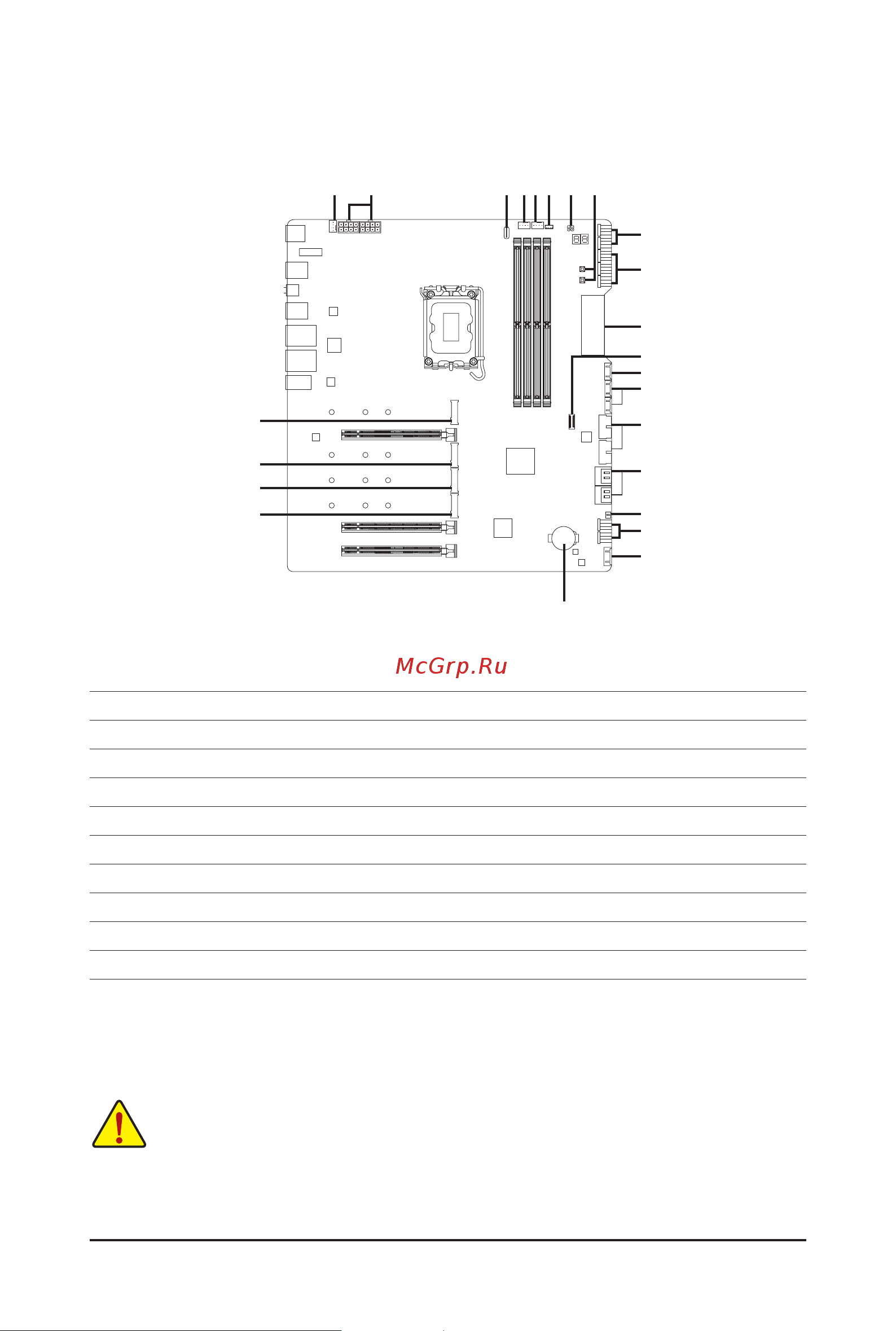

2-7 Internal Connectors

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has

been securely attached to the connector on the motherboard.

1) ATX_12V_2X4_1/ATX_12V_2X4_2

2) ATX

3) CPU_FAN

4) SYS_FAN1/2/3/4

5) SYS_FAN5/6/7/8_PUMP

6) CPU_OPT

7) EC_TEMP1/EC_TEMP2

8) LED_CPU

9) LED_DDR

10) LED_C1/LED_C2

11) NOISE_SENSOR

12) SATA3 4/5/6/7

13) M2A_CPU/M2P_SB/M2Q_SB/M2M_SB

14) F_PANEL

15) F_U320G

16) F_U32_1/F_U32_2

17) F_USB1

18) PW_SW/RST_SW

19) BAT

6 7

3 18
