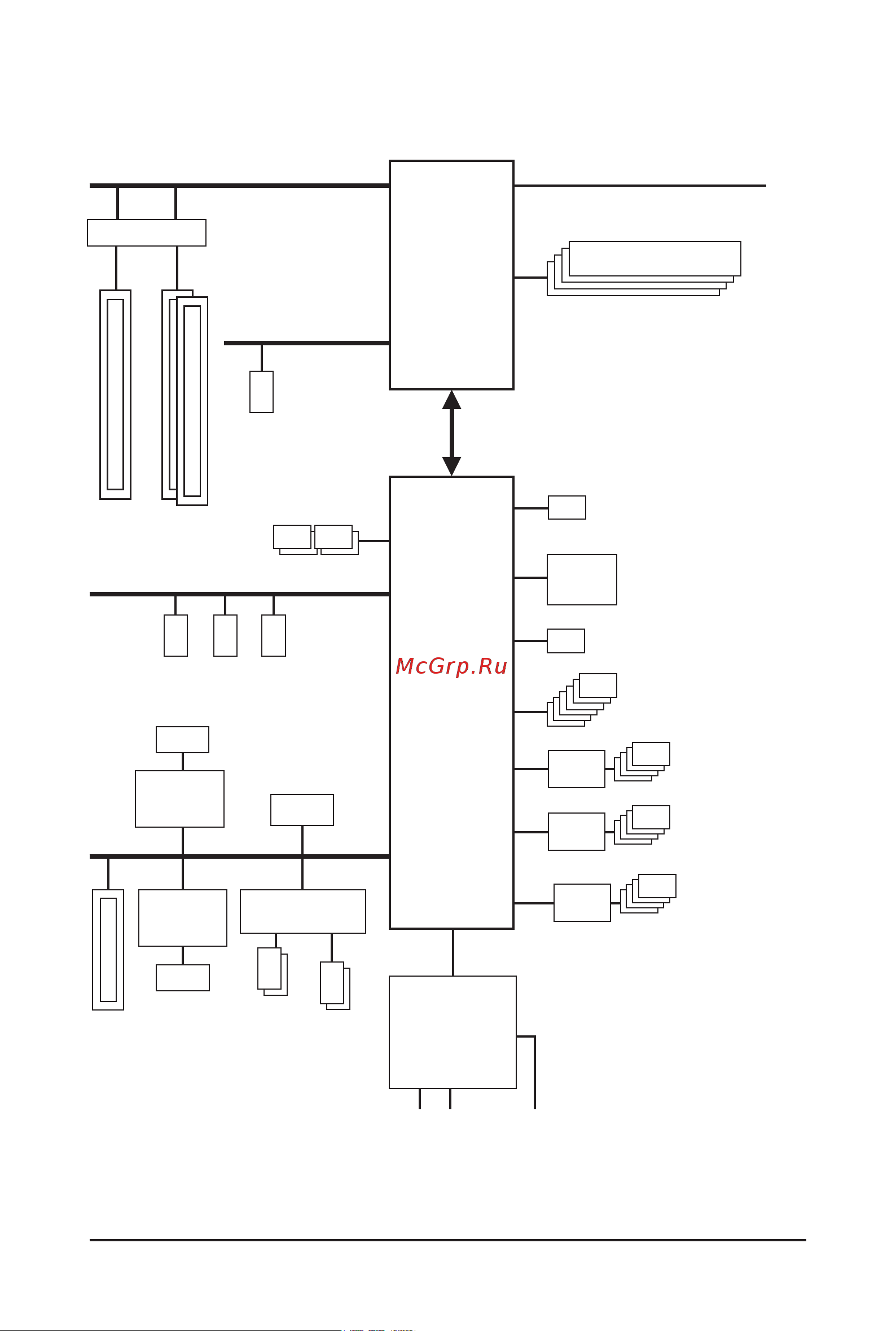

1-2 Motherboard Block Diagram
LGA1700 CPU
CPU CLK+/- (80~800 MHz)
DMI 4.0
LAN1
RJ45
4 SATA 6Gb/s
(SATA3 4~7)
eSPI
Bus
SPI
Bus
PCI Express 4.0 Bus
PCI Express 3.0 Bus
Line Out
MIC
S/PDIF Out
ESS ES9280AC DAC
+
2 ESS ES9080
iTE
®
Super I/O
4 USB 3.2 Gen 1
6 USB 3.2 Gen 2 Type-A
Intel
®
Z690
x4 x2
1 PCI Express x4
USB 3.2
Gen 1 Hub
4 USB 2.0/1.1
BIOS
M.2 WIFI
PCI Express 5.0 Bus
PCI Express 4.0 Bus
1 M.2 Socket 3
(M2A_CPU)
3 M.2 Socket 3
(M2P_SB, M2Q_SB, M2M_SB)
Marvell
®
AQtion
AQC113C
10GbE LAN
1 USB Type-C
®
,
with USB 3.2 Gen 2x2 support
DDR5 4800/4000 MHz
LAN2
RJ45
x1
Intel
®
2.5GbE LAN
USB 2.0
Hub
4 USB 3.2 Gen 2 Type-A
USB 3.2
Gen 2 Hub
x16
1 PCI Express x16
x8
2 PCI Express x8
Switch
or
Intel
®
Thunderbolt
™
4
Controller
or
2 Intel
®
Thunderbolt
™
4
2 USB Type-C
®
, with
USB 3.2 Gen 2 support
