- 4 -

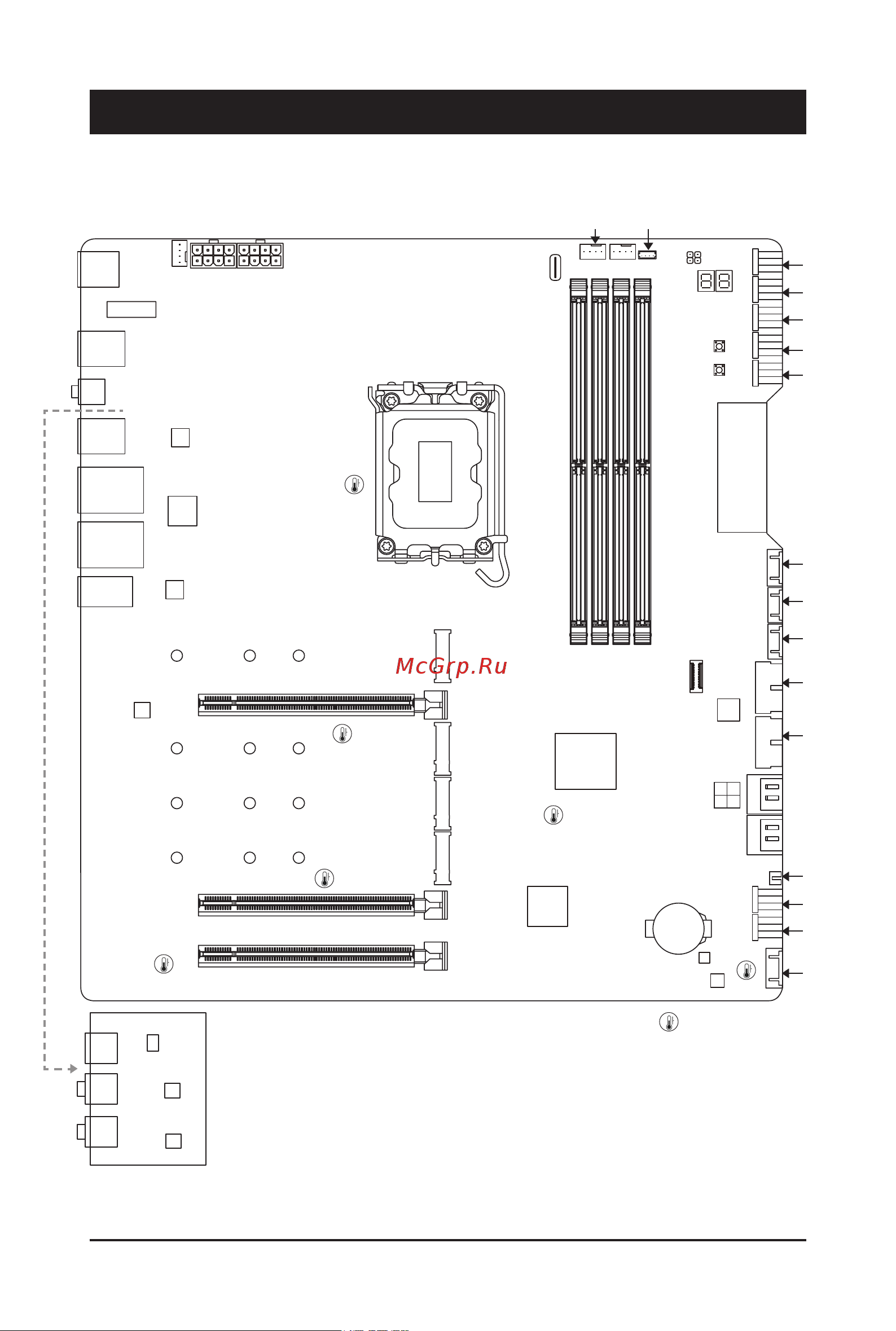

1-1 Motherboard Layout
(Note) For debug code information, please refer to Chapter 5.
Chapter 1 Product Introduction
Temperature Sensor
M2_WIFI
LGA1700
ATX
U32G2_1
Intel
®
Z690
M_BIOS
USB 3.2 Gen 2 Hub
PCIEX16
PCIEX8
F_U320G
DB_PORT
(Note)
EC_TEMP2
SYS_FAN1
60
80
110
M2A_CPU
M2P_SB
CPU_FAN
iTE
®
Super I/O
LED_C1
LED_C2
PW_SW
ATX_12V_2X4_2
ATX_12V_2X4_1
SATA3
5 7
4 6
REAR_BUTTON
EC_TEMP1
RST_SW
SYS_FAN5_
PUMP
SYS_FAN4
SYS_FAN3
SYS_FAN2
SYS_FAN6_
PUMP
F_PANEL
NOISE_
SENSOR
F_U32_2
SYS_FAN8_
PUMP
F_USB1
PCIEX4_1
U32G2_3
Intel
®
2.5GbE
LAN
M2Q_SB
M2M_SB
DDR5_A1
DDR5_A2
DDR5_B1
DDR5_B2
BAT
USB 3.2
Gen 1 Hub
F_U32_1
60
80
110
60
80
110
60
80
110
Marvell
®
AQtion AQC113C
10GbE LAN
CMOS
U32G2_2
TYPEC_1
U32G2
_LAN2
TYPEC_2
U32G2
_LAN1
Intel
®
Thunderbolt
™
4
Controller
USB 2.0 Hub
OPTICAL
MIC_IN
LINE_OUT
ESS ES9280AC
DAC
ESS ES9080
ESS ES9080
SYS_FAN7_
PUMP
LED_DDR
Z690 AORUS XTREME WB
(Z690 AORUS XTREME WATERFORCE)
CPU_OPT
LED_CPU
