Hardware Installation
- 31 -
11) SATA30/1/2/3/4/5(SATA6Gb/sConnectors)
TheSATAconnectorsconformtoSATA6Gb/sstandardandarecompatiblewithSATA3Gb/sandSATA
1.5Gb/sstandard.EachSATAconnectorsupportsasingleSATAdevice.TheIntel
®
Chipset supports RAID 0,
RAID1,RAID5,andRAID10.RefertoChapter3,"ConguringaRAIDSet,"forinstructionsonconguring
a RAID array.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
To enable hot-plugging for the SATA ports, refer to Chapter 2, "BIOS Setup," "Settings\IO Ports\
SATAAndRSTConguration,"formoreinformation.

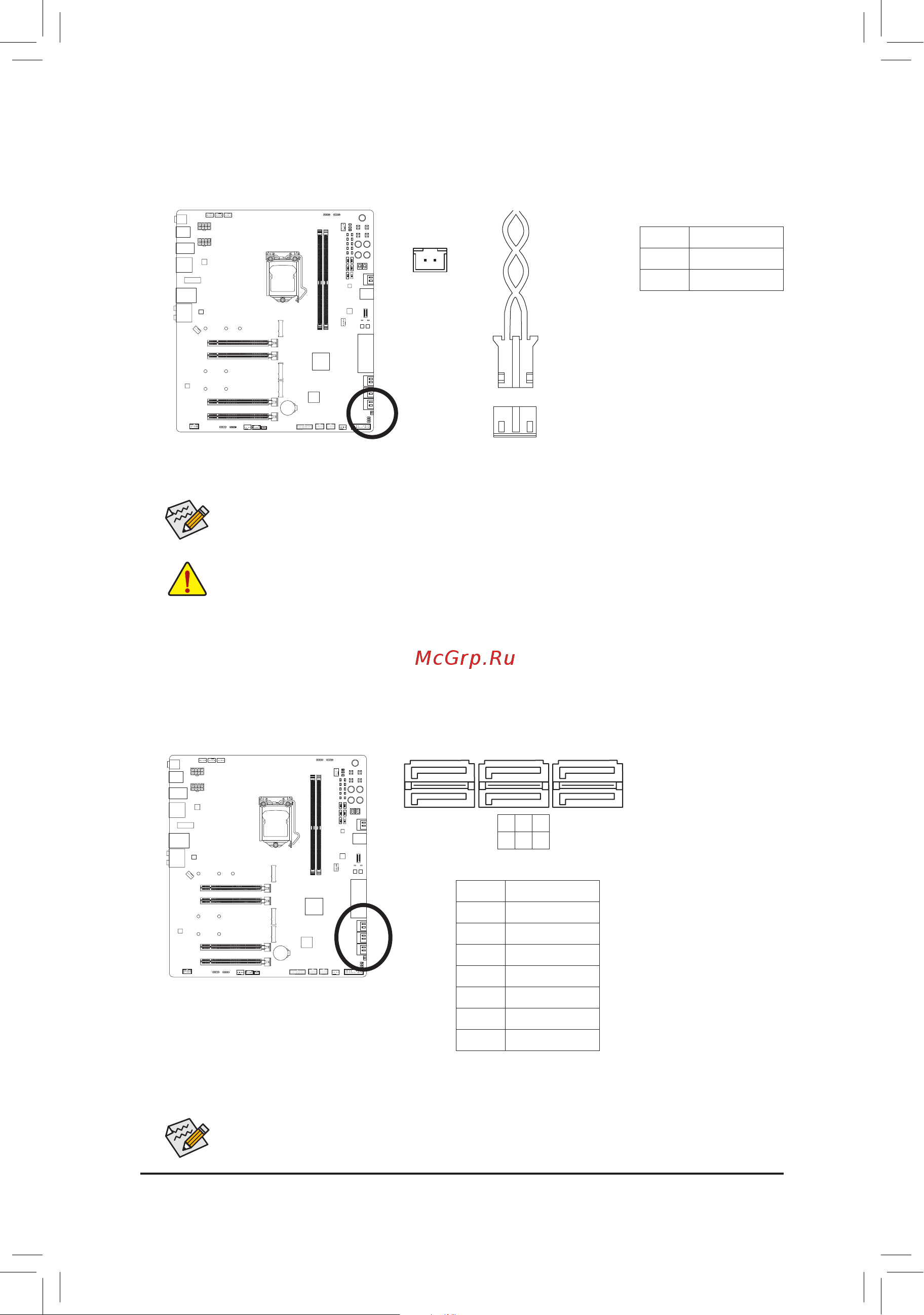

10) NOISE_SENSOR (Noise Detection Header)
This header can be used to connect a noise detection cable to detect the noise inside the case.
Pin No. Denition
1 Noise Detection
2 GND
Before connecting the cable to the header, make sure to remove the jumper cap. Re-place the
jumper cap if the header is not in use.
For more information on the noise detection function, refer to the instructions in Chapter 5, "Unique
Features," "APP Center\System Information Viewer"
1
Noise Detection
Cable
1
SATA3
5 3 1
4 2 0
1
1
7
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
7
