Samsung UE-22D5020 NW [131/191] Supported video formats

▶

◀ ▶

●

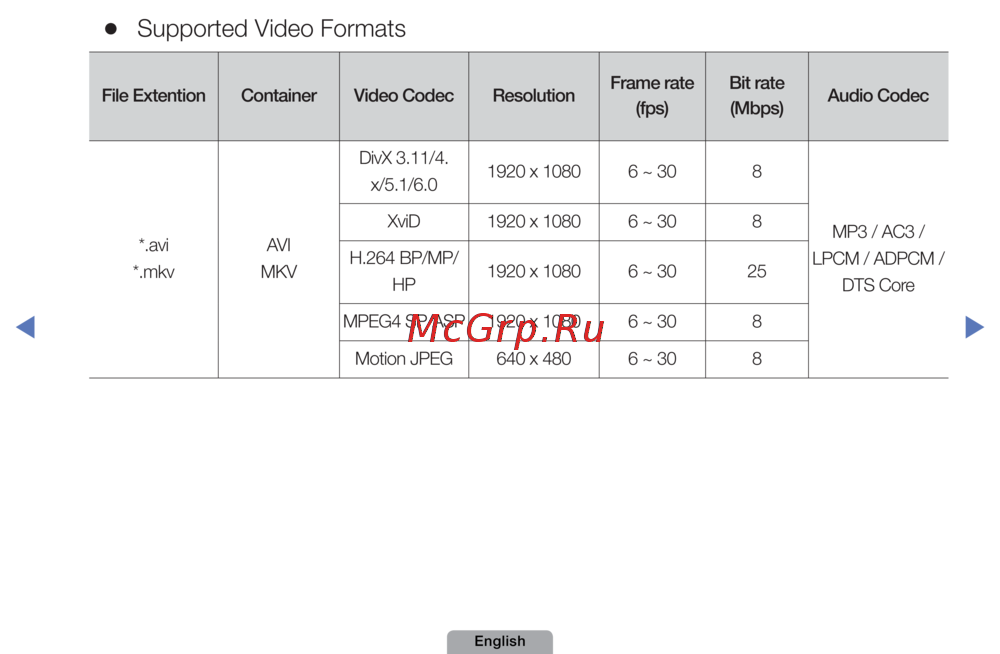

Supported Video Formats

File Extention Container Video Codec Resolution

Frame rate

(fps)

Bit rate

(Mbps)

Audio Codec

*.avi

*.mkv

AVI

MKV

DivX 3.11/4.

x/5.1/6.0

1920 x 1080 6 ~ 30 8

MP3 / AC3 /

LPCM / ADPCM /

DTS Core

XviD 1920 x 1080 6 ~ 30 8

H.264 BP/MP/

1920 x 1080 6 ~ 30 25

MPEG4 SP/ASP 1920 x 1080 6 ~ 30 8

Motion JPEG 640 x 480 6 ~ 30 8

English
