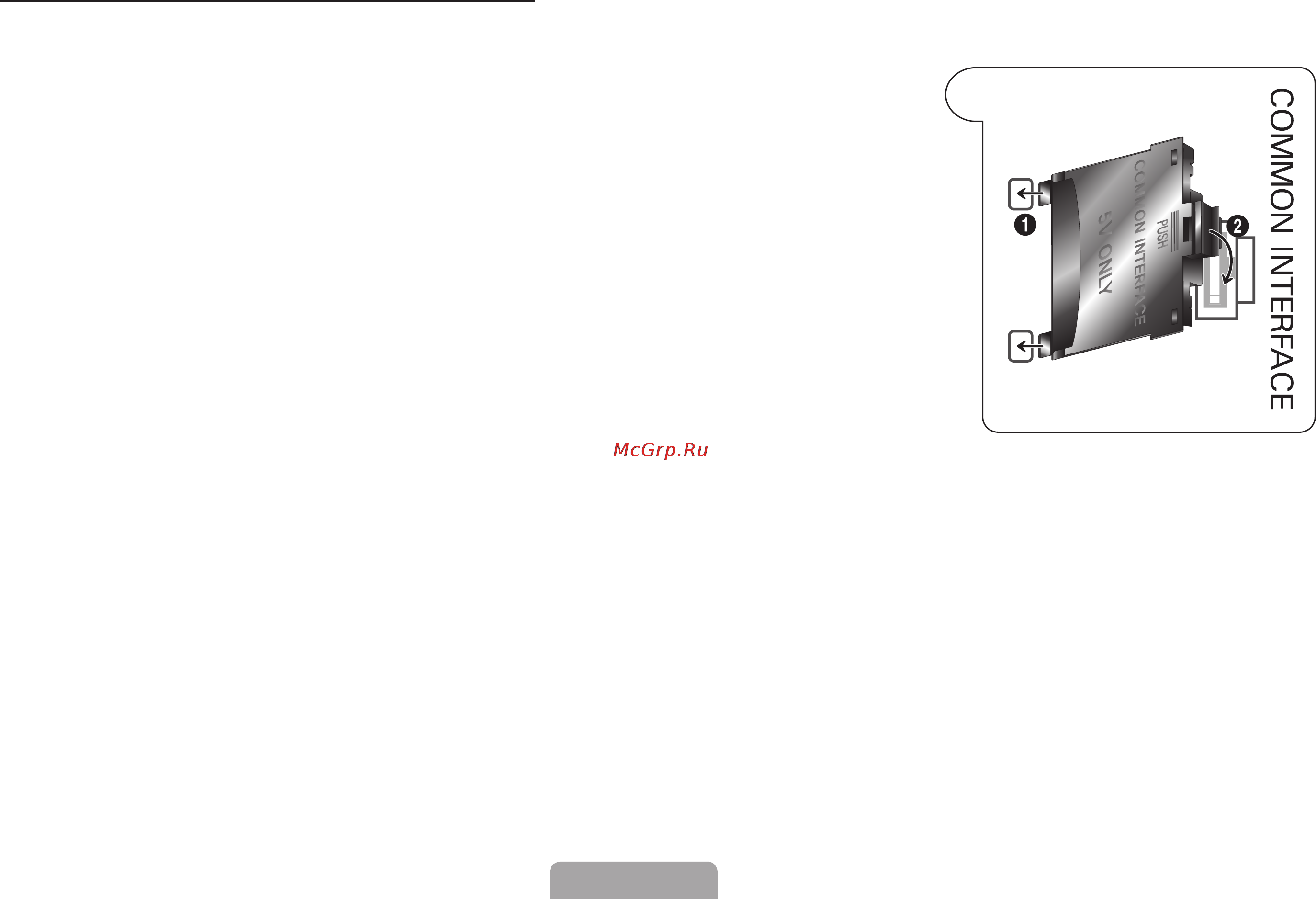

❑ Connections Common Interface Slot
Attaching the CI Card Adaptor
Attach the adapter as shown in the right.
To connect the CI CARD Adapter, follow these steps.
N
Make sure that you attach the adaptor before
you mount the TV on a wall.
1.
Insert the CI CARD Adapter into the two holes
on the product
1
.
N
Please find the two holes on the rear of the
TV. The two holes are beside the COMMON
INTERFACE port.
N
Press it firmly at center of adapter to ensure it is fully lock.
2.
Connect the CI CARD Adapter into the COMMON INTERFACE port.
3. Insert the “CI or CI+ CARD”.
<TV Rear>
