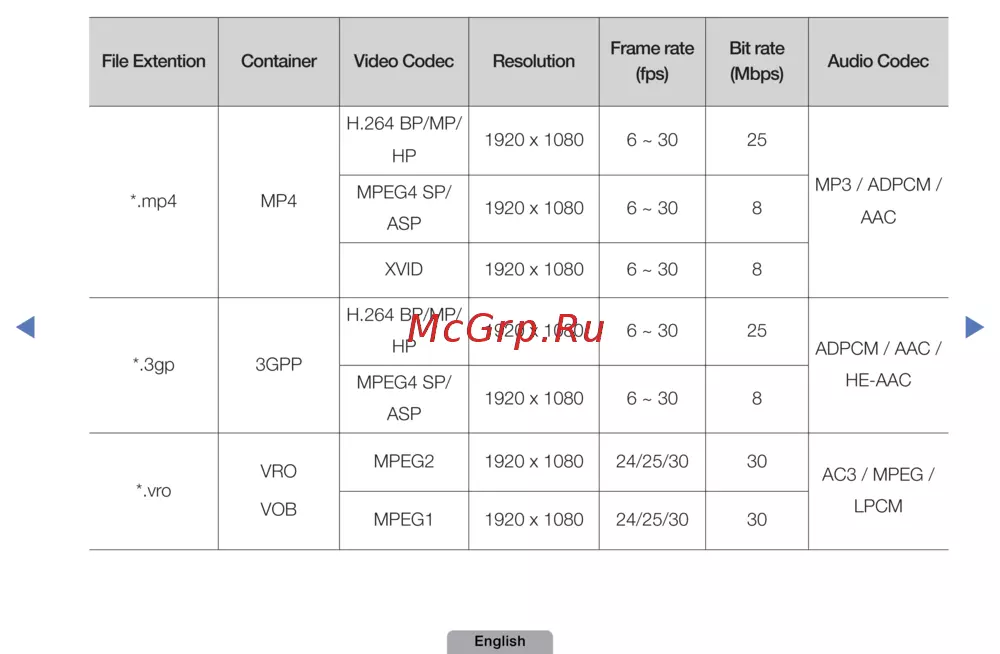

File Extention Container Video Codec Resolution

Frame rate

(fps)

Bit rate

(Mbps)

Audio Codec

*.mp4 MP4

H.264 BP/MP/

1920 x 1080 6 ~ 30 25

MP3 / ADPCM /

AAC

MPEG4 SP/

ASP

1920 x 1080 6 ~ 30 8

XVID 1920 x 1080 6 ~ 30 8

*.3gp 3GPP

H.264 BP/MP/

1920 x 1080 6 ~ 30 25

ADPCM / AAC /

HE-AAC

MPEG4 SP/

ASP

1920 x 1080 6 ~ 30 8

*.vro

VRO

VOB

MPEG2 1920 x 1080 24/25/30 30

AC3 / MPEG /

LPCM

MPEG1 1920 x 1080 24/25/30 30

English
