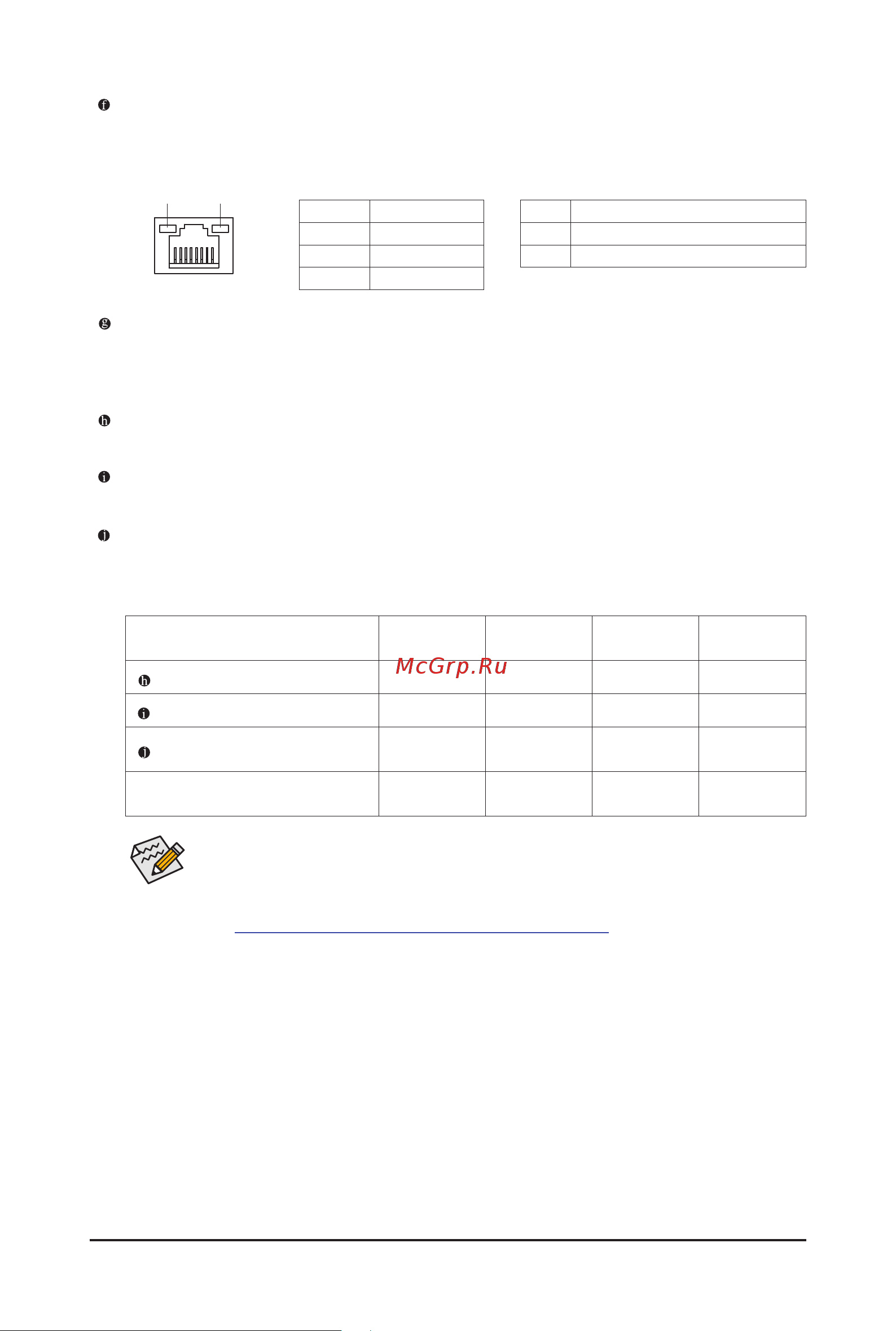

![Gigabyte B550M AORUS ELITE [12/42] Usb 3 gen 1 port q flash plus port](/img/pdf.png)
Gigabyte B550M AORUS ELITE [12/42] Usb 3 gen 1 port q flash plus port
![Gigabyte B550M AORUS ELITE [12/42] Usb 3 gen 1 port q flash plus port](/views2/1920100/page12/bgc.png)
USB 3.2 Gen 1 Port (Q-Flash Plus Port)
The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specication and is compatible to the USB 2.0
specication. Use this port for USB devices. Before using Q-Flash Plus
(Note 3)
, make sure to insert the
USB ash drive into this port rst.
Line In/Rear Speaker Out (Blue)
The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out/Front Speaker Out (Green)
The line out jack.
Mic In/Center/Subwoofer Speaker Out (Pink)
The Mic in jack.
Audio Jack Congurations:
Jack
Headphone/
2-channel
4-channel 5.1-channel 7.1-channel
Line In/Rear Speaker Out
a a a
Line Out/Front Speaker Out
a a a a
Mic In/Center/Subwoofer
Speaker Out
a a
Front Panel Line Out/
Side Speaker Out
a
Activity LEDSpeed LED
LAN Port
Activity LED:Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
(Note 1) For AMD Ryzen
™
5000 G-Series/4000 G-Series
Processors only.
(Note 2) The DVI-D port does not support D-Sub connection by adapter.
(Note 3) To enable the Q-Flash Plus function please visit the "Unique Features" webpage of GIGABYTE's website.
& Please visit GIGABYTE's website for details on conguring the audio software.
https://www.gigabyte.com/WebPage/697/realtek897-audio.html
You can change the functionality of an audio jack using the audio software. To congure
7.1-channel audio, access the audio software for audio settings.
- 12 -
