![Gigabyte W480 VISION D [7/120] W480 vision d motherboard block diagram](/img/pdf.png)
Gigabyte W480 VISION D [7/120] W480 vision d motherboard block diagram
![Gigabyte W480 VISION D [7/120] W480 vision d motherboard block diagram](/views2/1920111/page7/bg7.png)
- 7 -

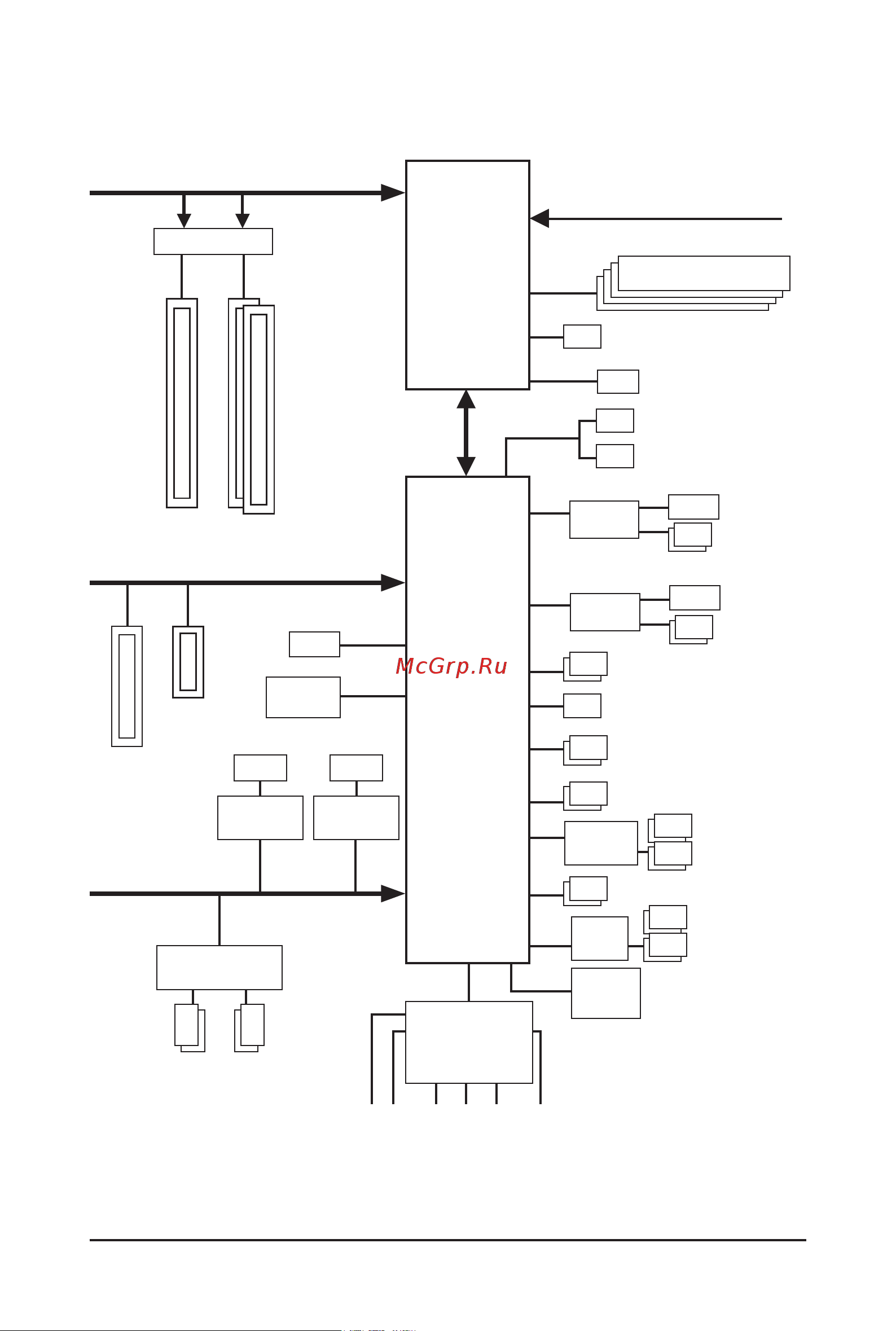

W480 VISION D Motherboard Block Diagram
LGA1200 CPU
CPUCLK+/-(100~500MHz)
DDR42933/2666/2400/2133MHz
PCI Express 3.0 Bus
DMI 3.0
LAN2
RJ45
Intel
®
2.5GbE LAN
LPC
Bus
Center/Subwoofer
Speaker Out
Line Out
MIC
Line In
S/PDIFOut
RearSpeakerOut
CODEC
iTE
®
SuperI/O
4USB2.0/1.1
2 USB 3.2 Gen 1
1 USB Type-C
™
, with
USB 3.2 Gen 2 support
2 USB 3.2 Gen 2
Type A
Intel
®
W480
x1
USB 2.0
Hub
x16
1 PCI Express
x16
x8
2 PCI Express
x8
Switch
or
1 DisplayPort IN
LAN1
RJ45
Intel
®
GbE LAN
x1
PCI Express 3.0 Bus
Intel
®
Thunderbolt
™
3
Controller
or
2 Intel
®
Thunderbolt
™
3
2 USB Type-C
™
,
with USB 3.2 Gen 2
support
1 M.2 Socket 3 (M2A_CPU)
Switch
2SATA6Gb/s
(SATA3 0, 1)
Switch
2SATA6Gb/s
(SATA3 4, 5)
1 M.2 Socket 3 (M2M_SB)
2USB2.0/1.1
2SATA6Gb/s(SATA3 2, 3)
PCI Express 3.0 Bus
1 PCI
Express x1
DDI
HDMI 1.4
SPI
Bus
BIOS
TPM
x4 x1
1 PCI
Express x4
M.2 CNVi
WIFI
1 M.2 Socket 3 (M2P_SB)
4 USB 3.2 Gen 1
USB 3.2
Gen 1 Hub
Содержание
- Rev 1001 12me w48vsd 1001r 1
- User s manual 1
- W480 vision d 1
- Copyright 2
- Disclaimer 2
- Documentation classifications 2
- Identifying your motherboard revision 2
- Box contents optional items w480 vision d motherboard layout w480 vision d motherboard block diagram 3
- Chapter 1 hardware installation 3
- Chapter 2 bios setup 7 3
- Chapter3configuringaraidset 1 3
- Table of contents 3
- 1 bios update utilities 3 4
- 1 configuringaudioinputandoutput 9 4
- 1 drivers software 81 4 2 application software 82 4 3 information 82 4
- 2 app center 8 4
- 2 troubleshooting 107 4
- 3 debug led codes 10 4
- Chapter 4 drivers installation 1 4
- Chapter 5 unique features 3 4
- Chapter 6 appendix 9 4
- Regulatorynotices 14 contact us 19 4
- Box contents 5
- Optional items 5
- Note for debug code information please refer to chapter 6 6
- W480 vision d 6
- W480 vision d motherboard layout 6
- Cpuclk 100 500mhz 7
- Ddr42933 2666 2400 2133mhz 7
- Lga1200 cpu 7
- Pci express 3 bus 7
- Switch 7
- W480 vision d motherboard block diagram 7
