Asus PRIME Z790-P [21/64] Before creating a raid set refer to the raid configuration guide you can download the raid configuration guide from the asus website

PRIME Z790-P

1-11

Chapter 1

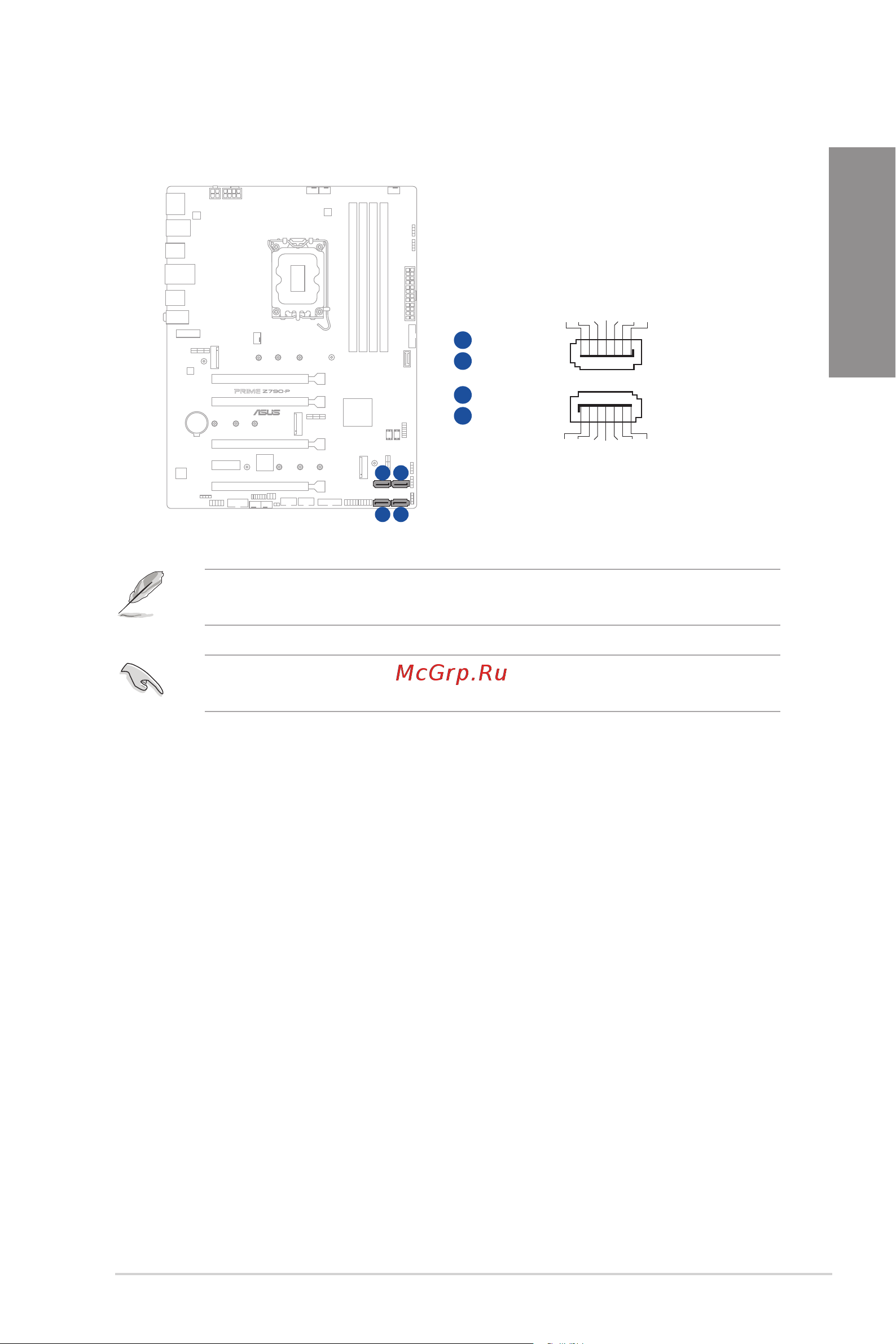

7. SATA 6Gb/s ports

The SATA 6Gb/s ports allow you to connect SATA devices such as optical disc drives

and hard disk drives via a SATA cable.

SATA6G_4

SATA6G_3

SATA6G_2

SATA6G_1

GND

RSATA_TXP

RSATA_TXN

GND

RSATA_RXN

RSATA_RXP

GND

RSATA_RXP

RSATA_RXN

GND

RSATA_TXN

RSATA_TXP

GND

If you installed SATA storage devices, you can create a RAID 0, 1, 5, and 10 configuration

with the Intel

Rapid Storage Technology through the onboard Intel

Z790 chipset.

Before creating a RAID set, refer to the RAID Configuration Guide. You can download

the RAID Configuration Guide from the ASUS website.
