Asus PRIME Z790-P [23/64] Chapter 1

PRIME Z790-P

1-13

Chapter 1

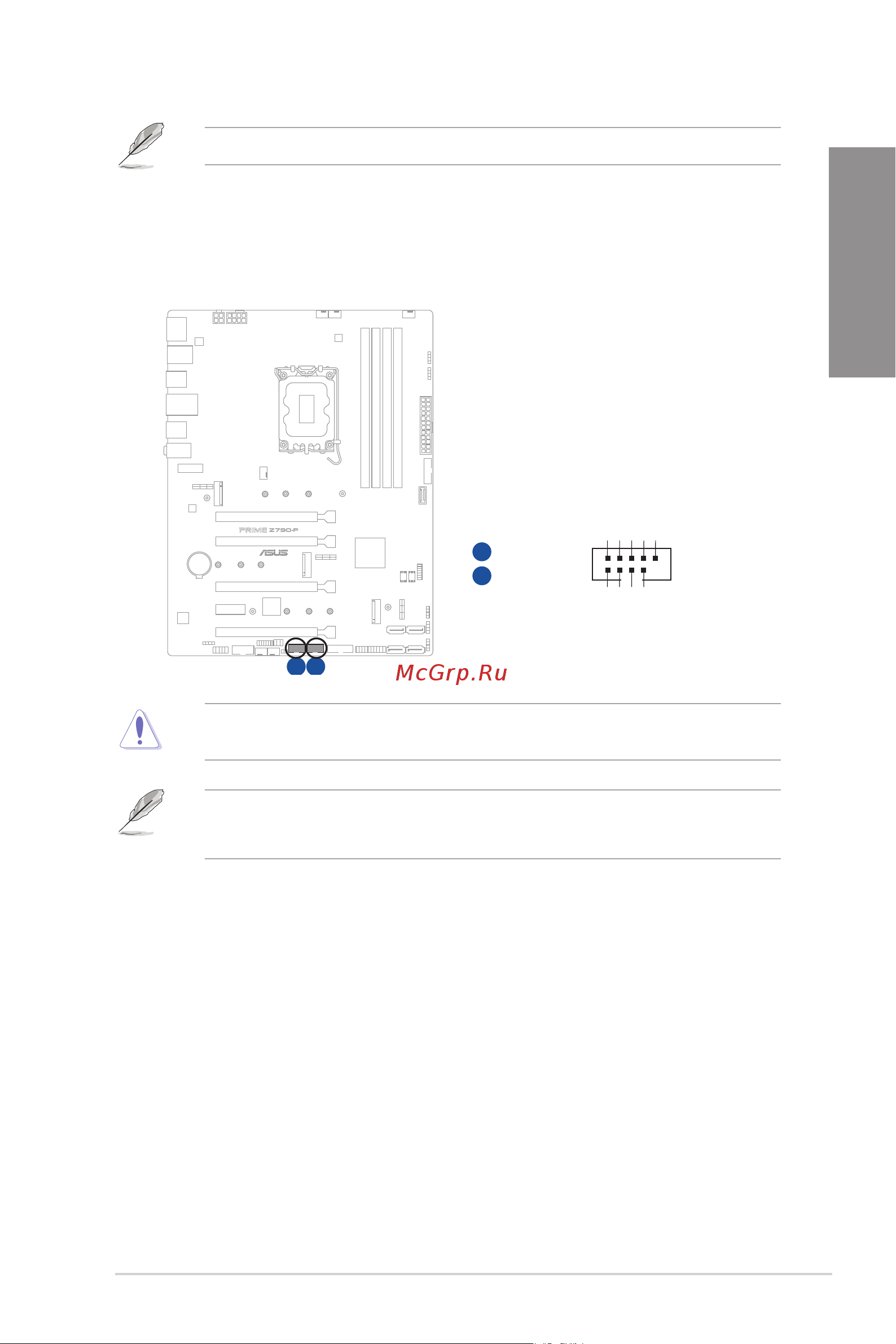

10. USB 2.0 headers

The USB 2.0 headers allow you to connect USB modules for additional USB 2.0 ports.

The USB 2.0 headers provide data transfer speeds of up to 480 Mb/s.

USB_E12

USB_E34

USB+5V

USB_P1-

USB_P1+

GND

USB+5V

USB_P2-

USB_P2+

GND

PIN 1

DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the

motherboard!

• The USB 2.0 module is purchased separately.

• USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

The USB 3.2 Gen 1 module is purchased separately.
