Chapter 2: Basic Installation

Chapter 2

2.2 Motherboard rear and audio connections

2.2.1 Rear I/O connection

* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port definitions.

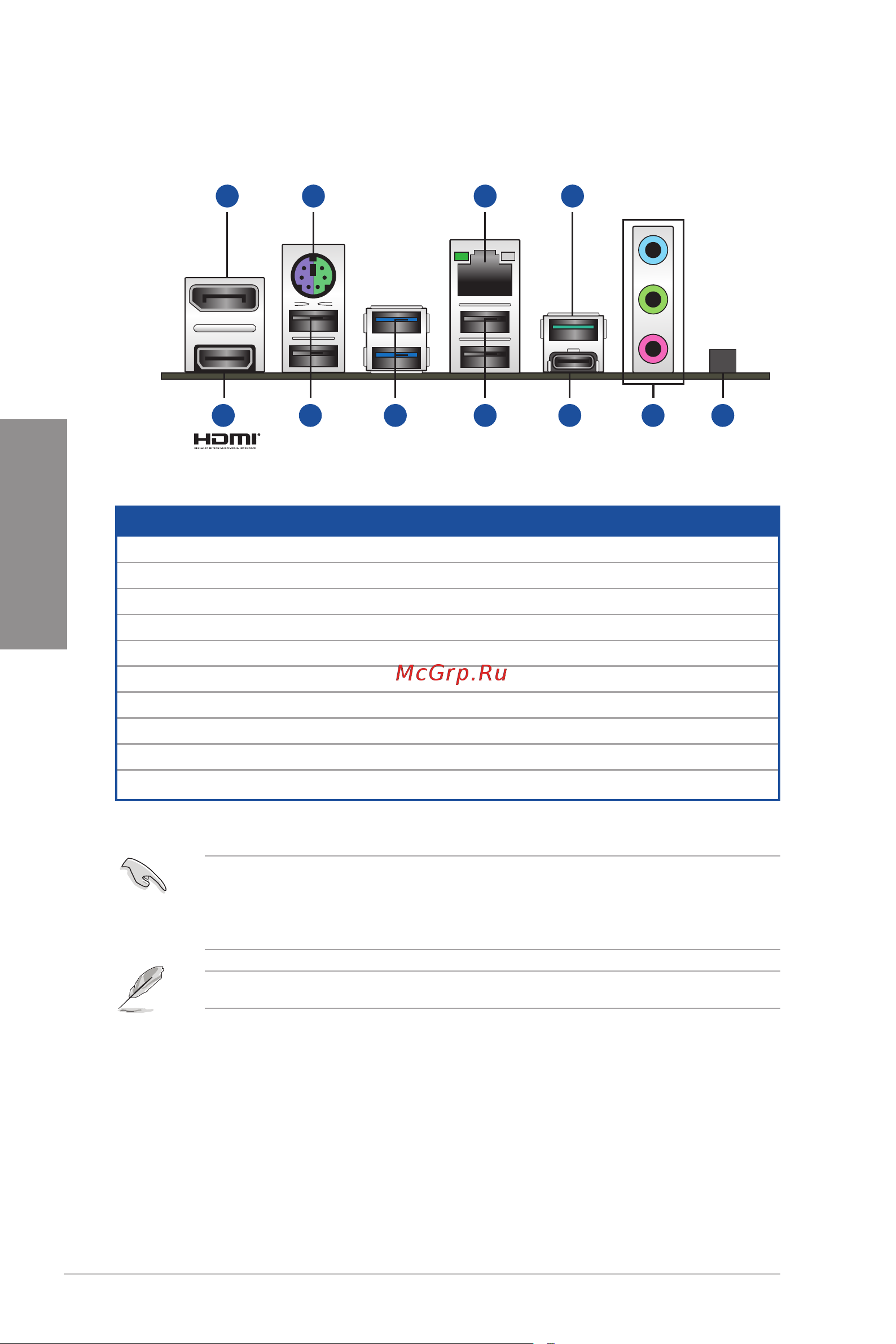

Rear panel connectors

1. DisplayPort

2. PS/2 Keyboard/Mouse combo port

3. Realtek 2.5Gb Ethernet port*

4. USB 3.2 Gen 2 Type-A port 3

5. HDMI

port

6. USB 2.0 ports E5, E6, E7 and E8

7. USB 3.2 Gen 1 Type-A ports 9 and 10

8. USB 3.2 Gen 2x2 Type-C

port 1

9. Audio Jacks**

10. Vertical M.2 slot (Key E)

We strongly recommend that you connect your devices to ports with matching data

transfer rate. Please connect your USB 3.2 Gen 1 devices to USB 3.2 Gen 1 ports and

your USB 3.2 Gen 2 devices to USB 3.2 Gen 2 ports for faster and better performance for

your devices.

65 8

21 43

6 97 10

USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
