Asus ProArt B760-CREATOR D4 [12/42] Core 1
![Asus ProArt B760-CREATOR D4 [12/42] Core 1](/views2/1920484/page12/bgc.png)
1-2
1.2.1 Layout contents
1. CPU socket
The motherboard comes with a LGA1700 socket designed for 13
th
Gen Intel
®
Core™ & 12
th
Gen Intel
®
Core™, Pentium
®
Gold and Celeron
®
Processors.
For more details, refer to Central Processing Unit (CPU).
2. DDR4 DIMM slots
The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR4
(Double Data Rate 4) memory modules.
For more details, refer to System memory.
3. Expansion slots
This motherboard supports two PCIe x16 graphics cards and one PCIe x1 network card,
SCSI card or other card that complies with the PCI Express specication.
Chapter 1: Product Introduction

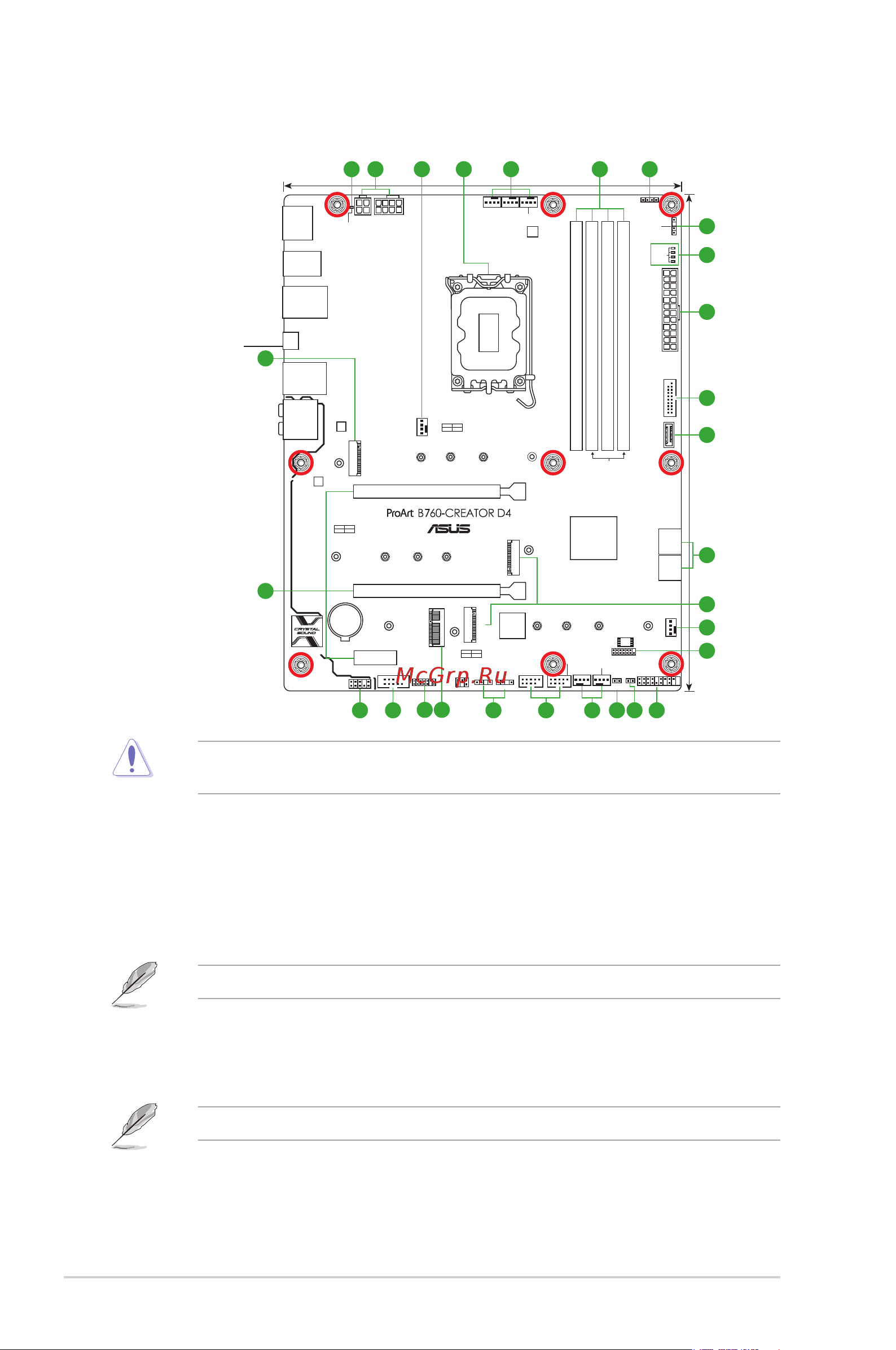

1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
DDR4 DIMM_A1 (64bit, 288-pin module)
DDR4 DIMM_A2 (64bit, 288-pin module)
DDR4 DIMM_B1 (64bit, 288-pin module)
DDR4 DIMM_B2 (64bit, 288-pin module)
LGA1700
CHA_FAN1
X
PCIE SATA
4.0 X4
CPU_FAN CPU_OPT
AIO_PUMP
M.2_2(SOCKET3)
M.2_3(SOCKET3)
M.2(WIFI)
M.2_1(SOCKET3)
M.2_1(SOCKET3)
X
PCIE SATA
4.0 X4
M.2_3(SOCKET3)
X
PCIE SATA
3.0 X4
M.2_2(SOCKET3)
PANEL
AAFP
COM
ATX_12V_1
ATX_PWR
U32G1_910
U32G2X2_C1
Intel
®
B760
Intel
Ethernet
RTL
Ethernet
BATTERY
HDMI_DP
USB_E5678
LAN2_U32G1_E34
LAN1_U32G1_E12
Super
I/O
2280
2260
2242
TPM
228022110
22110
2260 2242
2280 2211022602242
PCIEX1(G3)
PCIEX16(G4)
PCIEX16(G5)
USB_78
USB_56
Audio Codec
U32G2_C3
30.5cm(12in)
SATA6G_12SATA6G_34
256Mb
BIOS
TB_HEADER
RGB_HEADER
ADD_GEN 2_1
ADD_GEN 2_2
ADD_GEN 2_3
ATX_12V_2
PLUG_8PIN_PWR
DIGI+
VRM
CHA_FAN3
CHA_FAN4
CHA_FAN2
CLRTC
T-SENSOR
24.4cm(9.6in)
CPU
DRAM
VGA
BOOT
AUDIO
1
st
9
8
6
7
21
11
5
20 16
1415
3
522 214 124
18
17
10
6
4
4
11 13 19
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.
