English
9
B760M PG SONIC WiFi

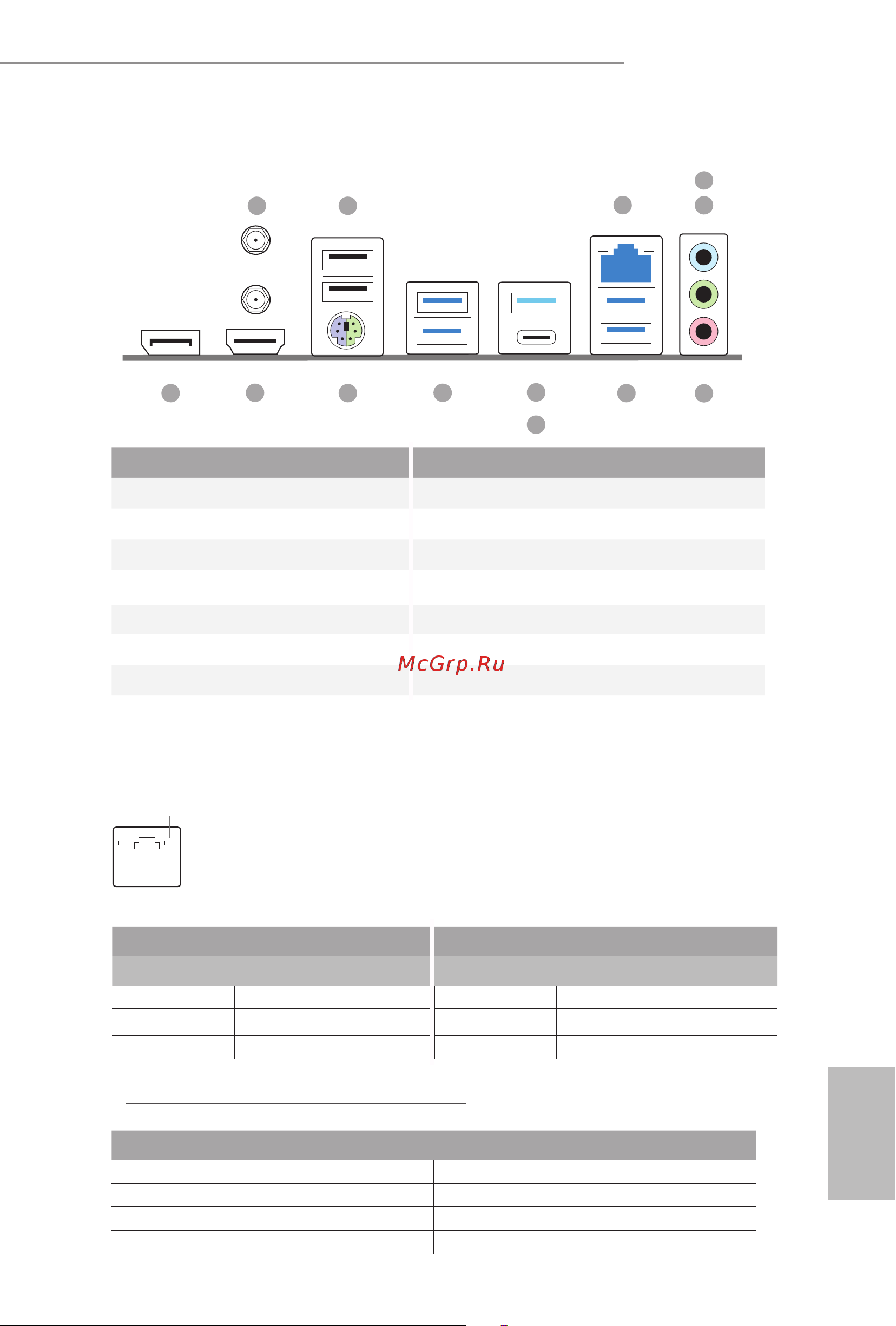

1.4 I/O Panel
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
No. Description No. Description
1 Antenna Ports 8 USB 3.2 Gen2 Type-A Port (USB32_3)
2 USB 2.0 Ports (USB_12) 9 USB 3.2 Gen2 Type-C Port (USB32_TC1)
3 2.5G LAN RJ-45 Port* 10 USB 3.2 Gen1 Ports (USB32_12)
4 Line In (Light Blue)** 11 PS/2 Mouse/Keyboard Port
5 Front Speaker (Lime)** 12 HDMI Port
6 Microphone (Pink)** 13 DisplayPort 1.4
7 USB 3.2 Gen1 Ports (USB32_45)
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
8
9
2
11
13
7
3
6
5
4
1012
1
