Elenberg MX-339 [17/20] How to remove and install the front panel

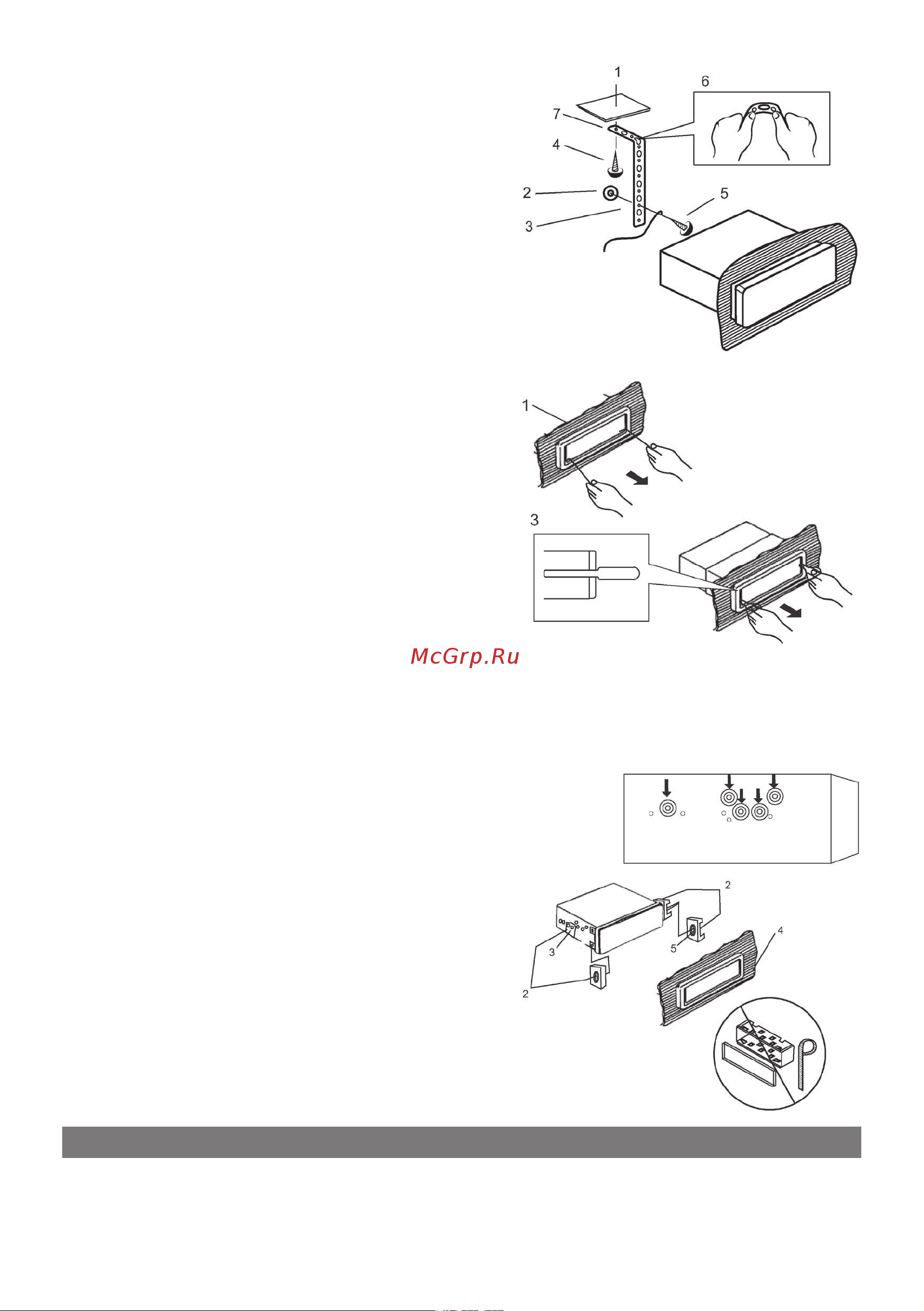

2.1 Dashboard

2.2 Nut (5mm)

2.3 Spring washer

2.4 Screw (5 x 25mm)

2.5 Screw

2.6 Strap

Be sure to use the strap to secure

the back of the unit of the place. The

strap can be bent by hand to the de-

sired angle.

2.7 Plain washer

3.1 Frame

3.2 Insert ﬁngers into the groove in the

front of frame and pull out to remove

the frame. (When re-attaching the

frame. Point the side with a groove

downwards and attach it.)

3.3 Lever

Insert the levers supplied with the

unit into the grooves at both sides

of the unit as shown in ﬁgure until

they click. Pulling the levers makes it

possible to remove the unit from the

dashboard.Installation using the screw holes on the sides of the unit.

DIN REAR-MOUNT

Fastening the unit to the factory radio mounting bracket.

1. Select a position where the screw holes of the bracket and the screw

holes as the main unit become aligned

(are ﬁtted), and tighten the screw at 2

places on each side.

Use either truss screws (5x8mm) or

depending on the shape of the screw

holes in the bracket.

2. Screw.

3. Factory radio mounting bracket

4. Dashboard or Console

5. Hook (Remove this parts)

Note: The mounting box. Outer trim

ring, and half-sleeve are not used for

method B installation.

1. Press the release button and pull-off the front panel.

Keep front panel into the case.

2. To install the front panel, insert the panel into the housing and make

HOW TO REMOVE AND INSTALL THE FRONT PANEL
