Elenberg MX-339 [19/20] Wiring diagram

CAUTIONS

• DO NOT CONNECT FRONT/REAR SPEAKERS(-) TO GROUND & COM-

MON.

• To avoid shorts in the electrical system, be sure to disconnect the bat-

tery-cable before beginning installation.

• Replace fuses only with the types stipulated on the fuse holder.

• Be sure to properly connect the color code leads, failure to do so can

cause malfunction.

• Secure the wiring with cable clamps or adhesive tape. To avoid electri-

cal shorts all unused terminals and wires should be covered with adhe-

sive tape.

• Refer to the power AMP owner’s manual when connecting a power AMP

(sold separately) to the RCA pin jack.

• Speakers connected to this unit must be high-power type possessing

maximum input SUITABLE FOR THE CAR RADIO and impedance of 4 to

8 Ohms. Connection speakers with output and/or impedance values

other than those noted here can damage the speakers.

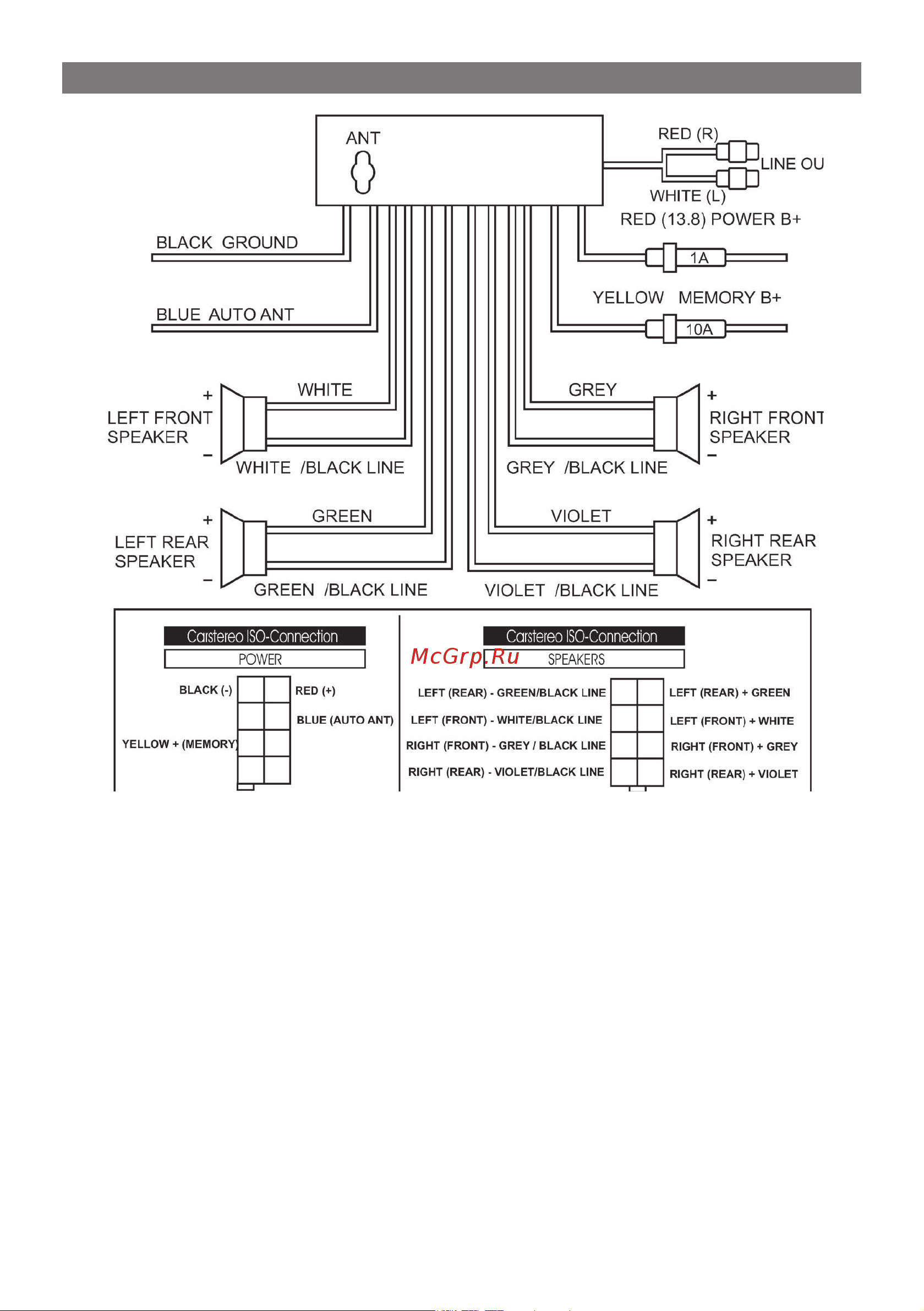

WIRING DIAGRAM
