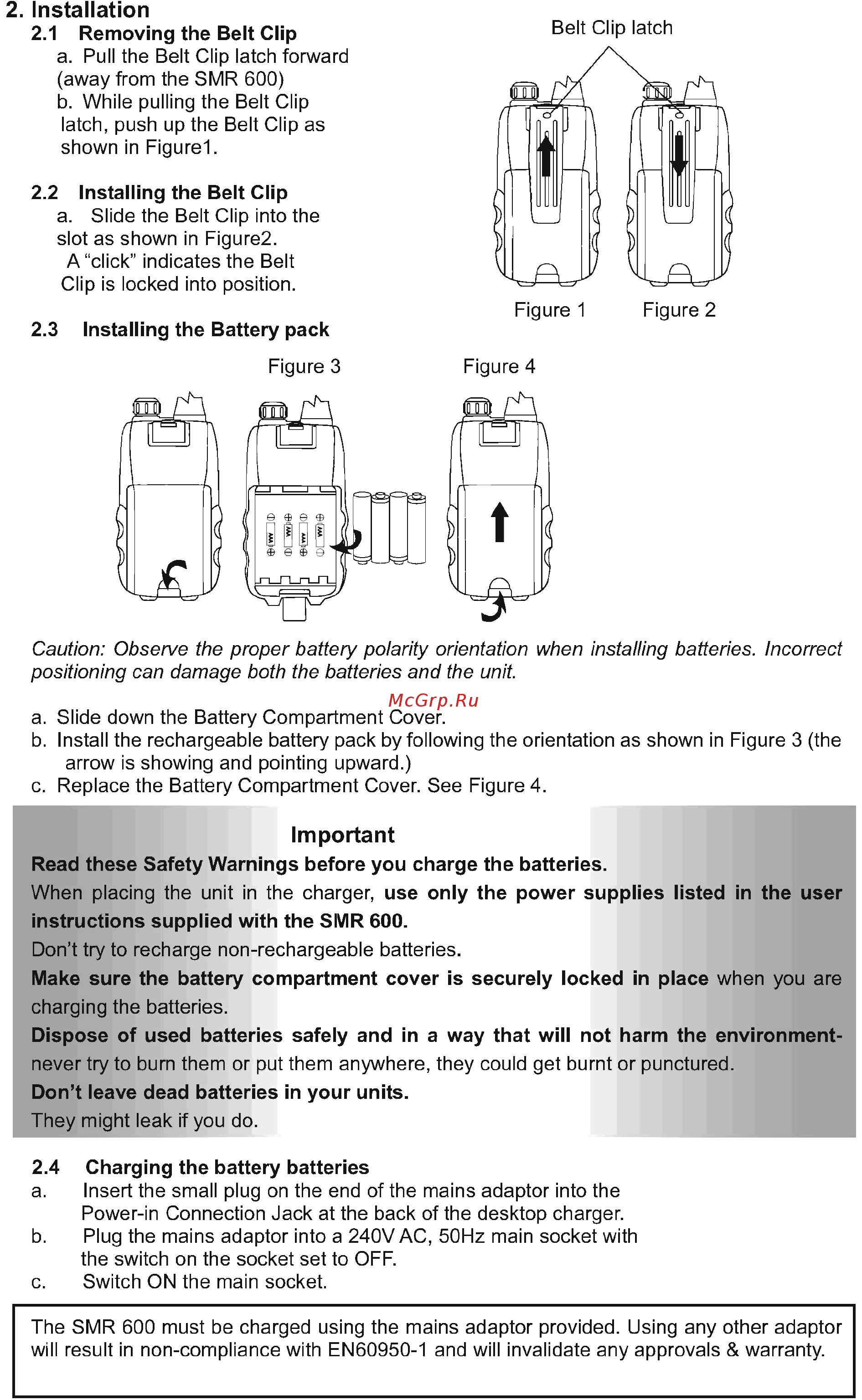

2 Installation Belt Clip latch 2 1 Removing the Belt Clip a Pull the Belt Clip latch forward away from the SMR 600 b While pulling the Belt Clip latch push up the Belt Clip as shown in Figurel 2 2 Installing the Belt Clip a Slide the Belt Clip into the slot as shown in Figure2 A click indicates the Belt Clip is locked into position Figure 1 Figure 2 2 3 Installing the Battery pack Figure 3 Figure 4 Caution Observe the proper battery polarity orientation when installing batteries Incorrect positioning can damage both the batteries and the unit a Slide down the Battery Compartment Cover b Install the rechargeable battery pack by following the orientation as shown in Figure 3 the arrow is showing and pointing upward c Replace the Battery Compartment Cover See Figure 4 Important Read these Safety Warnings before you charge the batteries When placing the unit in the charger use only the power supplies listed in the user instructions supplied with the SMR 600 Don t try to recharge non rechargeable batteries Make sure the battery compartment cover is securely locked in place when you are charging the batteries Dispose of used batteries safely and in a way that will not harm the environmentnever try to burn them or put them anywhere they could get burnt or punctured Don t leave dead batteries in your units They might leak if you do 2 4 Charging the battery batteries a Insert the small plug on the end of the mains adaptor into the Power in Connection Jack at the back of the desktop charger b Plug the mains adaptor into a 240V AC 50Hz main socket with the switch on the socket set to OFF c Switch ON the main socket The SMR 600 must be charged using the mains adaptor provided Using any other adaptor will result in non compliance with EN60950 1 and will invalidate any approvals warranty
