Zanussi ZDE 320 [23/72] Building in

Fig. 6

a) Seal

FO 0199

290

510

Fig. 5

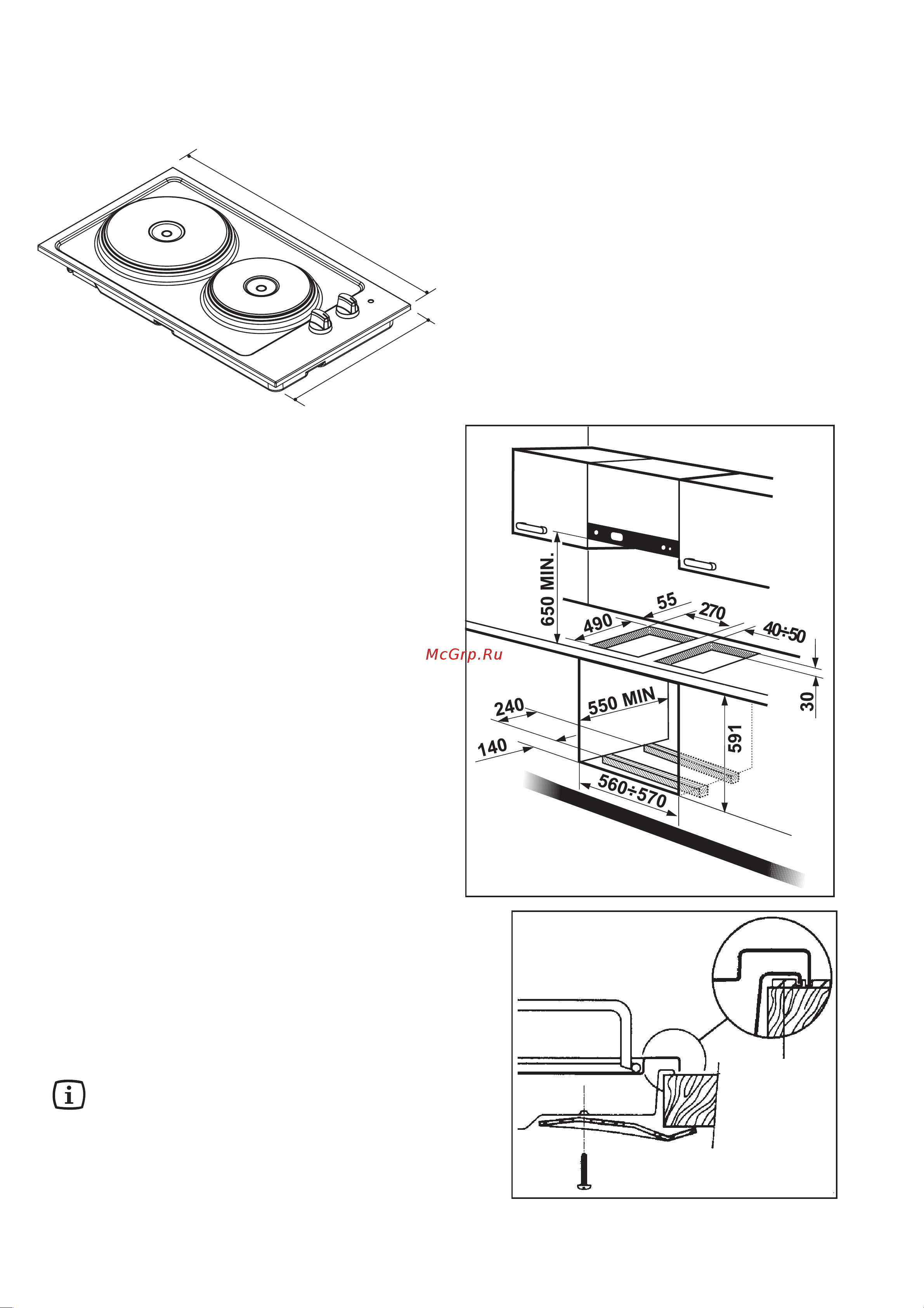

Building In

These hobs can be inserted in a built-in kitchen unit

whose depth is between 550 and 600 mm. The hobs

dimensions are shown in Fig. 4.

Dimensions are given in millimetres

Fig. 4



Installation and assembly

These hobs can be installed in a kitchen unit with an

opening for insertion whose dimensions are shown in Fig.

The edge of the cut out must have a minimum distance

from the rear wall of 55 mm.

If there are side walls, or sides of the furniture unit near

the hob, the cut out edges must have a minimum

distance of 100 mm.

Hanging forniture units or hoods must be placed at 650

mm minimum from the hob.

Carry out the building in of the hob as follows:

1. Put the relevant sealings, supplied with the hob,

on the edges of the cut out, taking care that the

sealings meet without overlapping;

2. place the hob in the cut out, taking care of its centring;

3. fix the hob with the relevant screws (Fig. 6). The

traction of the screws is able to trace the sealing, any

excess of which can then be easily removed.

If several 30cm hob are to be installed side by side into the

same cut out, an assembly kit including a support side

bracket and supplementary sealings is available at our After

Sales Centres. The relevant installation instructions are

supplied within the kit package.
