![Suzuki DF25ARS [33/91] Fig 20a transmission](/img/pdf.png)
Suzuki DF25ARS [33/91] Fig 20a transmission
![Suzuki DF25ARS [33/91] Fig 20a transmission](/views2/1965267/page33/bg21.png)
DF25A_30A_P03_015

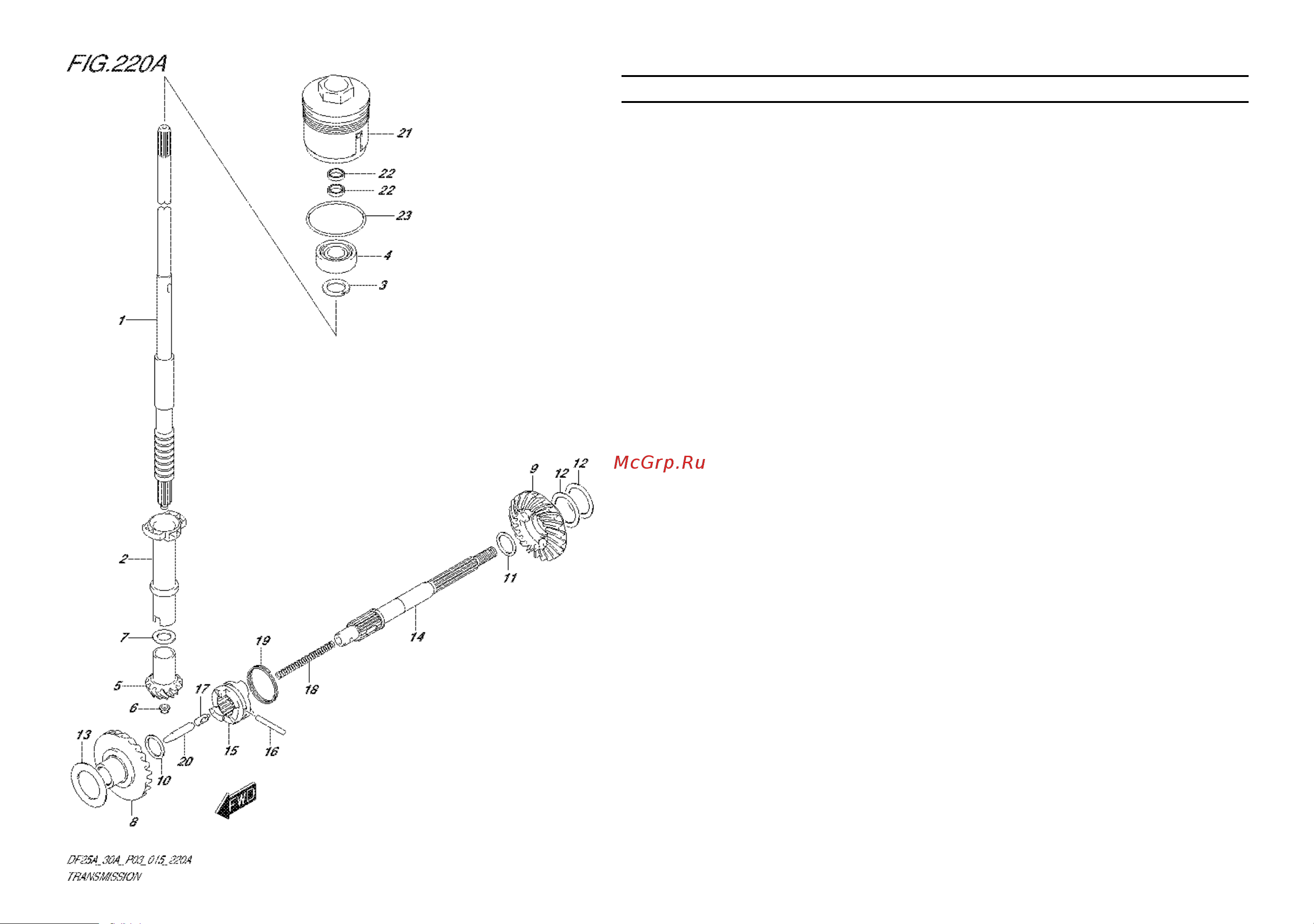

FIG.220A (1-C-8) TRANSMISSION
REF NO. PART NO. DESCRIPTION
Q'TY
REMARKS
1-1 57110-94L00 SHAFT, DRIVE (S) (NT:10) 1 W/TRANSOM(S)
1-2 57110-94L10 SHAFT, DRIVE (L) (NT:10) 1 W/TRANSOM(L)
2 57133-94L00 COLLAR, DRIVE SHAFT 1
3 09166-17005 WASHER 1
4 09265-17002 BEARING (17X40X17.25) 1
5 57311-91L00 PINION 1
6 09159-08046 NUT 1
7-1 09160-15030 WASHER (T:1.7) 1
7-2 09160-15031 WASHER (T:1.8) 1
7-3 09160-15032 WASHER (T:1.9) 1
7-4 08211-15203 WASHER (T:2.0) 1
7-5 09160-15033 WASHER (T:2.1) 1
7-6 08211-15204 WASHER (T:2.2) 1
7-7 09160-15053 WASHER (T:2.3) 1
7-8 09160-15054 WASHER (T:2.4) 1
8 57510-94L00 GEAR, FORWARD (NT:23) 1
9 57521-94L00 GEAR, REVERSE (NT:23) 1
10 09181-16008 SHIM (16X24X2) 1 FWD
11-1 09160-20068 WASHER (T:1.6) 1 REV
11-2 09160-20069 WASHER (T:1.8) 1 REV
11-3 09160-20070 WASHER (T:2.0) 1 REV
11-4 09160-20071 WASHER (T:2.2) 1 REV
11-5 09160-20072 WASHER (T:2.4) 1 REV
11-6 09160-20073 WASHER (T:2.6) 1 REV
12-1 08221-30404 SHIM (T:0.2) 2 REV
12-2 09181-30158 SHIM (T:0.5) 1 REV
12-3 09181-30162 SHIM (T:0.8) 1 REV
