Suzuki DF25ARS [48/91] Fig 36b 1 d 9 swivel bracket df25ar p03
![Suzuki DF25ARS [48/91] Fig 36b 1 d 9 swivel bracket df25ar p03](/views2/1965267/page48/bg30.png)
DF25A_30A_P03_015

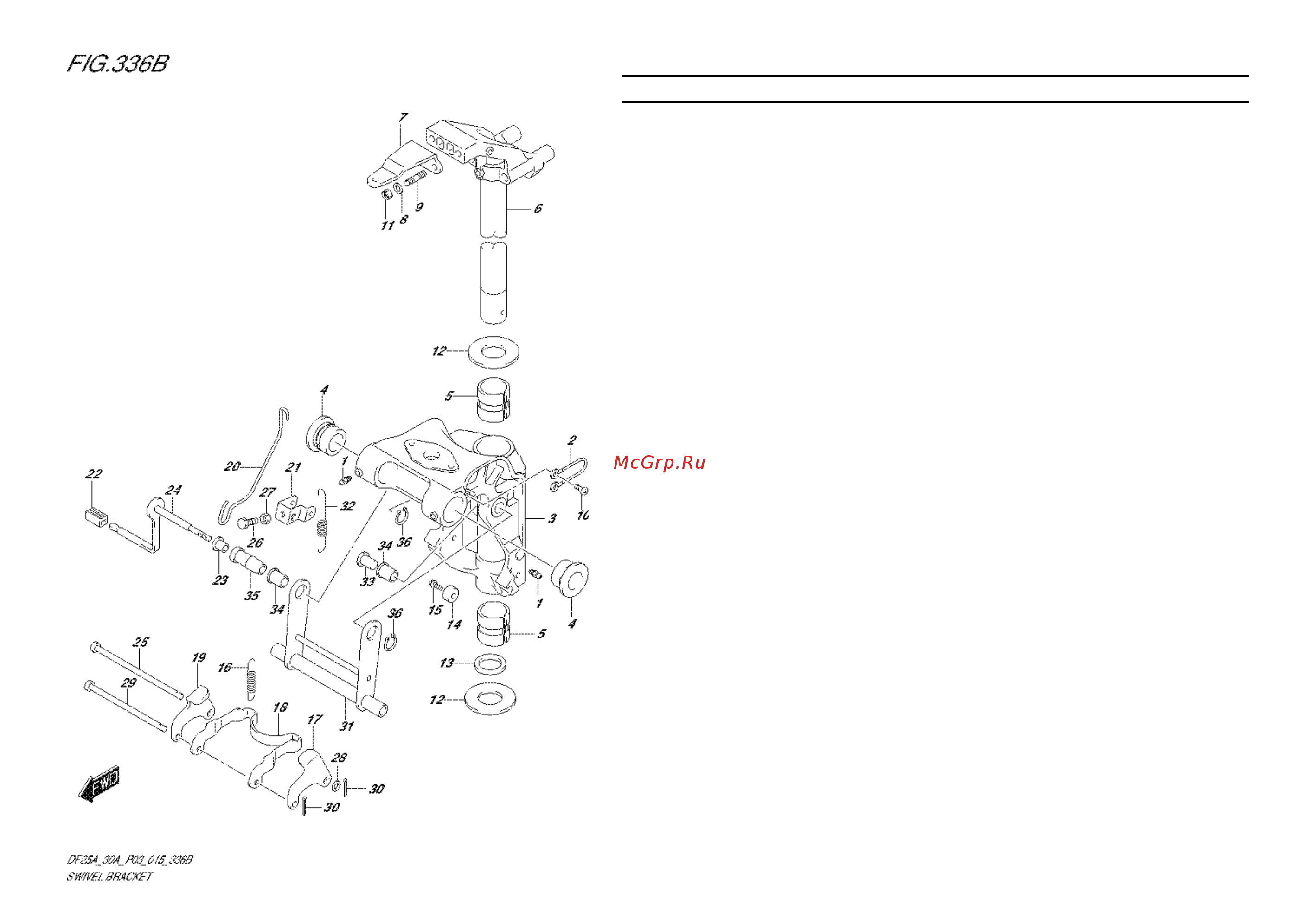

FIG.336B (1-D-9) SWIVEL BRACKET (DF25AR P03)
REF NO. PART NO. DESCRIPTION
Q'TY
REMARKS
31 45710-94L00 ARM, SHALLOW WATER DRIVE 1
32 45722-94L00 SPRING, SHALLOW WATER 1
DRIVE ARM
33 45741-94L00 PIN, SHALLOW DRIVE 1
WATER ARM
34 45751-94L00 BUSH, SHALLOW WATER 2
DRIVE ARM
35 45761-94L00 SPACER, SHALLOW WATER 1
DRIVE ARM
36 09380-12002 SNAP RING 2
