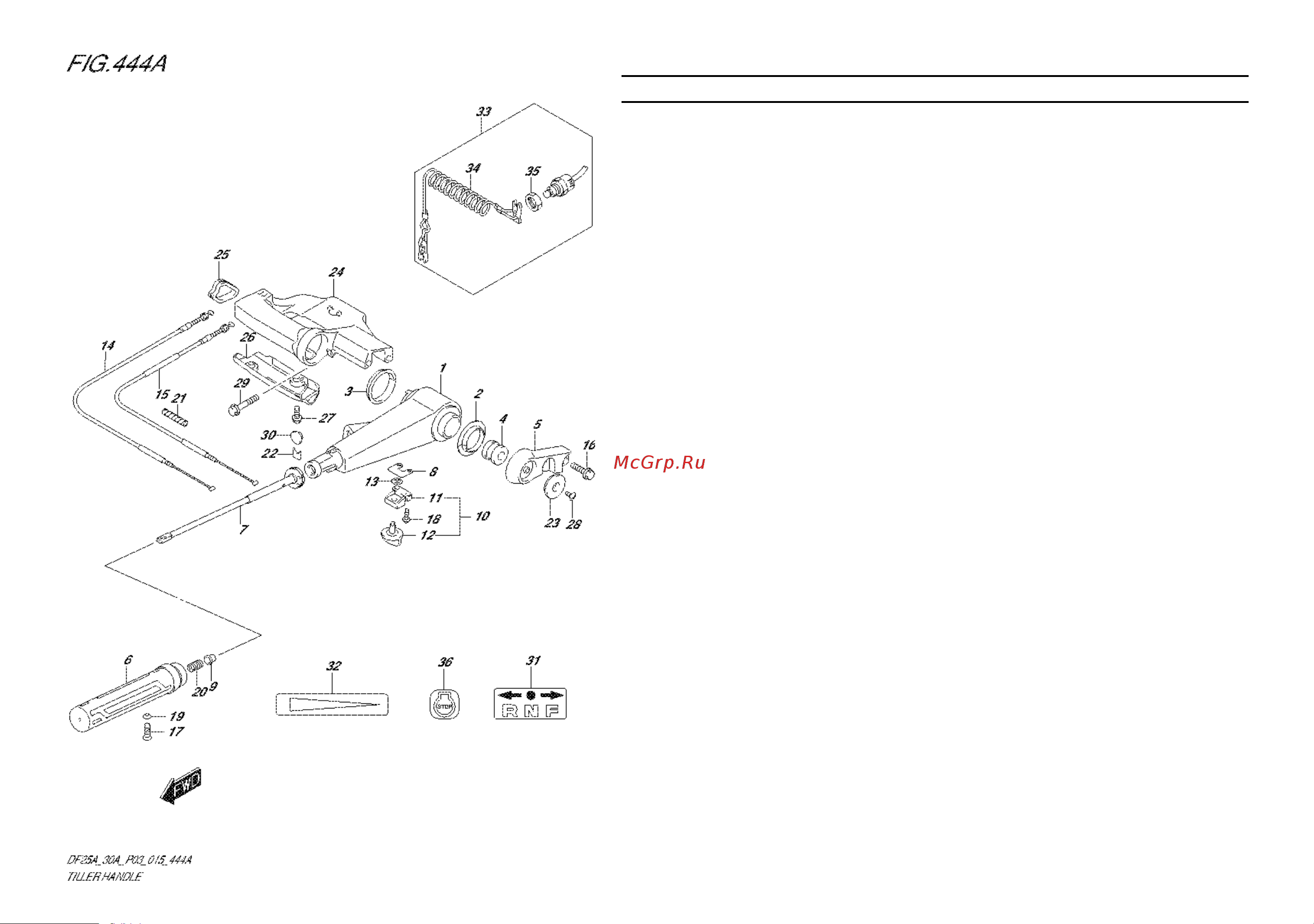

FIG.444A (1-E-6) TILLER HANDLE (DF25A P03)
REF NO. PART NO. DESCRIPTION
Q'TY
REMARKS
1 63111-89L00-0EP HANDLE, TILLER (BLACK) 1
2 63115-99J10 BUSH, TILLER HANDLE NO.1 1
3 63115-99J00 BUSH, TILLER HANDLE NO.2 1
4 63116-99J00 RUBBER, TILLER HANDLE FRICTION 1
5 63121-99J00-0EP COVER, TILLER HANDLE (BLACK) 1
6 63210-94L00 GRIP, HANDLE 1
7 63220-94L00 ROD, HANDLE 1
8 63225-94J00 PLATE, HANDLE ROD ADJUSTER 1
9 63225-93200 BUSH, HANDLE ROD 1
10 63240-94J10 ADJUSTER SET, HANDLE ROD 1
11 63241-986B0 .SUPPORT, HANDLE ROD 1
12 63244-94J00 .KNOB, THROTTLE ADJ 1
13 09148-06008 NUT 1
14 63610-94L00 CABLE ASSY, THROTTLE NO.1 1
15 63650-94L00 CABLE ASSY, THROTTLE NO.2 1
16 09116-08151 BOLT (8X30) 2
17 09126-06015 SCREW (6X23) 1
18 09136-05041 SCREW (5X20) 2
19 09163-06001 LOCK WASHER 1
20 09440-12027 SPRING 1
21 33833-91J00 TUBE, SWITCH LEAD (L:250) 1
22 63114-99J01 PLATE, WARNING INDICATOR 1
23 63122-99J00 PROTECTOR, HANDLE COVER 1
24 63131-94L00-0EP BRACKET, TILLER HANDLE (BLACK) 1
25 63133-89L00 GROMMET, TILLER HANDLE BRACKET 1
26 63134-94L00 COVER, TILLER HANDLE BRACKET 1
27 09116-08155 BOLT (8X45) 2
28 09125-05042 SCREW (5X10) 1
29 09136-05041 SCREW (5X20) 2
30 09250-12006 CAP (OD:20) 1
31 21131-94J00 MARK, CLUTCH SHIFT 1
32 63215-93110 MARK, HANDLE GRIP 1
