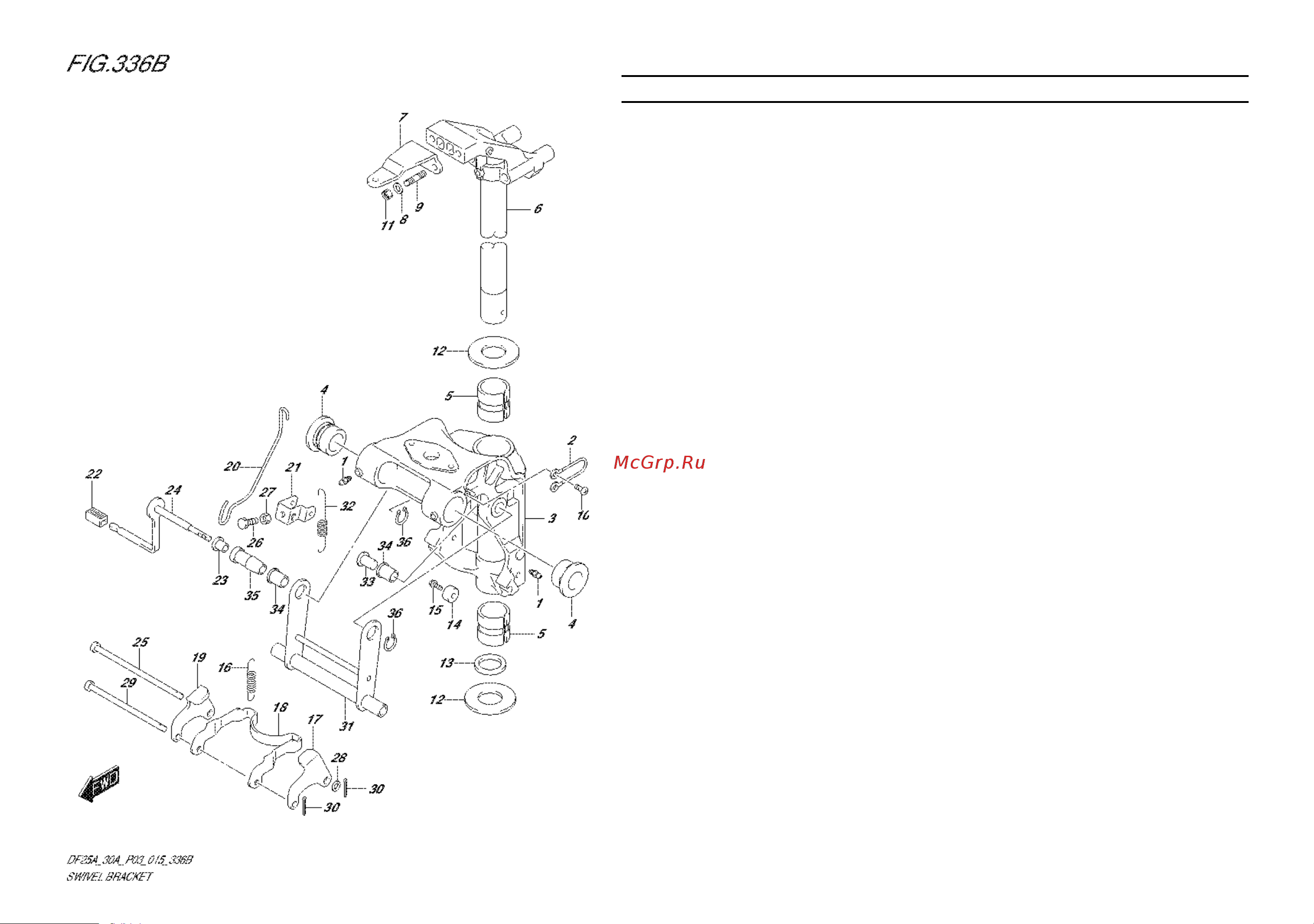

FIG.336B (1-D-8) SWIVEL BRACKET (DF25AR P03)
REF NO. PART NO. DESCRIPTION
Q'TY
REMARKS
1 22511-99011 NIPPLE, GREASE 4
2 36894-87D00 LEAD (L:165) 1
3-1 43111-94L00-0EP BRACKET, SWIVEL (S) (BLACK) 1 W/TRANSOM(S)
3-2 43111-94L10-0EP BRACKET, SWIVEL (L) (BLACK) 1 W/TRANSOM(L)
4 43211-87JL0 BUSH, SWIVEL BRACKET 2
5 43711-94L00 BUSH, STEERING 2
6-1 43750-94L00-0EP BRACKET, STEERING (S) (BLACK) 1 W/TRANSOM(S)
6-2 43750-94L10-0EP BRACKET, STEERING (L) (BLACK) 1 W/TRANSOM(L)
7 43755-94L00 ATTACHMENT, STEERING BRACKET 1
8 09160-08082 WASHER (8.5X16X1.2) 2
9 09108-08286 STUD BOLT 2
10 09125-06063 SCREW (6X10) 2
11 09159-08059 NUT 2
12 09160-30057 WASHER, PILOT SHAFT 2
13 09282-30008 SEAL, STRG UNDER BUSH 1
14-1 55321-87J00 ANODE, PROTECTION 1 W/TRANSOM(L)
14-2 55321-87J10 ANODE, MAGNESIUM 1 OPT
15 09103-06281 BOLT (6X14) 1 W/TRANSOM(L)
16 45211-94L00 SPRING, REVERSE LOCK ARM 2
17 45221-94L00 LINK, REVERSE LOCK ARM PORT 1
18 45231-94L00 ARM, REVERSE LOCK 1
19 45241-94L00 LINK, REVERSE LOCK ARM STBD 1
20 45252-94L00 LINK, RELEASE LEVER 1
21 45253-94L00 ARM, RELEASE 1
22 45255-94L00 RUBBER, RELEASE LEVER 1
23 45257-94L00 BUSH, RELEASE LEVER 1
24 45260-94L00 LEVER, RELEASE 1
25 59211-94L00 PIN, REVERSE LOCK ARM LINK 1
26 09100-06113 BOLT (6X16) 1
27 09140-06020 NUT 1
28 09160-06082 WASHER (6.5X13X1.0) 1
29 09200-06072 PIN, REVERSE LOCK ARM 1
30 09204-01002 PIN 2
