30
11 The RC unit
does not work
correctly
– obstacles between the signal receiver
and the RC unit
– RC batteries are depleted
7. AIR CONDITIONER INSTALLATION
ATTENTION!
– Carefully read the present manual before installing the equipment.
– Installation work should only be done by qualified and certified
personnel in compliance with the Electrical Installation Regulations
(PUE).
– The air conditioner should be securely earthed.
– Carefully check all pipeline and cable connections before turning
the AC on.
– Do not install the appliance in a laundry room or bathroom.
– The power cable plug should be accessible after installation of the
appliance.
– The installation of the AC may require parts not included in the scope
of supply. Such parts shall be purchased separately.
INDOOR UNIT LOCATION
– Away from heat sources, flammable gases and fumes.
– In a well-ventilated space.
– At least 1m away from wireless equipment (TV, radio, etc.).
– Mounted on a wall that can support the weight of the unit and will
not generate noise during operation.
– The distance between the floor and the indoor unit should be at least
2,3 m.

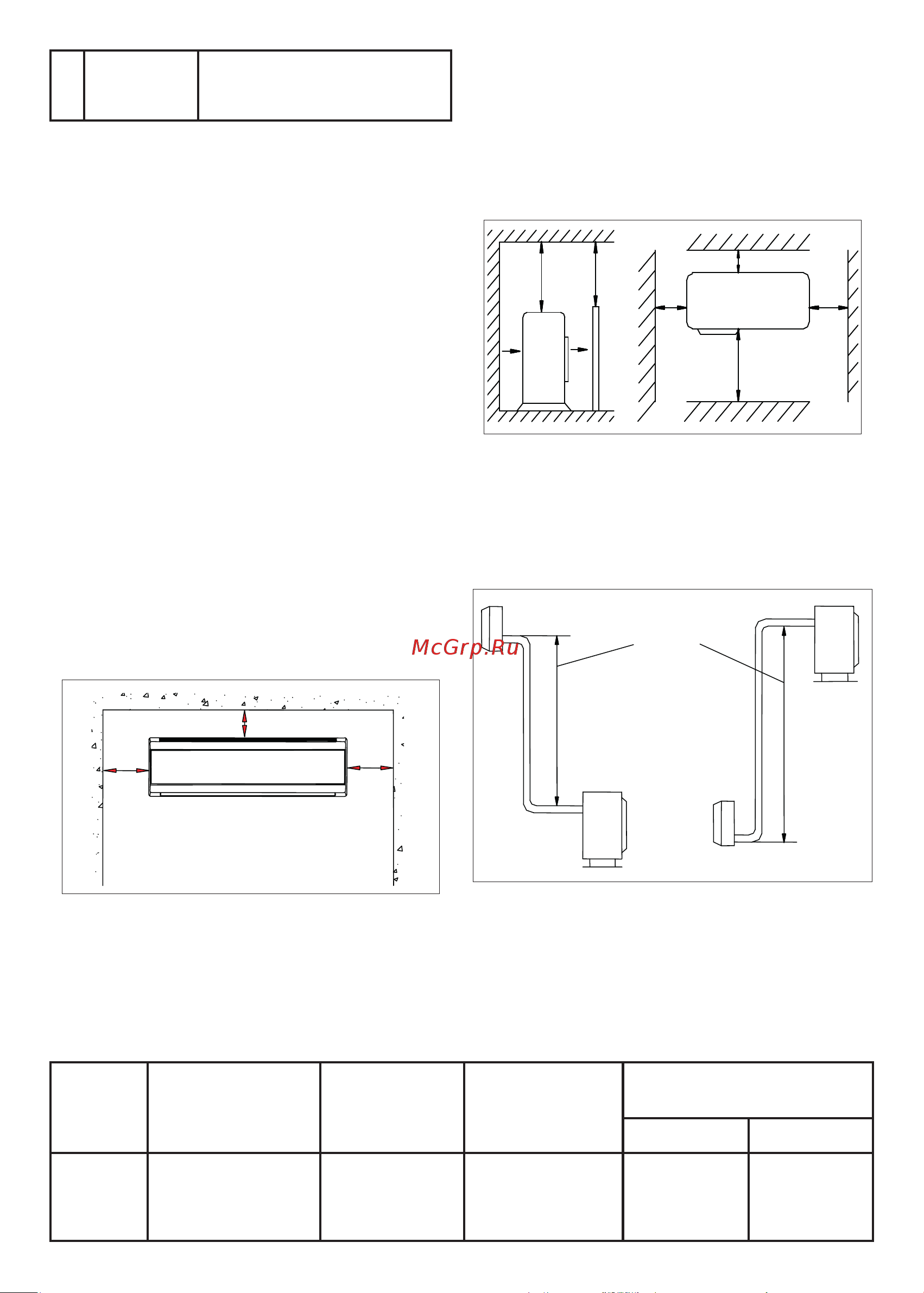

– Check the installation distances as shown in Fig. 1.
– The rear panel of the indoor unit should be located as closely to the
wall as possible.
All drawings are schematic.
15
15
15
not less than 15 cm
not less than 15 cm
not less than 15 cm
Indoor unit
Figure 1
OUTDOOR UNIT LOCATION
– Away from heat sources, flammable gases and fumes.
– In a well-ventilated space protected from rain, snow and direct
sunlight.
– Where AC operation or the water exiting from the drain tube cannot
disturb your neighbors.
– The mounting location shall be easily accessible for maintenance.
– The outdoor unit should be mounted on a stable and secure base
which will not result in increased noise or vibrations.
– To ensure high efficiency check that the front, rear, right and left
sides of the unit are free from obstructions.
– Check the installation distances as shown in Fig. 2.
Не менее 10 см
Рис. 2
Не менее
15
см
Не менее 2,3 м
заграждение
Не менее 2 м
Вход воздуха
Выход воздуха
Не менее
15
см
Не менее 10 см
Рис. 2
Не менее
15 см
Не менее 2,3 м
заграждение
Не менее 2 м
Вход воздуха
Выход воздуха
Внешний блок
Не менее
15 см
not less than 15 cm
not less than 10 cm
not less
than 2,3 m
not less than 15 cm
not less
than 2 m
air inlet
outdoor unit
air outlet
barrage
Figure 2
HEIGHT DIFFERENCE
Ensure that the mounting elevation (height) difference between the
indoor and outdoor units does not exceed 5 meters (Fig. 3).
If the pipeline length is between 7 and 15 m an additional refrigerant
charge will be required in accordance with Table 1.
Разность высот
Рис. 3
Внутренний блок
Внешний блок
Внешний блок
Внутренний блок
height difference
indoor unit
indoor unit
outdoor unit
Figure 3
Table 1
Min. Tube
length
(m)
Maximum allowable tube
length without additional
refrigerant charge
(m)
Maximum allowable
tube length
Maximum allowable
mounting height
difference between the
indoor and outdoor units
Quantity of additional refrigerant
(g/m)
< 12000 BTU/h > 18000 BTU/h
2 5
models:
7/12 - 20 m,
18/36 - 25 m
models:
7/12 - 8 m,
18/36 - 10 m
20 30
