Chapter 1. Introduction

Components

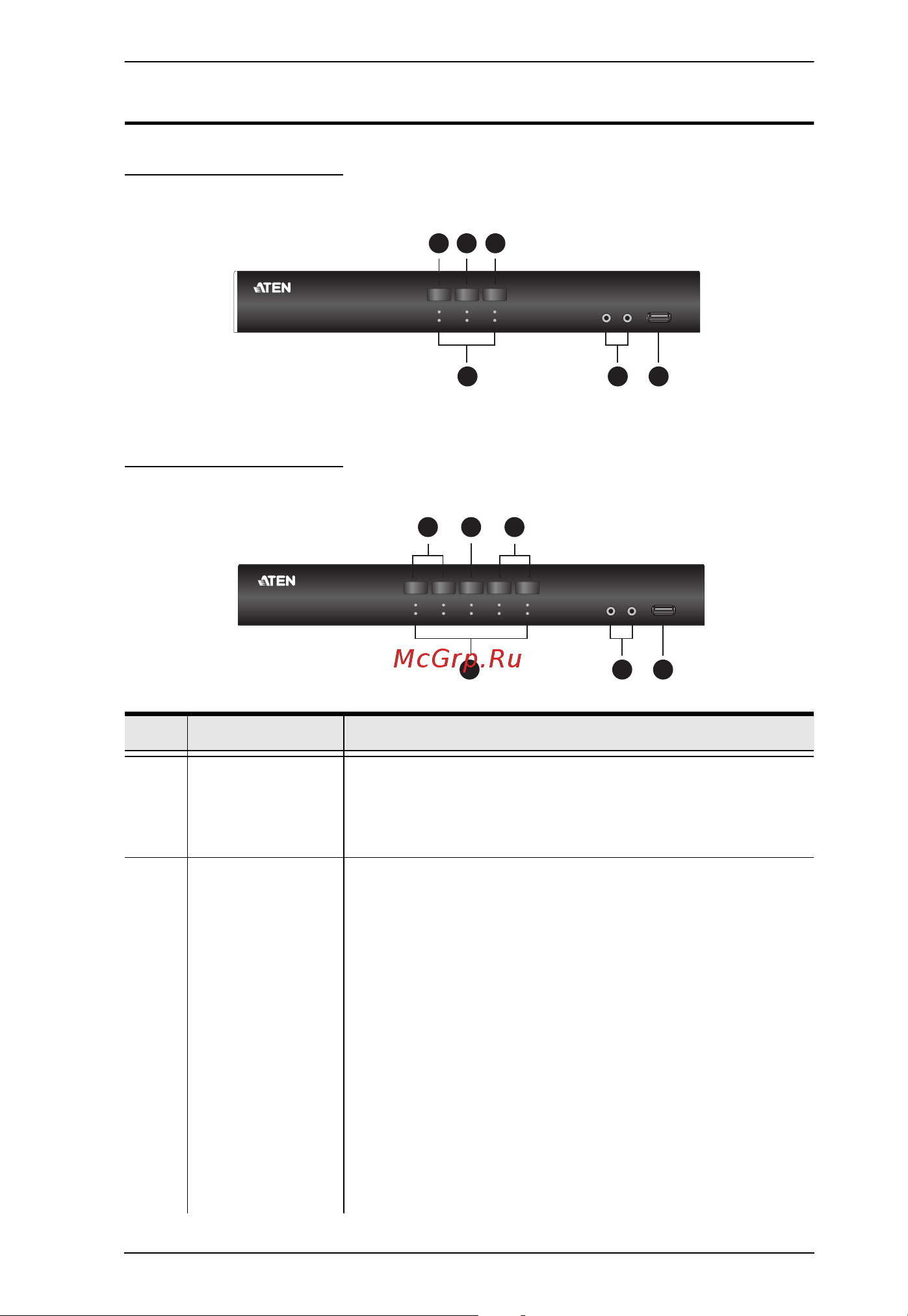

CS1842 Front View

CS1844 Front View

No. Component Description

1 mode selection

pushbutton



This pushbutton allows you to cycle through the four focus

modes – complete, KVM, audio, and USB.



Press and hold mode selection pushbutton before powering on

and to enter Firmware Upgrade Mode.

2 port selection

pushbuttons

For manual port selection (see Manual Switching, page 17):



Press a port selection pushbutton for longer than two seconds to

only bring the KVM focus to the computer attached to its corre-

sponding port.



Press a port selection pushbutton twice to bring the audio focus

to the computer attached to its corresponding port.



Press a port selection pushbutton for less than two seconds to

bring the KVM, USB hub, and audio focus to the computer

attached to its corresponding port.

Note: This function is disabled when the fast switching

mode is enabled, see Switching Mode Selection, page

31.



Press switches 1 and 2 simultaneously for 2 seconds to start

Auto Scan Mode (see Auto Scanning, page 25).



Press switches 3 and 4 simultaneously for 2 seconds to perform

a Keyboard/Mouse reset. Note: This feature is for CS1844 only.

2 1 2

4 5

2 1 2

4 5
