1. Introduction
9

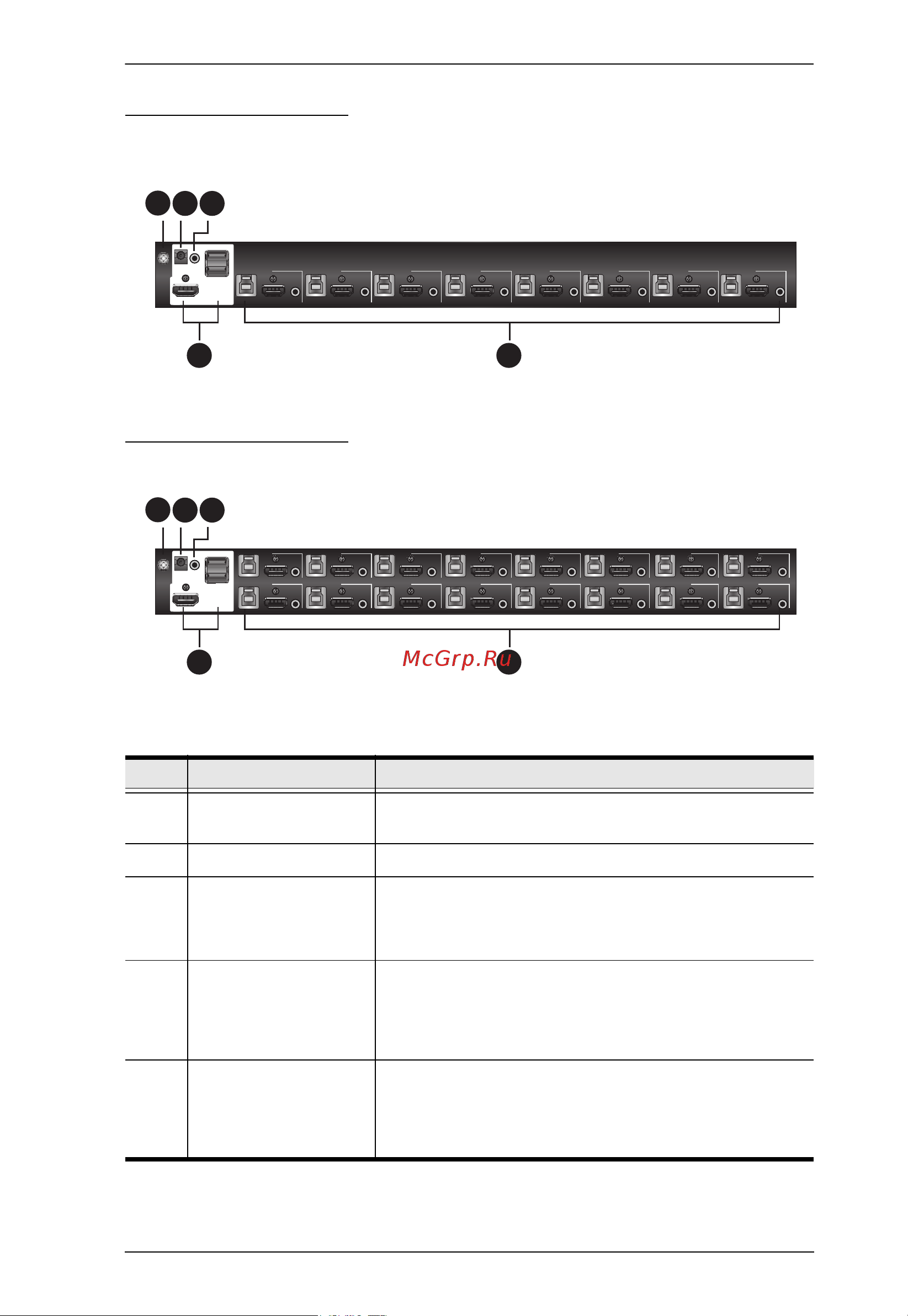

Rear View CS18208
Rear View CS18216
No. Component Description
1 grounding terminal The grounding wire used to ground the switch attaches
here.
2 power jack The power adapter cable plugs in here.
3 audio jack The cables from your main speakers plug in here.
Note: The speakers plugged into the front panel have
priority over those plugged here.
4 console port section The cables from your console HDMI monitor, USB
keyboard, USB mouse, and speakers plug in here.
Each connector is marked with an appropriate icon to
indicate itself.
5 KVM port sections The cables that link the switch to your computers plug
in here. Each KVM port section is comprised of a
speaker jack, a USB type B socket, and HDMI
connector.
2
1
3
4 5
32
1
4 5
