Chapter 2. Hardware Setup

c) After all the stations are up, power on the computers.

When installing more than one KVM switches:

 The maximum distance between the KH1508A / KH1516A/ KH1532A

and the last switch in the daisy chain cannot exceed 100 meters, regardless

of the number of switches in the daisy chain.

 The maximum distance between any two KVM switches in the daisy chain

cannot exceed 15 meters.

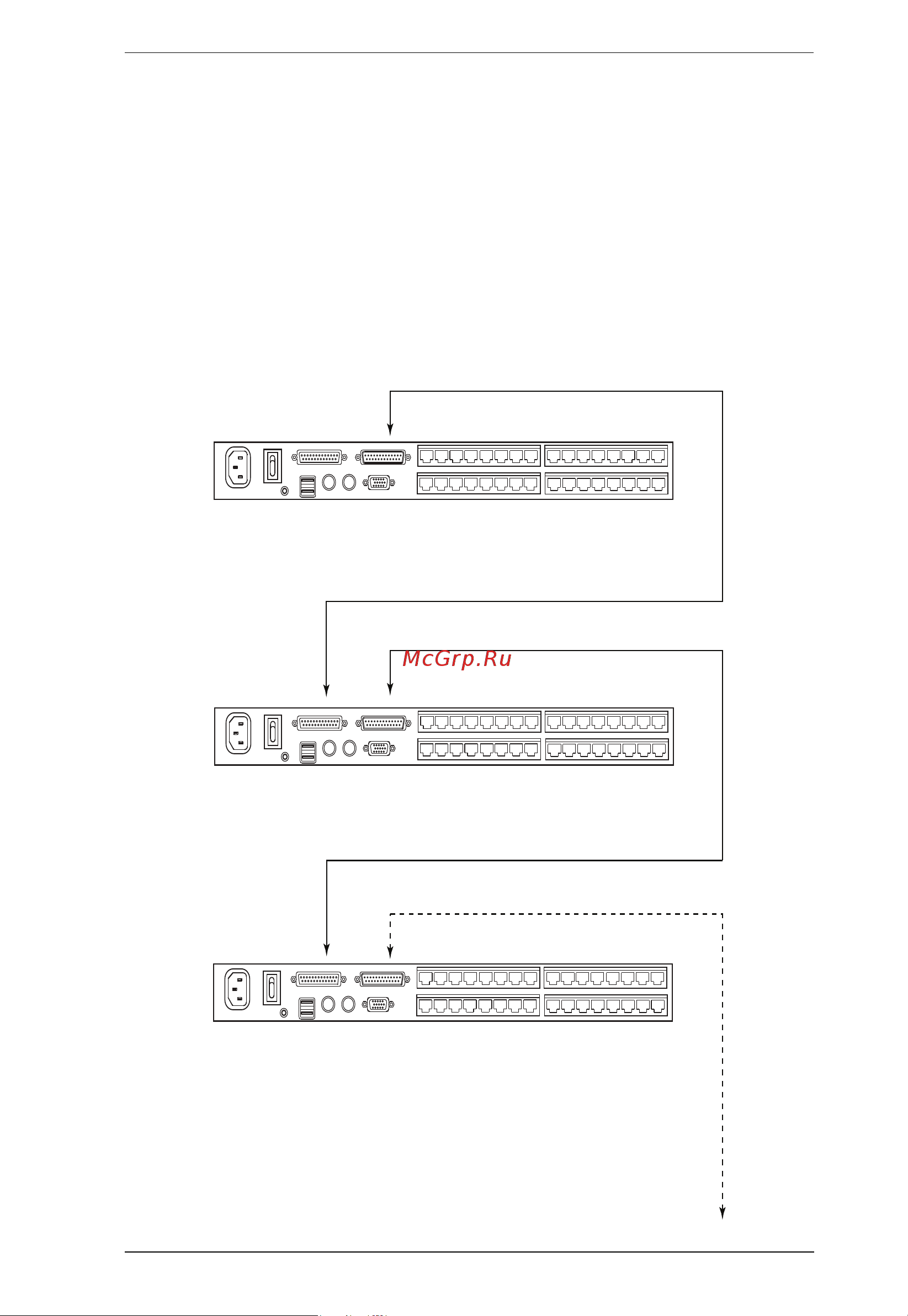

Daisy Chain Installation Diagram
