KVM over IP User Manual
150
Port Level
Port Properties

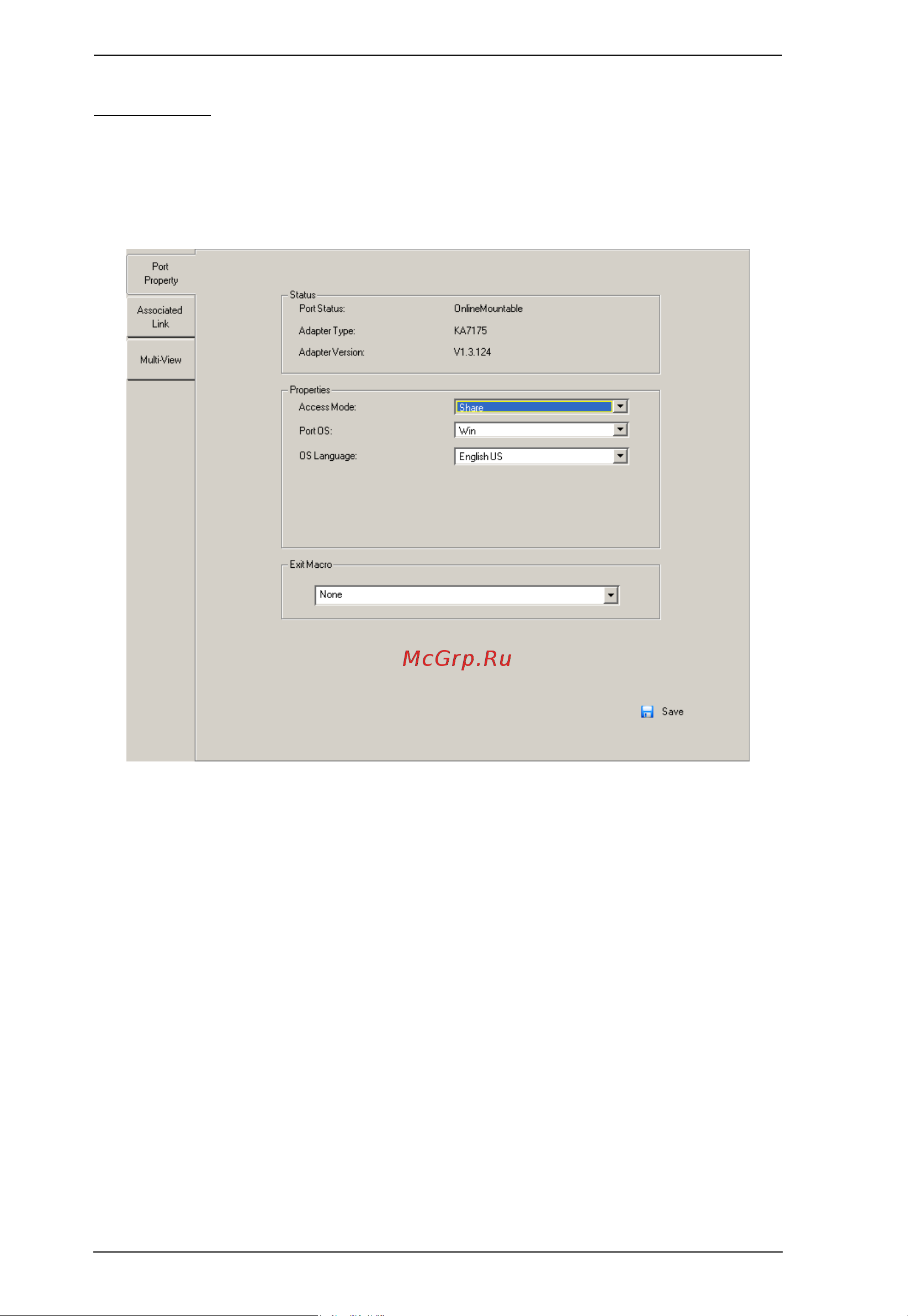

When a port is selected in the Sidebar, the Port Properties page looks similar to
the one below:
The Status panel provides information as to whether or not the port is
online or offline; the Adapter cable used to connect the server (or other
device) to the port; and the Adapter’s firmware level.
The Properties panel allows you to make configuration settings for the
selected port. An explanation of the Port Properties configuration fields is
given on the next page, please refer to the table on page 151 for further
details.
The Exit Macro panel contains a drop-down listbox of user created System
macros. You can select a macro from the list that will execute when
exiting the remote server. See System Macros, page 84 for details on
creating exit macros.
