Aten EC1000 [12/16] Set snmp parameters

. MIB Browser

Set SNMP Parameters

1. In the Address field, input the DUT IP address.

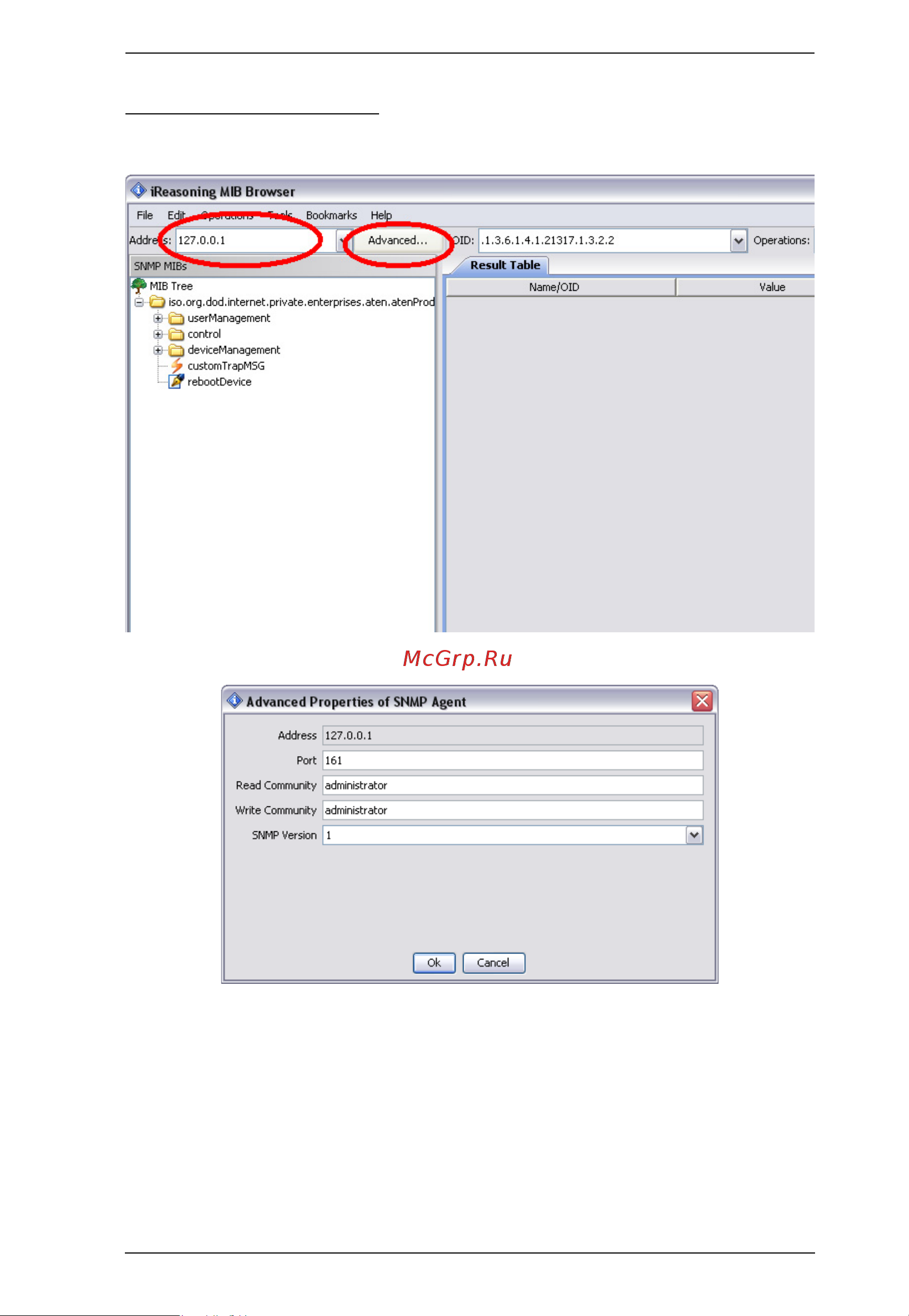

2. Then click Advanced to open the SNMP settings window, as show below:

3. Enter values for the Port, Read Community, and Write Community fields

(the example above shows the default settings). Then, select the SNMP

version you want to configure from the dropdown menu. For v1 and v2,

only the above fields are necessary. Click OK to save the settings.

4. If you select version 3 from the dropdown menu, a further SNMPv3

window containing more parameters appears, as shown below:
