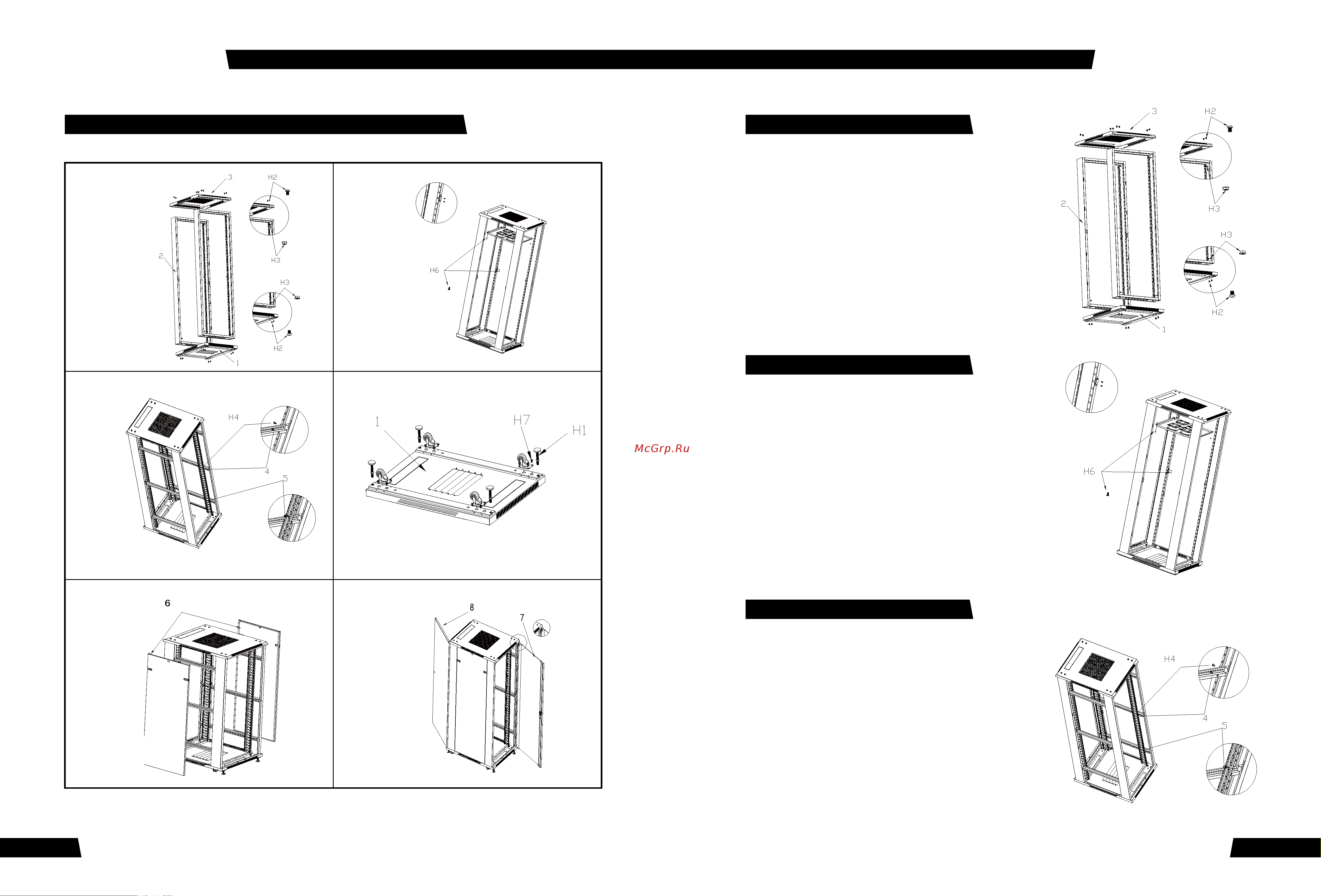

Step 1:

Step 2:

Step 3:

Use M8*12 round head inner hex screws & M8 ange

nuts

to connect the frames, top & bottom.

Note A: Ensure that the frame with earthing kits is

at the right side, earthing kits is at bottom when

assemble.

NoteB: Ensure that the fan-unit at top & cable entry

at bottom is close to the rear side.

Refer the left picture.

Use M4*8 self-tapping screw to x the fan unit to the

top tray and side panel limit stops to the four posts of

the two frames.

Refer the left picture.

Install the horizontal supports to the vertical supports

with M6x12 Screws rst.Then Install the vertical

supports to the horizontal supports.

Note: The distance between the front and rear

vertical supports can be adjusted according to your

equipment installation depth.

Refer the left picture.

Step1 Step2

Step3 Step4

Step5 Step6
