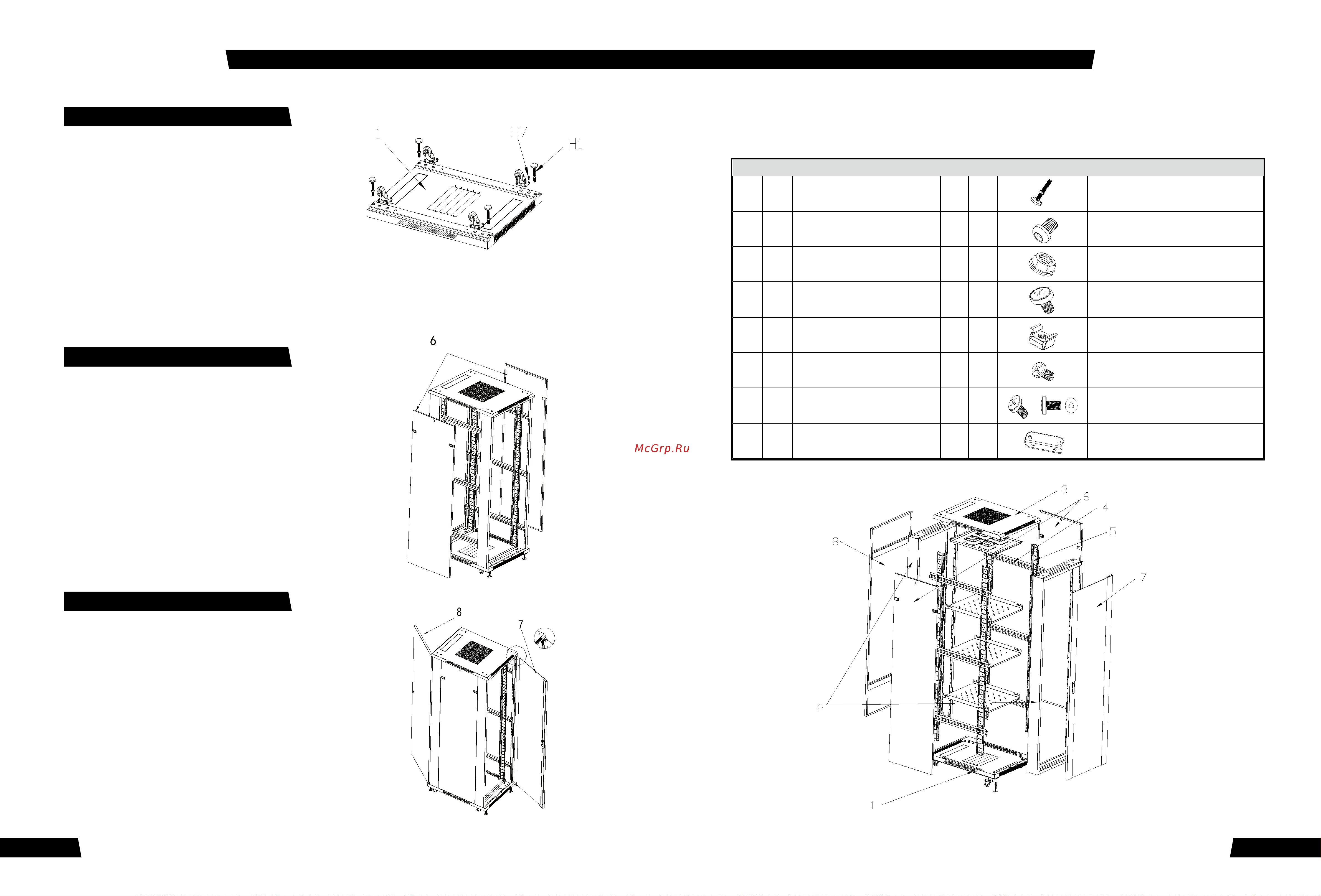

Component List (Knock Down)

REV

QTY

COMPONENT

BOTTOM TRA

FRAME

TOP TRAY

HORIZONTAL SUPPORT

VERTICAL SUPPORT

SIDE PANEL

REAR DOOR

FRONT DOOR

M12*L90 Leveling Leg

M8*12 Round Head Inner Hex Scew

M8 Flange Nut

M6*12 Screw

M6 Cage Nut

M4*8 Self-tapping Screw

M6*12 Tapping Screw

Side Panel Limit Stop

SCREWS AND NUTS

Step 4:

Step 5:

Step 6:

Install the castors to the four corners at bottom by

M6*12 self-tapping screws.

Install the M12*L90 Leveling Legs also to each corner.

Refer the left upward view picture.

Install side panels, adjust the diagonal dimension of

cabinets.

Remark: because the cabinets is disassembled design,

after assemble, please check and adjust the diagonal

dimension, ensure the space between doors are

acceptable, doors could open and close well.

Refer the left picture.

Install front door, rear door.

Put the door block to the hole of the bottom of frame,

and set the front door/rear door. Fix the top of front/

rear door by bolts and top of frame.

Refer the left picture.
