Aten SN3401P [73/111] Chapter 6

Chapter 6

Port Operating Modes

Overview

To cover a broad range of serial applications, the Secure Device Server’s

COM port supports several port operating modes.

These include Real COM, TCP Server & Client, UDP, Serial Tunneling

Server & Client, and Modbus Gateway modes for serial-to-Ethernet

connectivity, Console Management, and Console Management Direct for

device control, as well as applications that require COM ports, serial

tunneling, or where TCP/UDP socket functionality is needed.

Note: The maximum number of simultaneous connections to any one serial

port is 16.

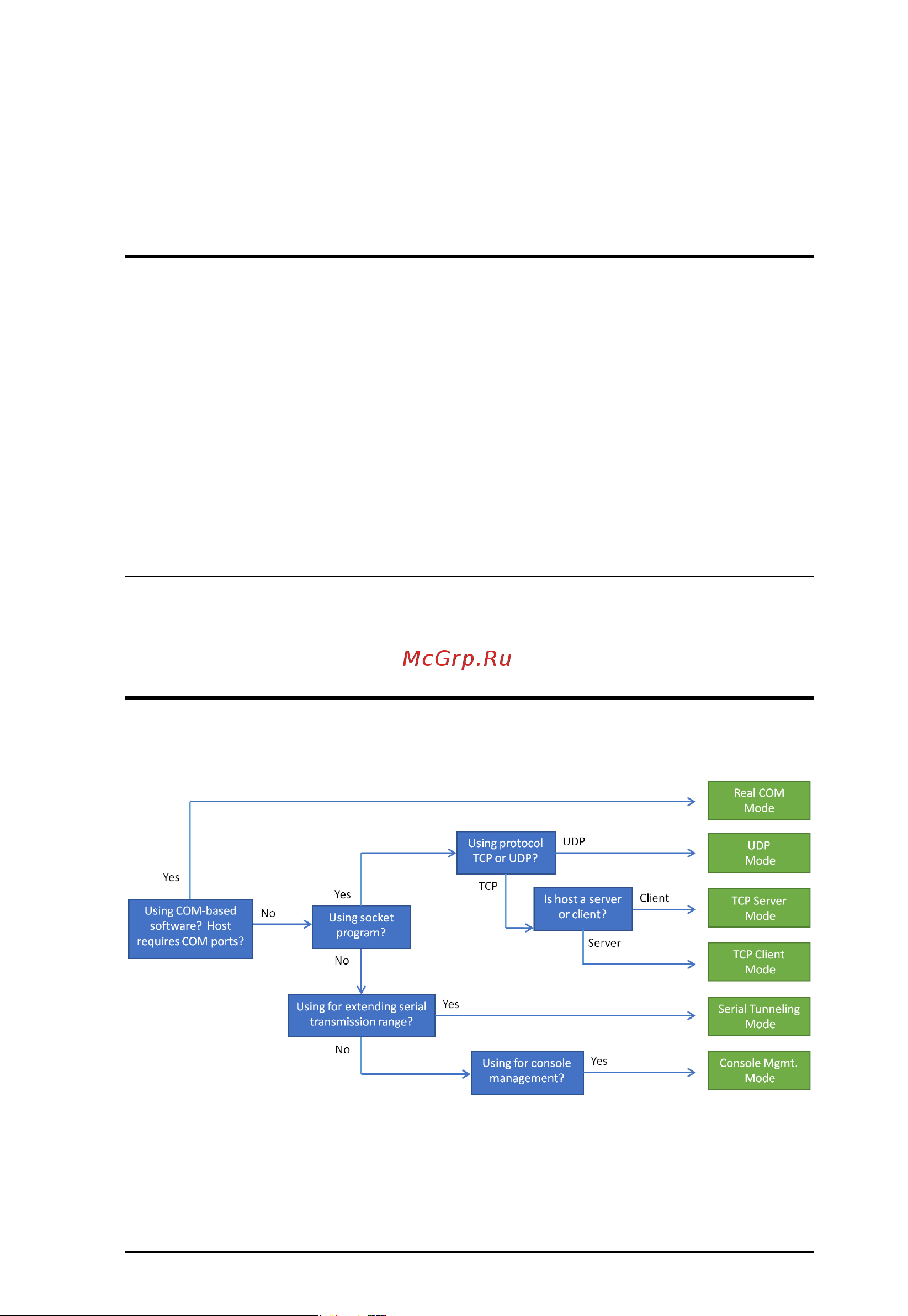

Selecting Operating Mode

The following are some of the questions to consider when selecting the

operating mode.
