SNR UPS-ONT-010-BXL31 [8/34] Bypass breaker

Product Description

High Performance 10-20k UPS

USB(option

)

EPO

RS232

Fan

Parallel

(option)

Intelligent

slot

Reserved

Bypass

breaker

Input

breaker

Terminal

cover

Ground

Cable

protector

Cold

start

button

15/20KVA

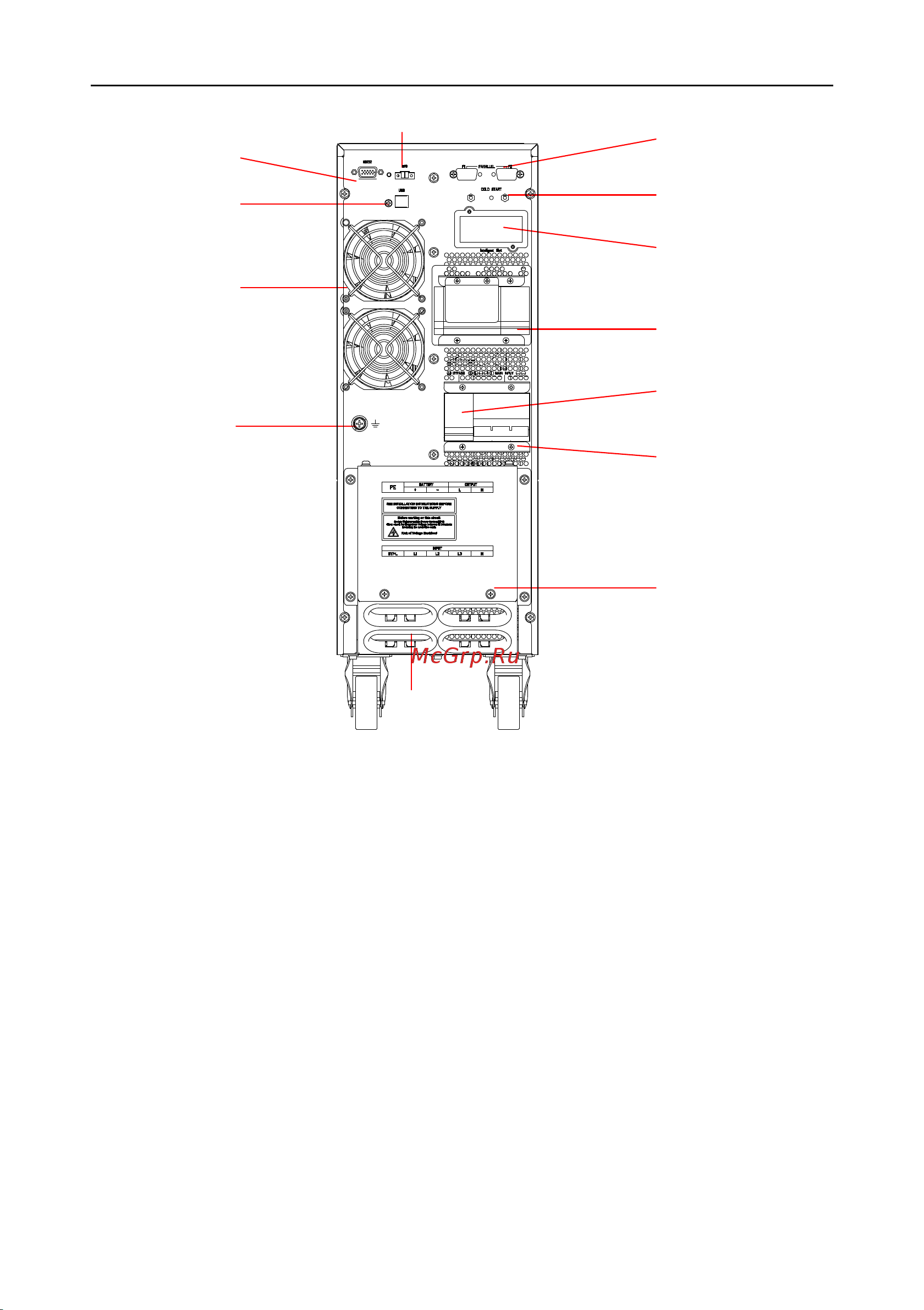

Fig 1- 2: Rear View

As shown in Fig 1-2, the rear panel provides the following compoentes and function:

 USB: B type, used to connect monitoring software

 EPO: NC

 Parallel port: option

 Reserved: reserved for customer function, such as manual bypass, battery breaker, socket and

so on

 Terminal cover

 Input breaker: surge proection

 Bypass breaker: surge proection

 Cable proetector: cable entry, fix cables, safety

 Cold start: start UPS from battery

 Fans: intelligent fan speed control
