SOLID STATE LOGIC Alpha Link MX 4-16 IO Bundle [12/52] Front panel
![SOLID STATE LOGIC Alpha Link MX 4-16 IO Bundle [12/52] Front panel](/views2/1989593/page12/bgc.png)
6

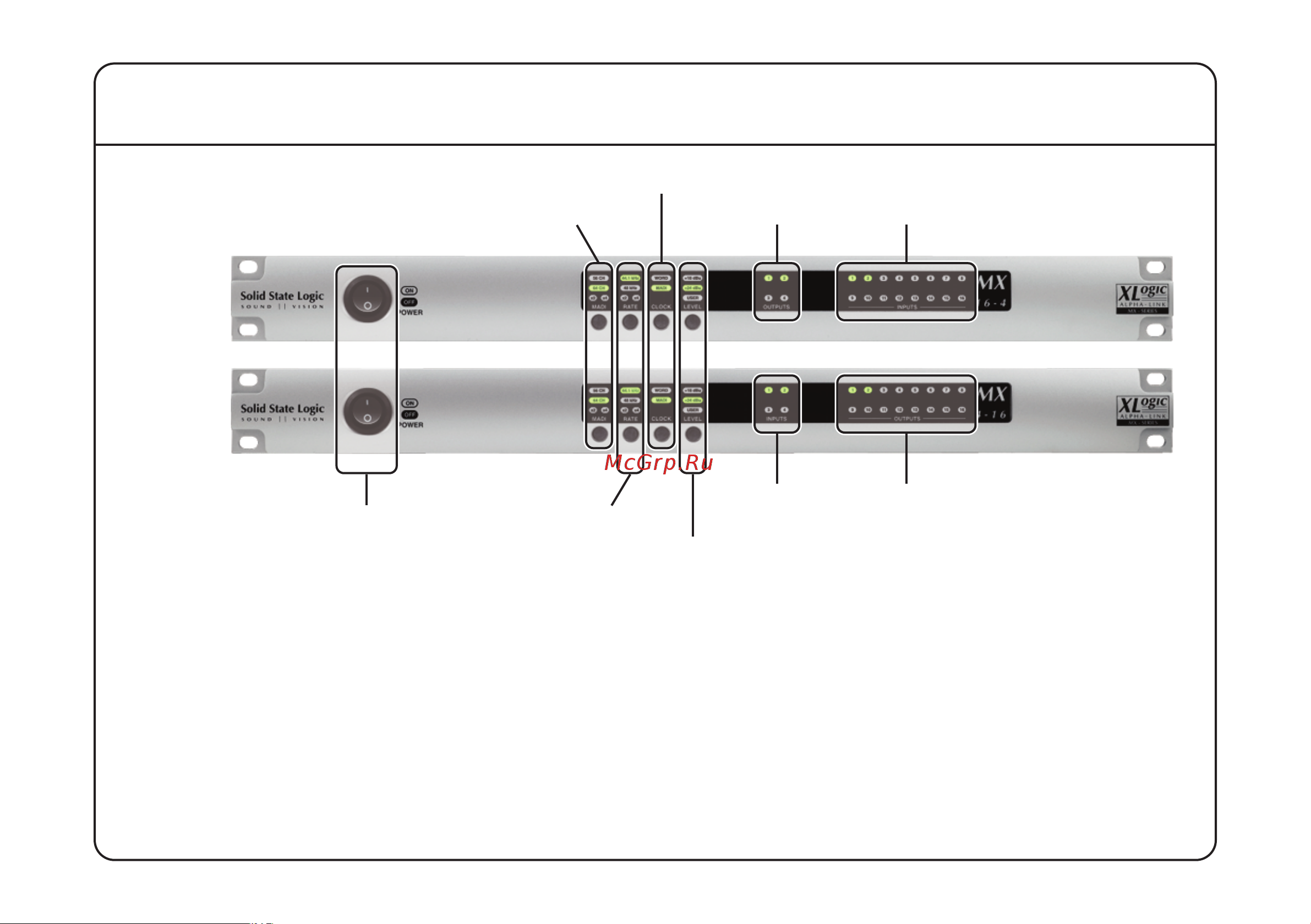

Front Panel
Switches
Power: Applies power to the MX 16 unit.
MADI Mode: Sets/indicates the number of MADI channels and frame pattern to match the connected system.
Sample Rate: Sets/indicates the sample rate to match the connected system.
Clock Source: Selects the required clock source. Valid sources are MADI, external Wordclock or Internal.
Analogue Level: Selects between 0dB FS = +24dBu, +18dBu or user-defined levels between +14dBu and +22dBu.
Power Switch
Alpha-Link
MX 16-4
Alpha-Link
MX 4-16
Input
Meters
Output
Meters
Input
Meters
Output
Meters
Clock Source
Analogue Level
MADI Mode
Sample Rate
